Siemens HMI Touch Panel 6AV6648-0CC11-3AX0
Siemens
Siemens HMI Touch Panel 6AV6648-0CC11-3AX0
['Home', 'HMI Panels', 'Siemens', 'Smart 700 IE V3'] Need Siemens 6AV6648-0CC11-3AX0? HMI Touch Panel for SIMATIC S7-20…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6AV6648-0CC11-3AX0 |
| Official Product Name | SIMATIC HMI Smart 700 IE V3 |
| Applicable System | SIMATIC S7-200 SMART / S7-200 controllers |
| Product Type | HMI Touch Panel |
| Equivalent Standard | CE certified |
| Product Status | Spare part (product cancellation phase-out) |
| Touch type | Resistive (single touch) |
| Supply voltage | 24 V DC (19.2 - 28.8 V) |
| Interfaces | Ethernet RJ45, RS422/485, USB 2.0 host Type A |
| Front protection | IP65 (when installed) |
| Operating temperature | 0 to +50 deg C |
| Net weight | 0.963 kg |
| Configuration software | WinCC flexible SMART V3 |
| Country of origin | Available on request |
| Display | 7 in widescreen TFT, 65,536 colors, 800x480 px |
Product Description

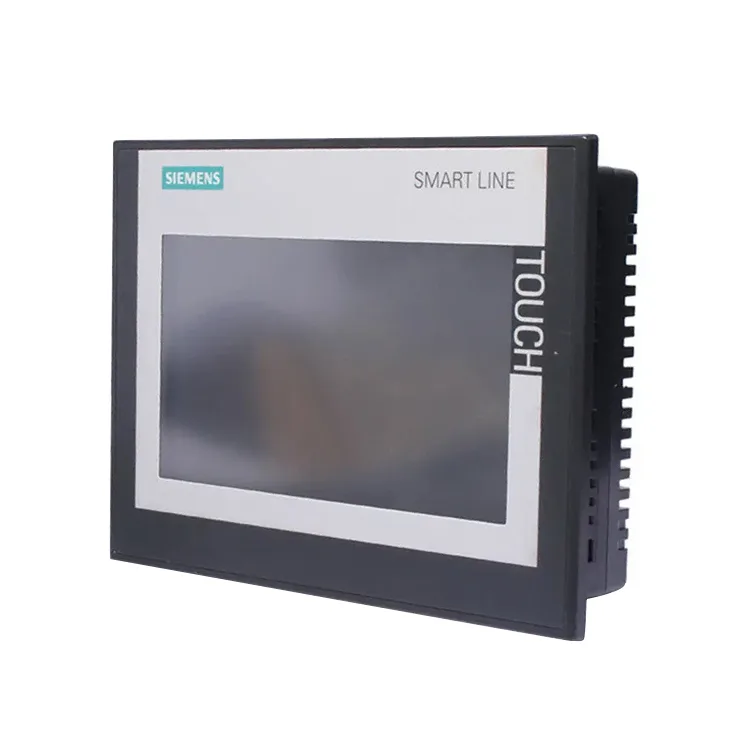

Configured with WinCC flexible SMART, it connects natively to S7-200 and S7-200 SMART controllers via Ethernet or RS422/485. The Siemens 6AV6648-0CC11-3AX0 is a SIMATIC HMI Smart 700 IE V3 operator panel, a 7-inch widescreen TFT touch device in the Smart Line series.
Basic Product Information
- Resistive touch operation optimized for industrial use
- Built-in RJ45 Ethernet and RS422/485 interfaces plus USB host (Type A)
- Hardware real-time clock with retentive backup
- Configured with WinCC flexible SMART engineering software
- 7-inch widescreen TFT display, 65,536 colors, 800x480 resolution
Technical Specifications
Version & Model Difference
['The Smart 700 IE V3 (this 6AV6648-0CC11-3AX0) is the 7-inch member of the Smart Line V3 family.', 'It is superseded in new designs by later Smart Line generations but remains widely used as a spare part for existing S7-200 SMART lines.']
Application Scenarios
- Operator visualization on packaging and textile machinery
- Small production lines and machine-level HMI
- Retrofit and spare-part replacement for S7-200 SMART systems
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
Which PLCs work with the 6AV6648-0CC11-3AX0?
It connects via Ethernet or RS422/485 to Siemens S7-200 SMART, S7-200 and LOGO! 0BA7 controllers.
What software configures this HMI?
The panel is configured with WinCC flexible SMART V3; it does not run on TIA Portal.
What are the power and protection ratings?
It runs on 24 V DC (19.2-28.8 V) with an IP65 front bezel and 0 to 50 deg C operating range.
Is this HMI still in production?
Siemens lists it as a spare part in product cancellation status; it remains available for service and retrofit use.
