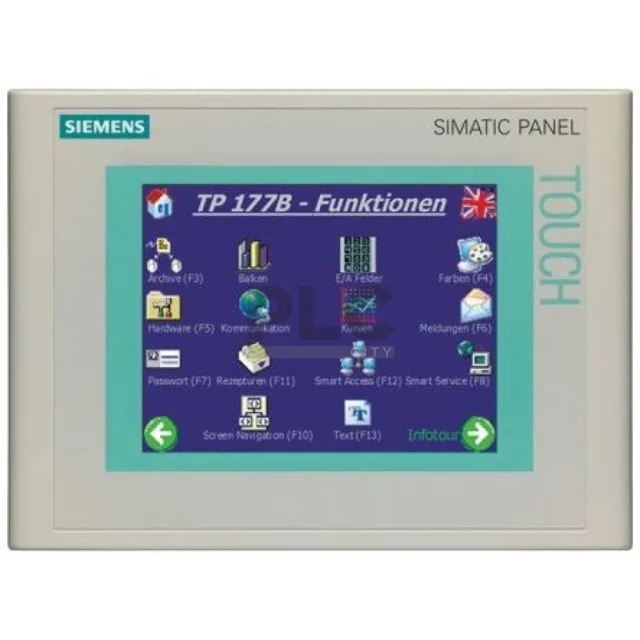

Siemens HMI Touch Panel 6AV6642-0BA01-1AX1
Siemens 6AV6642-0BA01-1AX1 HMI Touch Panel. For SIMATIC S7-1200 / S7-300 / S7-400 HMI networks. Supplied with full traceability and documentation. Get a quote. …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6AV6642-0BA01-1AX1 |
| Official Product Name | SIMATIC TP 177B 6" PN/DP Color Touch Panel |
| Applicable System | SIMATIC S7-1200 / S7-300 / S7-400 HMI networks |
| Product Type | HMI Touch Panel (Operator Interface) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock (spare part) |
| Touchscreen | analog-resistive |
| Processor | ARM 200 MHz |
| Operating system | Windows CE |
| User memory | 2048 kB |
| Supply voltage | 24 V DC (19.2–28.8 V) |
| Rated current | 0.24 A |
| Interfaces | 1× Ethernet RJ45 (PROFINET IO), 1× RS422, 1× RS485, 1× USB, MMC slot, printer |
| Protocols | PROFINET IO, PROFIBUS DP, MPI, TCP/IP, EtherNet/IP, MODBUS |
| Max transmission rate | 12 Mbit/s (PROFIBUS DP) |
| IP rating | IP65 front / IP20 rear |
| Mounting | panel, vertical ±35° |
| Operating temperature | 0 to +50 °C |
| Backlight MTBF | 50,000 h @ 25 °C |
| Certifications | CE, UL, cULus, FM Cl. I Div.2, ATEX Z2/22, DNV/GL/ABS/BV/LRS |
| Net weight | 1.037 kg |
| Display | 5.7" STN color LCD, 320×240 px, 256 colors |
Product Description
Its 5.7-inch STN color display renders 256 colors at 320×240 pixels behind an analog-resistive touchscreen, driven by a 200 MHz ARM processor running Windows CE. Onboard Ethernet (PROFINET IO) plus PROFIBUS DP and MPI let it bridge current and legacy SIMATIC PLC networks, with USB, RS422/RS485 and an MMC slot for project storage. Rated IP65 at the front and configured in WinCC flexible or TIA Portal, it is a compact, rugged HMI for demanding industrial panels. The Siemens 6AV6642-0BA01-1AX1 is a SIMATIC TP 177B 6-inch PN/DP operator panel for machine-level visualization and control.
Basic Product Information
- PROFINET IO (RJ45 10/100) plus PROFIBUS DP / MPI for both current and legacy PLCs
- ARM 200 MHz processor, Windows CE and 2 MB user memory for local project storage
- IP65 front / IP20 rear, NEMA 4x front rating, panel-mount with vertical ±35° tilt
- Configured with WinCC flexible 2005+ or WinCC Comfort/Advanced/Professional (TIA Portal)
- USB, RS422/RS485, printer interface and MMC slot for flexible connectivity
- 5.7" STN color display at 320×240 px with 256 colors and an analog-resistive touchscreen
Technical Specifications
Version & Model Difference
Application Scenarios
- Machine-level visualization and operator control
- Packaging, conveying and material-handling HMI
- Process control panels and OEM equipment
- Retrofit HMI for existing S7-300 / S7-400 production lines
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
Which PLCs work with the TP 177B 6AV6642-0BA01-1AX1?
S7-1200, S7-300 and S7-400 over PROFINET IO, PROFIBUS DP or MPI; S7-1500 is not supported.
What software configures it?
WinCC flexible Compact 2005 or higher, or WinCC Comfort/Advanced/Professional in TIA Portal.
What are the display specifications?
A 5.7" STN color LCD at 320×240 px with 256 colors and a resistive touchscreen.
Is this panel still current?
It is in 'Product Cancellation' lifecycle as a spare part; successors are the TP700/TP900 Comfort panels — contact us for cross-reference and alternative models.
