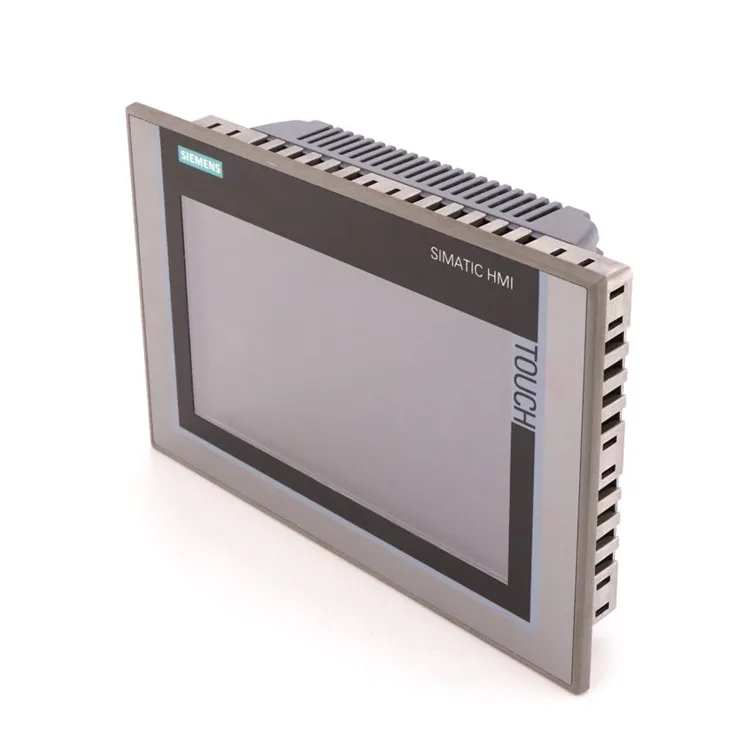

Siemens HMI Panel 6AV2124-0JC01-0AX0
Siemens
Siemens HMI Panel 6AV2124-0JC01-0AX0
Home > Products > Siemens > HMI Panels Need Siemens 6AV2124-0JC01-0AX0? HMI Panel for SIMATIC S7-1200, S7-1500, S7-300/400. Supplied with full traceab…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 6AV2124-0JC01-0AX0 |
| Official Product Name | SIMATIC HMI TP700 Comfort Panel |
| Applicable System | SIMATIC S7-1200, S7-1500, S7-300/400 (via PROFINET/PROFIBUS) |
| Product Type | HMI (Human Machine Interface) Panel |
| Equivalent Standard | IEC 61131-2, UL, CE |
| Product Status | In Stock |
| Display Size | 7 inches |
| Resolution | 800 x 480 pixels |
| Backlight | LED, replaceable |
| Touch Operation | Analog resistive touch screen |
| Function Keys | 8 freely configurable function keys |
| User Memory | 12 MB |
| Interfaces | 1x PROFINET, 1x PROFIBUS, 2x USB, 1x Ethernet |
| Power Supply | 24V DC (19.2 to 28.8V DC) |
| Current Consumption | Max. 0.6 A at 24V DC |
| Operating Temperature | 0°C to +50°C |
| Degree of Protection | IP65 (front), IP20 (rear) |
| Display Type | TFT (Thin Film Transistor) |
Product Description
It features a 7-inch TFT display with a resolution of 800x480 pixels, providing a clear and intuitive user interface for industrial automation applications. The panel supports both touch and function key operation, offering flexibility in control and monitoring. It is designed for use in machine-level applications, providing a robust and reliable HMI solution for various industries. This HMI panel is equipped with a 12 MB user memory, allowing for ample storage of project data, recipes, and logs. It supports PROFINET and PROFIBUS communication protocols, enabling seamless integration into existing industrial networks. The device also includes USB interfaces for data transfer and peripheral connectivity, as well as an Ethernet interface for network communication. The TP700 Comfort Panel is powered by a 24V DC supply and features a compact design suitable for panel mounting. The 6AV2124-0JC01-0AX0 is part of the Siemens SIMATIC HMI family, known for its high performance and reliability. It is compatible with the TIA Portal engineering software, allowing for efficient configuration and programming. The panel offers a wide range of functions, including alarm management, data logging, and recipe management, making it a versatile choice for various automation tasks. With its robust construction and advanced features, this HMI panel is ideal for demanding industrial environments. The Siemens 6AV2124-0JC01-0AX0 is a SIMATIC HMI TP700 Comfort Panel, part of the Siemens Comfort Panel series.
Basic Product Information
- Touch screen and function key operation
- PROFINET and PROFIBUS communication interfaces
- 12 MB user memory for project data and recipes
- USB interfaces for data transfer and peripherals
- Ethernet interface for network connectivity
- Compatible with TIA Portal engineering software
- 7-inch TFT display with 800x480 pixel resolution
Technical Specifications
Version & Model Difference
The 6AV2124-0JC01-0AX0 is the standard version of the TP700 Comfort Panel. There are also variants with additional features, such as the 6AV2124-0JC01-0AX1 (with additional memory) and the 6AV2124-0JC01-0AX2 (with extended temperature range). The standard version is suitable for most industrial applications, while the extended versions are designed for special requirements.
