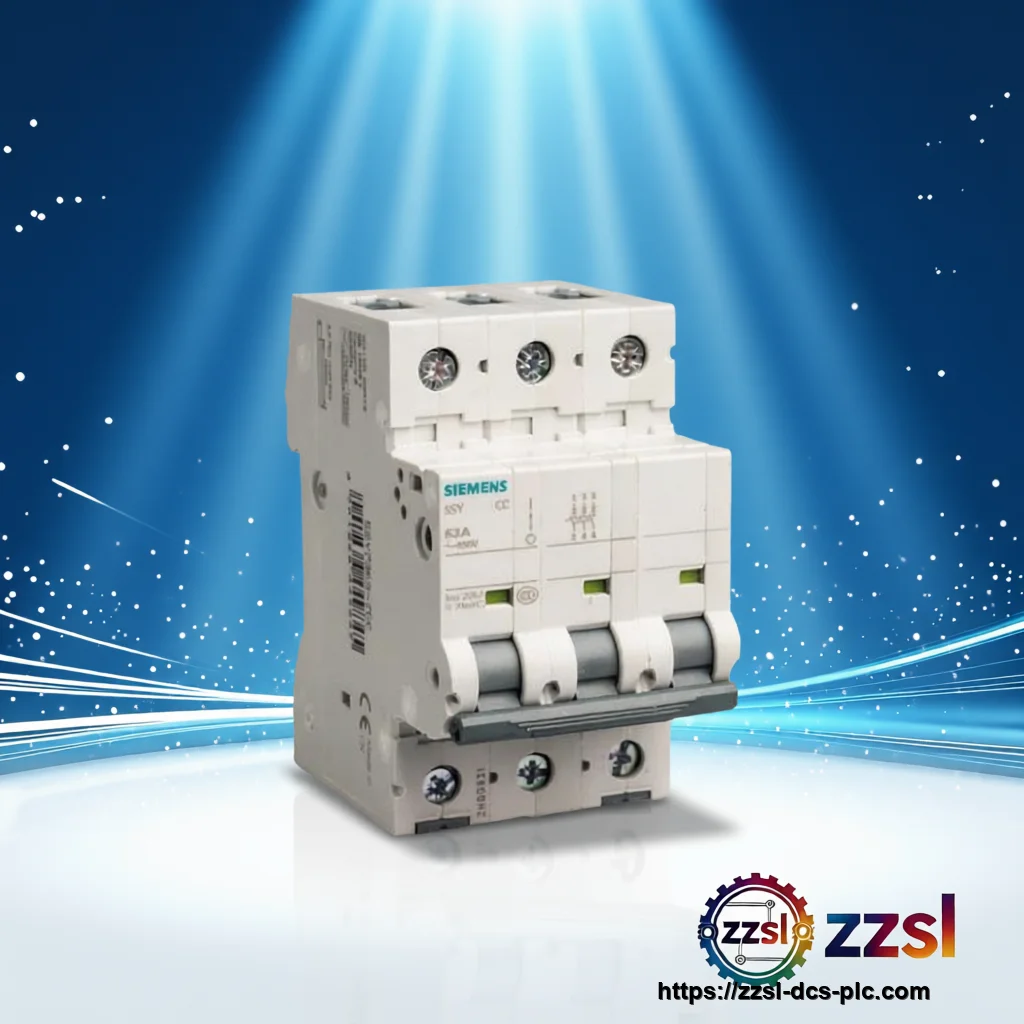

Siemens Component 5SY6316-8 / 5SY6 D 16A/3P
5SY6316-8--5SY6-D-16A3P
Siemens
Siemens Component 5SY6316-8 / 5SY6 D 16A/3P
Need Siemens 5SY6316-8 / 5SY6 D 16A/3P? Component for Low voltage distribution systems. Price & Availability 15.00 USD (est. market price) Basic Product …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 5SY6316-8 |
| Official Product Name | Circuit Breaker (EFH) |
| Applicable System | Low voltage distribution systems |
| Product Type | Component (MCB) |
| Equivalent Standard | 5SY6 D 16A/3P |
| Product Status | Active |
| Number of Poles | 3 |
| Tripping Curve | D |
| Breaking Capacity (kA) | 6 |
| Rated Voltage (V) | 400 V AC |
| Frequency (Hz) | 50/60 |
| Mounting Type | DIN rail |
| Terminal Capacity | 1-25 mm2 |
| Degree of Protection | IP20 |
| Operating Temperature | -25 to +55 degC |
| Standards | EN 60898, IEC 60947-2 |
| Breaking Capacity | 6 kA (EN 60898) |
| Dimensions | 90 x 54 x 76 mm, install depth 70 mm, 3 modular units |
| Weight | ~0.42 kg (3-pole family) |
| Rated Current (A) | 16 A |
Product Description
15.00 USD (est. market price)
Basic Product Information
- 3-pole configuration for three-phase systems
- D tripping curve for high inrush currents (e.g., motors, transformers)
- 6kA breaking capacity for standard industrial applications
- Compact design for easy installation in distribution boards
- Complies with IEC 60898-1 standards
- Rated current of 16A for reliable protection
Technical Specifications
Version & Model Difference
The Siemens 5SY6 series includes various versions with different tripping characteristics (B, C, D) and breaking capacities (6kA, 10kA). The 5SY6316-8 is the 16A, 3P, D-curve variant with 6kA breaking capacity. Other versions may have different current ratings or pole configurations. This model is the standard version for industrial applications requiring D curve protection.
Application Scenarios
- Industrial motor protection
- Transformer primary protection
- Commercial building distribution panels
- Machine control panels
- Replacement in existing Siemens distribution boards
