5SY6232-8--5SY6-D-32A2P

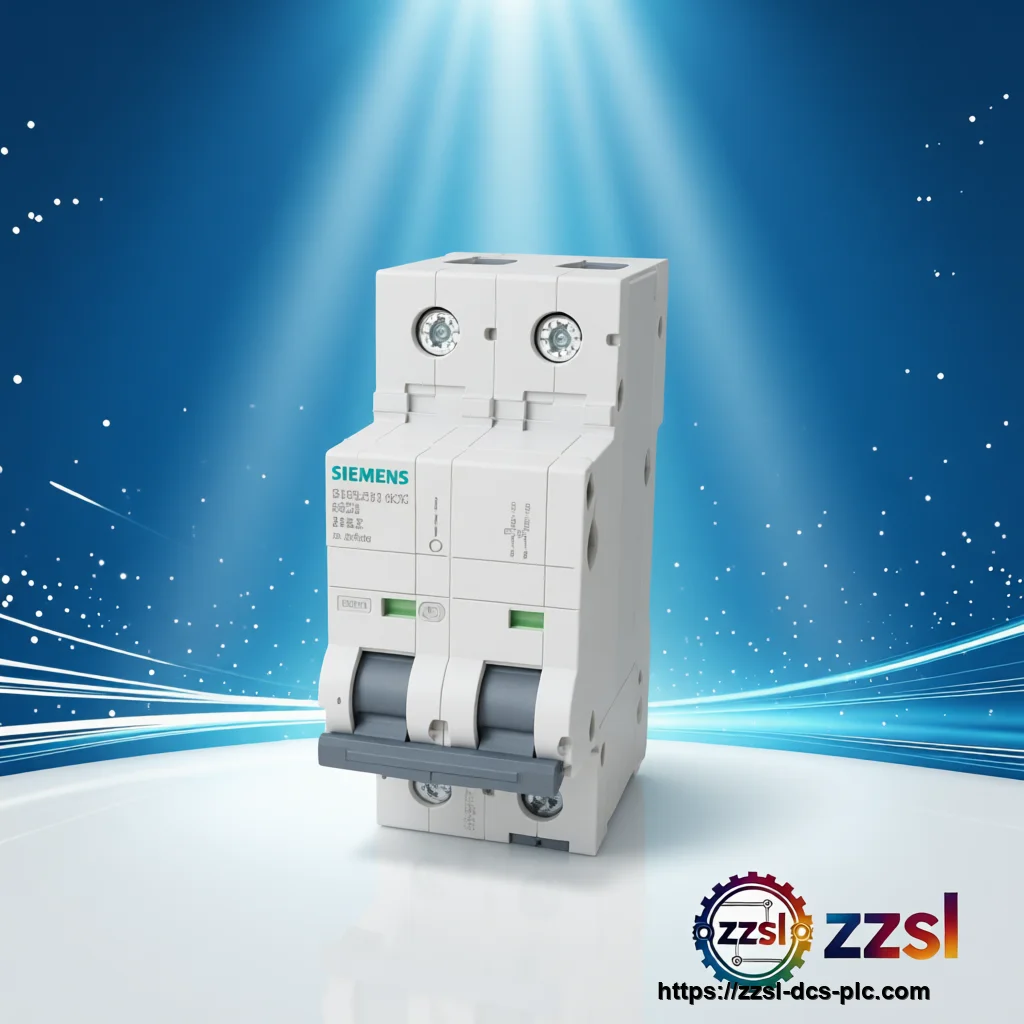

Siemens Component 5SY6232-8 / 5SY6 D 32A/2P
Siemens
Siemens Component 5SY6232-8 / 5SY6 D 32A/2P
Home > Products > Circuit Breakers > Siemens > 5SY6232-8 Need Siemens 5SY6232-8 / 5SY6 D 32A/2P? Component for Low voltage electrical distribution …
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 5SY6232-8 / 5SY6 D 32A/2P |
| Official Product Name | Circuit Breaker (EFH) |
| Applicable System | Low voltage electrical distribution systems |
| Product Type | Component (Miniature Circuit Breaker) |
| Equivalent Standard | 5SY6232-8, 5SY6 D 32A/2P |
| Product Status | Active |
| Number of Poles | 2 |
| Rated Current (A) | 32 A |
| Tripping Curve | D |
| Rated Voltage (V) | 400 V AC (230/400 V) |
| Breaking Capacity (kA) | 6 |
| Mounting Type | DIN Rail |
| Terminal Capacity | 1-25 mm2 |
| Degree of Protection | IP20 |
| Operating Temperature | -25 to +55 degC |
| Standards | EN 60898, IEC 60947-2 |
| Breaking Capacity | 6 kA (EN 60898) |
| Dimensions | 90 x 36 x 76 mm, install depth 70 mm, 2 modular units |
| Weight | ~0.30 kg (2-pole family) |
| Frame Style | 6kA |
Product Description
13.00 USD （参考价 / est. market price）
Basic Product Information
- 2-pole configuration for single-phase or two-phase circuits
- D tripping curve for high inrush current applications
- 6kA breaking capacity for industrial environments
- Compact modular design for DIN rail mounting
- Complies with international standards (IEC 60898, EN 60898)
- Rated current 32A for reliable overcurrent protection
Technical Specifications
Version & Model Difference
The Siemens 5SY6 series includes various versions with different current ratings, pole configurations, and tripping curves. The 5SY6232-8 specifically denotes a 32A, 2-pole, D-curve breaker. Other versions may have different current ratings (e.g., 6A, 10A, 16A, 20A, 25A, 40A) or curves (B, C, D). The 5SY6 series is the standard miniature circuit breaker range from Siemens, suitable for residential, commercial, and industrial applications.
Application Scenarios
- Industrial motor protection
- Transformer protection
- Commercial electrical panels
- Pump control systems
- Machine tool equipment
