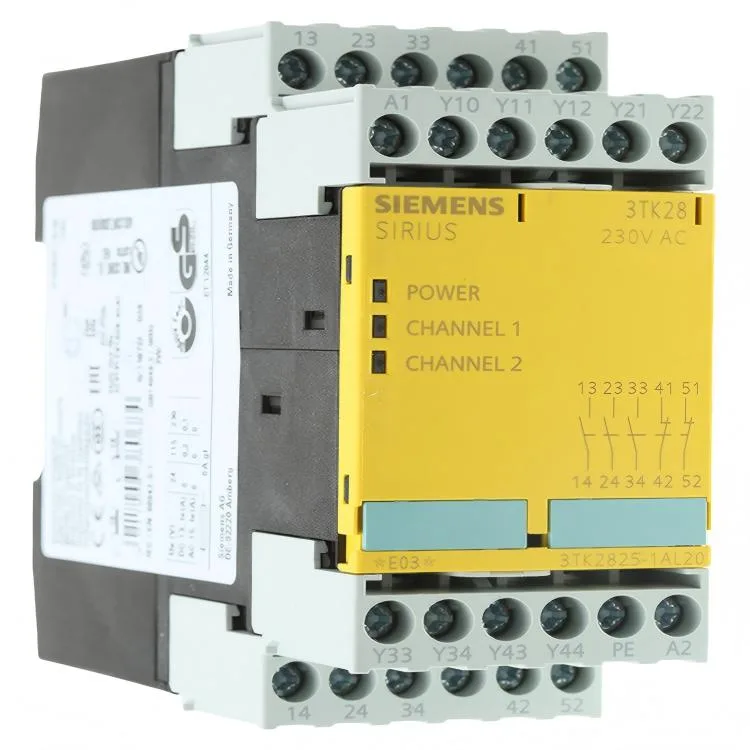

Siemens Safety Relay 3TK2825-1AL20
Siemens 3TK2825-1AL20 Safety Relay. For SIRIUS 3TK28 safety relay systems and machine safety circuits. Supplied with full traceability and documentation. Price…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 3TK2825-1AL20 |
| Official Product Name | SIRIUS Safety Relay 3TK2825-1AL20, 230 V AC, 3 NO + 2 NC, 45 mm |
| Applicable System | SIRIUS 3TK28 safety relay systems and machine safety circuits |
| Product Type | Safety Relay (Basic Device) |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Product Type | Safety relay (basic device) with relay enabling circuits |
| Control Supply Voltage | 230 V AC (50/60 Hz) |
| Enabling Circuits (NO), Instantaneous | 3 |
| Enabling Circuits (NO), Delayed | 0 |
| Safety Contacts (NC) | 2 |
| Start Mode | Autostart / monitored start |
| Maximum Safety Integrity | SIL 3 (IEC 61508), PL e (ISO 13849-1), Category 4 (EN 954-1) |
| Overall Width | 45 mm |
| Terminals | Screw-type |
| Mounting | Screw and snap-on 35 mm DIN rail mounting |
| Protection Rating | IP20 |
| Operating Temperature | -25 C ... +60 C |
| Storage Temperature | -40 C ... +80 C |
| Net Weight | Approx. 0.501 kg |
| EAN | 4011209380684 |
| Country of Origin | Germany |
| Series | SIRIUS 3TK28 |
Product Description
Siemens 3TK2825-1AL20 Safety Relay. For SIRIUS 3TK28 safety relay systems and machine safety circuits. Supplied with full traceability and documentation.
It operates on a 230 V AC supply, has a 45 mm overall width and provides 3 normally open (NO) instantaneous enabling circuits plus 2 normally closed (NC) safety contacts. It supports both autostart and monitored start and achieves up to SIL 3 (IEC 61508) and PL e (ISO 13849-1) via positively driven contacts. Screw terminals and DIN rail mounting make it straightforward to install in machine and plant safety circuits. The Siemens 3TK2825-1AL20 is a SIRIUS 3TK28 series safety relay with relay enabling circuits, intended for monitoring emergency stop circuits and other safety-related functions.
Basic Product Information
- 230 V AC control supply voltage with 45 mm overall width
- Selectable autostart or monitored start operating mode
- Maximum achieved safety integrity of SIL 3 (IEC 61508) and PL e (ISO 13849-1)
- Positively driven contacts for fail-safe monitoring of welding faults
- Screw-type terminals with 35 mm DIN rail or screw mounting
- 3 NO instantaneous enabling circuits and 2 NC safety contacts
Technical Specifications
Version & Model Difference
The 3TK2825-1AL20 is a SIRIUS 3TK28 basic safety relay with 3 NO enabling circuits and 2 NC signaling contacts. Siemens lists this article as discontinued since 01.10.2020, with the preferred successor being the 3SK1111-1AW20, which has one signaling circuit less. When building a replacement, verify pinout compatibility and confirm whether the 3TK2830 expansion module is required for the existing safety function.
Application Scenarios
- Emergency stop circuit monitoring
- Safety gate and protective door monitoring
- Machine tools, presses, conveyors and robotic cells
- Safety-related circuits requiring up to SIL 3 / PL e
- Siemens 6ES7214-1BH50-0XB0 SIMATIC S7-1200 G2 CPU 1214C AC/DC/RLY
- Siemens 6ES7231-4HF50-0XB0 SIMATIC S7-1200 G2 SM 1231 Analog Input Module
- Siemens 6ES7231-5PD50-0XB0 SIMATIC S7-1200 G2 SM 1231 RTD Module
- Siemens 6ES7216-2BD23-0XB0 SIMATIC S7-200 CPU 216-2 DC/DC/DC
- Siemens 6ES7223-1BH22-0XA0 SIMATIC S7-200 EM 223 Digital I/O Module 8DI/8DO
- Siemens 6ES7223-5PH50-0XB0 SIMATIC S7-1200 G2 SM 1223 Digital I/O 8DI/8RLY
Frequently Asked Questions
What supply voltage does the 3TK2825-1AL20 use?
It operates on a 230 V AC control supply voltage (50/60 Hz) and has a 45 mm overall width.
How many contacts does the relay have?
It provides 3 normally open (NO) instantaneous enabling circuits and 2 normally closed (NC) safety contacts.
What safety level can it achieve?
The device achieves up to SIL 3 according to IEC 61508 and PL e according to ISO 13849-1, using positively driven contacts.
Is the 3TK2825-1AL20 still produced?
Siemens lists this article as discontinued since 01.10.2020; the preferred successor is the 3SK1111-1AW20. Spare units are commonly supplied for maintenance and replacement.
