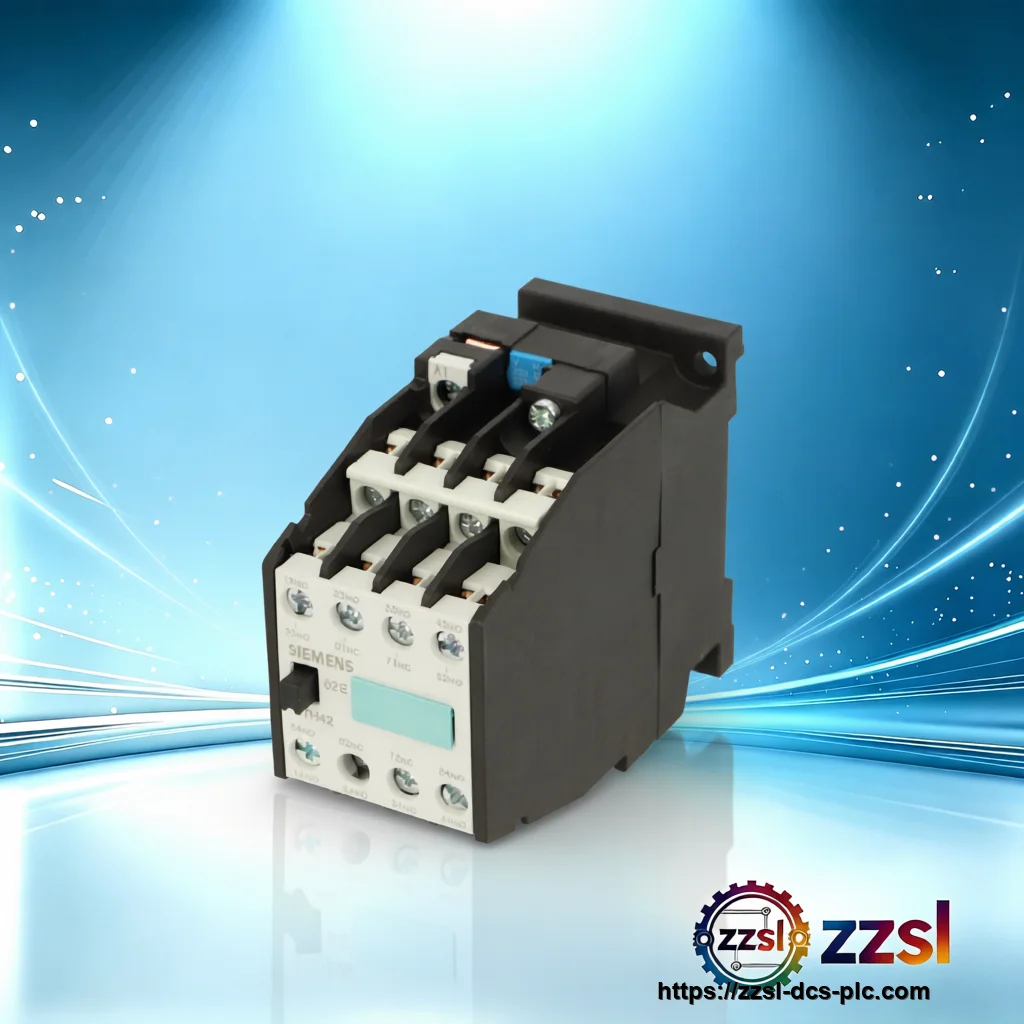

Siemens Contactor relay 3TH4244
Home / Control Components / Contactor Relays / Siemens 3TH4244 Need Siemens 3TH4244? Contactor relay for Motor control and automation control circuits. Supplie…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 3TH4244 |
| Official Product Name | Siemens 3TH4 Contactor Relay 3TH4244 (AC 220 V) |
| Applicable System | Motor control and automation control circuits |
| Product Type | Contactor relay / intermediate relay |
| Equivalent Standard | EN 50011; IEC 60947; UL / CSA; GB 14048 |
| Product Status | Contact for availability |
| Lifecycle note | Contact supplier for stock and lead time |
| Coil voltage | AC 220 V (50 Hz) / 240 V (60 Hz) |
| Rated current (AC-15) | 10 A at 230 V; 6 A at 400 V |
| Insulation voltage | 690 V |
| Mounting | DIN rail (EN 50022) and screw |
| Protection class | IP20 (front) |
| Operating temperature | -25 to +55 deg C |
| Dimensions (W x H x D) | 45 x 78 x 102 mm |
| Weight | approx. 0.425 kg |
| Standards | EN 50011; IEC 60947; UL / CSA |
| Country of origin | China |
| Contact configuration | 4 NO + 4 NC (8 poles) |
Product Description
Basic Product Information
- AC operation, 220 V (50 Hz) / 240 V (60 Hz) coil
- Rated 10 A at 230 V (AC-15), 6 A at 400 V
- DIN-rail (EN 50022) and screw mounting
- Climate-resistant, high contact reliability, worldwide approvals
- 8-pole contactor relay with 4 NO + 4 NC contacts
Technical Specifications
Version & Model Difference
The base code 3TH4244 is offered with various suffixes (e.g. -0AP0, -0AM0) defining coil voltage and terminal type. The relay body is common; confirm the exact suffix with the supplier for certified dimensions and weight.
Application Scenarios
- Signal switching and amplification in control circuits
- Auxiliary relay in PLC and panel control systems
- Load switching in HVAC and lighting controls
