Siemens · PLC Module
3TF52-22-0XM0

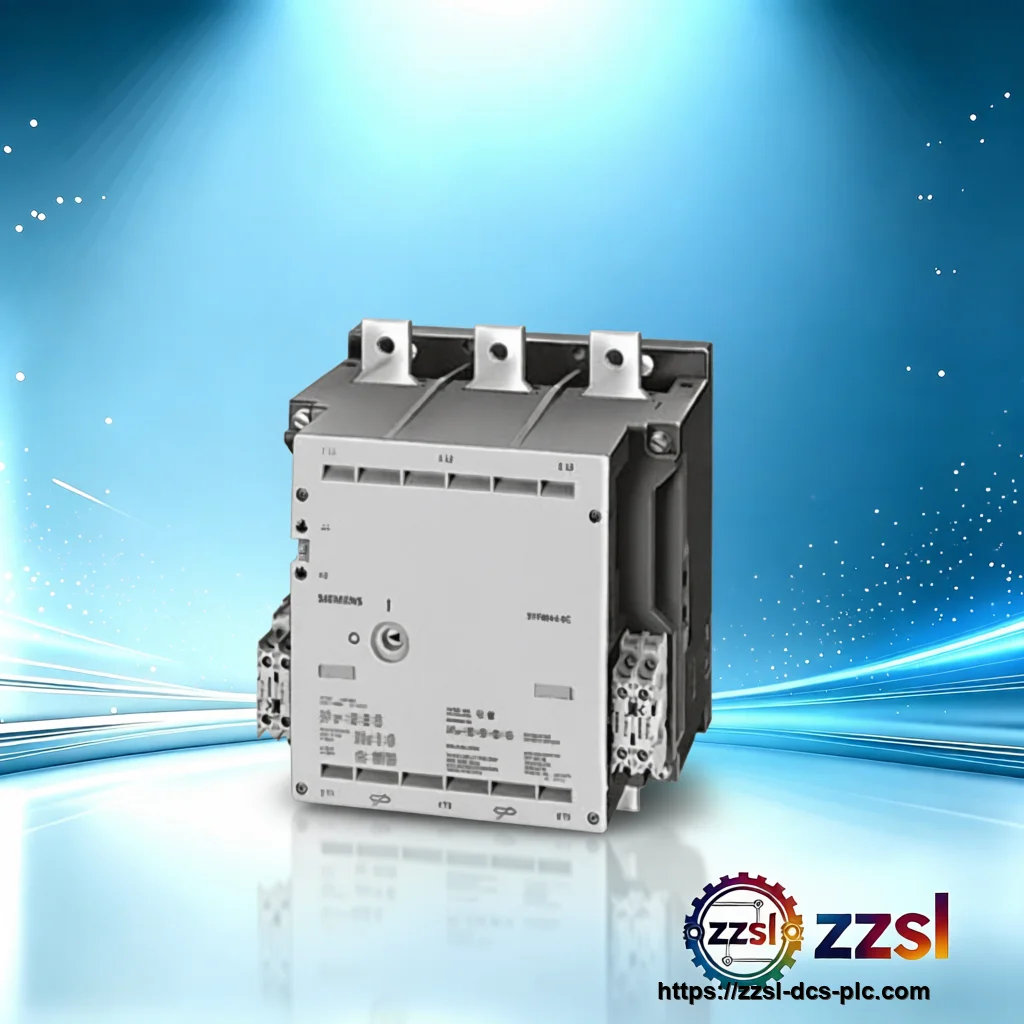

Siemens AC magnetic contactor 3TF52 22-0XM0
Siemens
Siemens AC magnetic contactor 3TF52 22-0XM0
Home / Motor Control / AC Contactors / Siemens 3TF52 Need Siemens 3TF52 22-0XM0? AC magnetic contactor for Motor control and power switching. Supplied with ful…
Specifications
| Brand | Siemens |
|---|---|
| Model Number | 3TF52 22-0XM0 |
| Official Product Name | Siemens 3TF5 Series AC Contactor 3TF5222-0XM0 |
| Applicable System | Motor control and power switching |
| Product Type | AC magnetic contactor |
| Equivalent Standard | IEC 60947-4-1 / GB 14048.4 |
| Product Status | Contact for availability |
| Lifecycle note | Contact supplier for stock and lead time |
| Coil voltage | 220 V AC, 50/60 Hz |
| Rated insulation voltage Ui | 690 V |
| Utilization category | AC-3 (AC-1 also supported) |
| Rated operational current | Contact supplier for exact current rating |
| Auxiliary contact | 3TY7561-1AA00 (as specified) |
| Protection class | IP20 |
| Mounting | 35 mm DIN rail or screw |
| Standards | IEC 60947-4-1 / GB 14048.4 |
| Country of origin | Contact supplier for exact specifications |
| Poles | 3 |
Product Description
Basic Product Information
- Double-break, direct-acting contact system with silver-alloy main contacts
- Closed arc-chamber design with flame-retardant barriers for safety
- DIN-rail or screw mounting, compact footprint
- Conforms to IEC 60947-4-1 / GB 14048.4
- 3-pole AC contactor with 220 V AC (50/60 Hz) coil
Technical Specifications
Version & Model Difference
The 3TF5 series spans several frame sizes with different current ratings; the exact rating of 3TF52 22-0XM0 varies between sources (some list ~22 A at AC-3 / 400 V). Confirm the certified rating and ordering suffix with the supplier.
Application Scenarios
- Starting, stopping and reversing of AC motors
- Frequent switching in automation and production lines
- Power switching in HVAC and distribution control
