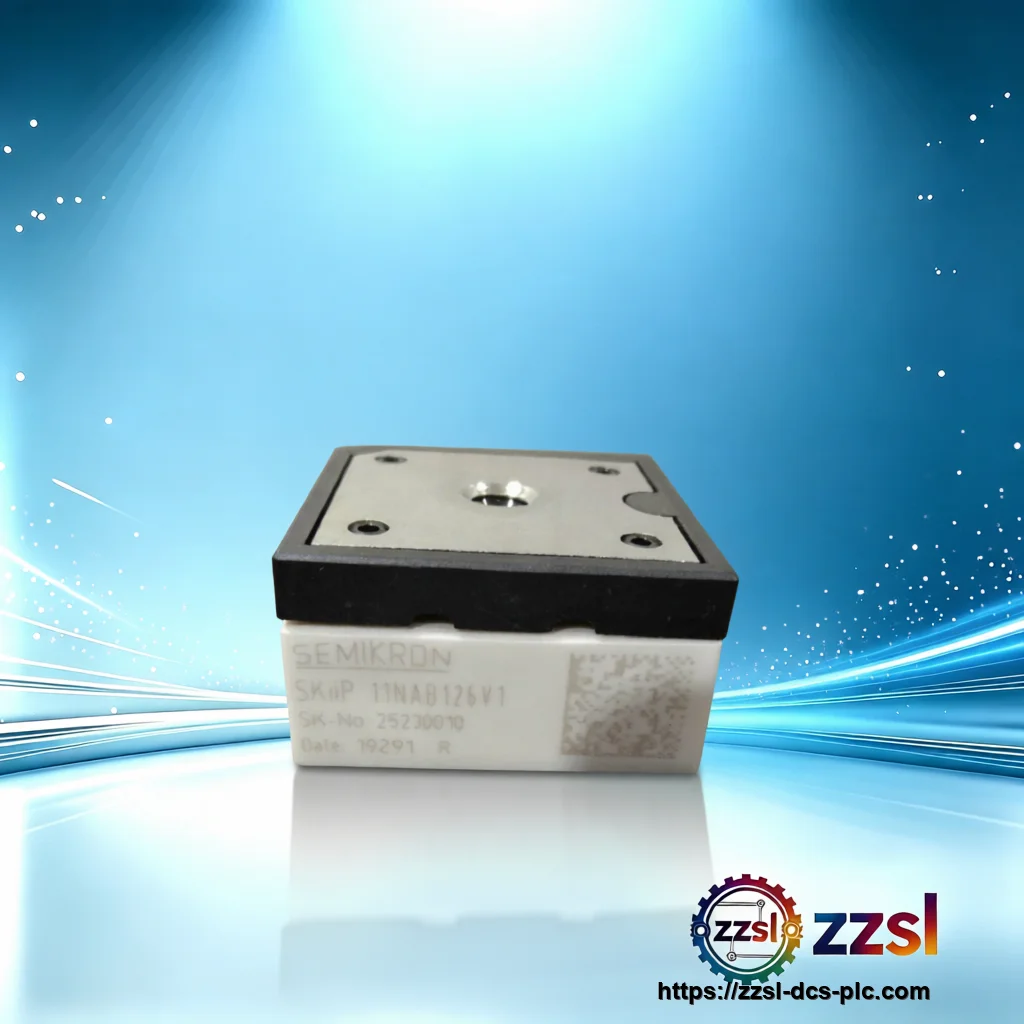

Semikron IGBT CIB power module SKIIP 11NAB126V1
Semikron
Semikron IGBT CIB power module SKIIP 11NAB126V1
['Home', 'SEMIKRON', 'Power Modules', 'IGBT Modules', 'SKIIP 11NAB126V1'] Need Semikron SKIIP 11NAB126V1? IGB…
Specifications
| Brand | SEMIKRON |
|---|---|
| Model Number | SKIIP 11NAB126V1 |
| Official Product Name | SKIIP 11NAB126V1 1200V IGBT CIB Module |
| Applicable System | Motor drives / Inverters / UPS / Photovoltaic converters |
| Product Type | IGBT CIB power module (MiniSKiiP II 1) |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Active |
| Lifecycle note | In Production |
| Voltage (Vces) | 1200 V |
| Current (Ic) | 8 A (module rating); up to 16 A peak per datasheet |
| Technology | IGBT 3 (Trench) |
| Package | MiniSKiiP II 1 |
| Dimensions (L x W x H) | 42 mm x 40 mm x 16 mm |
| Net weight | 0.03 kg (gross 0.04 kg) |
| Typical application | Inverter up to 8 kVA; typical motor power 4 kW |
| Topology | CIB (Converter - Inverter - Brake) |
Product Description
Basic Product Information
- MiniSKiiP II 1 low-profile package with reliable spring contacts
- Fast Trench IGBTs with durable soft freewheeling diodes in CAL technology
- Compact 42 x 40 x 16 mm footprint
- UL recognised component (file no. E63532)
- 1200 V IGBT topology with CIB (rectifier + brake chopper + inverter) integration
Technical Specifications
Version & Model Difference
['SKIIP 11NAB126V1 is offered in variants M00/M01/M10/M11/M15/M20/M21 with different lids and thermal interface', 'M11 adds a slim pressure lid and pre-applied Wacker P12 thermal paste', 'Electrical ratings are identical across the mechanical variants']
Application Scenarios
- Low-power motor drives and servo inverters
- Uninterruptible power supplies (UPS)
- Photovoltaic and small renewable-energy converters
