iC65N-D25A-3P

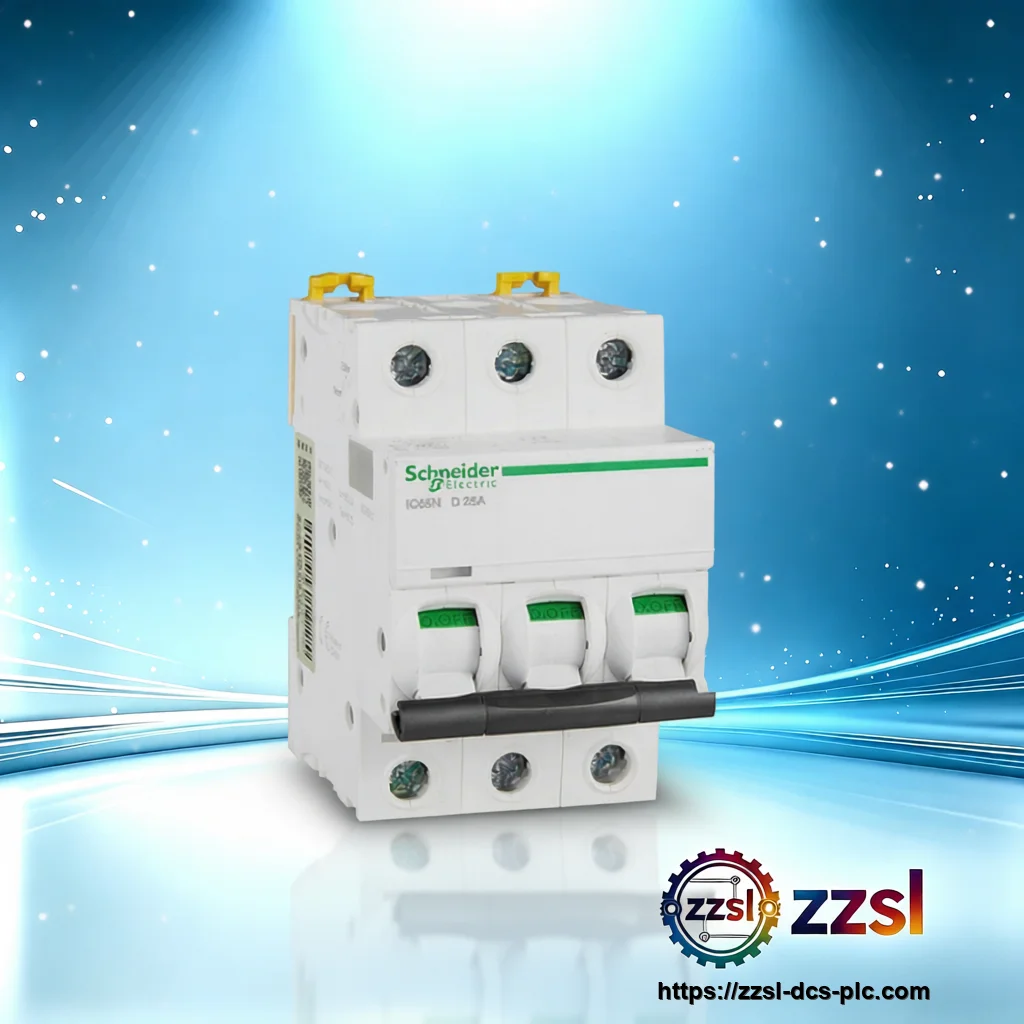

Schneider Circuit breaker iC65N D25A 3P
Schneider Electric
Schneider Circuit breaker iC65N D25A 3P
Home > Products > Circuit Breakers > Schneider > iC65N D25A 3P Need Schneider iC65N D25A 3P? Circuit breaker for Low voltage electrical distributio…
Specifications
| Brand | Schneider |
|---|---|
| Model Number | iC65N D25A 3P |
| Official Product Name | Circuit Breaker (EFH) |
| Applicable System | Low voltage electrical distribution systems |
| Product Type | Circuit breaker (component) |
| Equivalent Standard | Contact us for details |
| Product Status | Active |
| Tripping Curve | D |
| Number of Poles | 3P |
| Breaking Capacity (kA) | 60 |
| Rated Voltage (V) | 500 V |
| Mounting Type | DIN rail |
| Frequency (Hz) | 50/60 |
| Terminal Capacity (mm2) | Contact us for details |
| Degree of Protection | IP20 |
| Operating Temperature (degC) | -35 degC to +70 degC |
| Breaking Capacity | 6 kA at 400 V AC (IEC 60898-1) |
| Rated Impulse Withstand (Uimp) | 6 kV |
| Dimensions | 54 mm |
| Weight | 375 g |
| Certifications | IEC 60898-1, IEC 60947-2, CCC |
| Rated Current (A) | 25 A |
Product Description
22.00 USD （参考价 / est. market price）
Basic Product Information
- Breaking capacity of 60kA at 600V AC
- Rated current of 25A for moderate load protection
- 3-pole configuration for three-phase systems
- DIN rail mounting for easy installation
- Complies with international standards (IEC 60898, IEC 60947-2)
- D tripping curve for high inrush current applications
Technical Specifications
Version & Model Difference
The iC65N series includes various breaking capacities (N, H, L) and curves (B, C, D). The 'N' version offers 60kA breaking capacity, suitable for industrial applications. The D curve is specifically designed for circuits with high inrush currents, such as motors and transformers. Other versions may have different breaking capacities or curves, but this model is optimized for the specified parameters.
Application Scenarios
- Industrial motor protection
- Commercial building electrical panels
- HVAC systems with high starting currents
- Replacement in existing Schneider distribution boards
