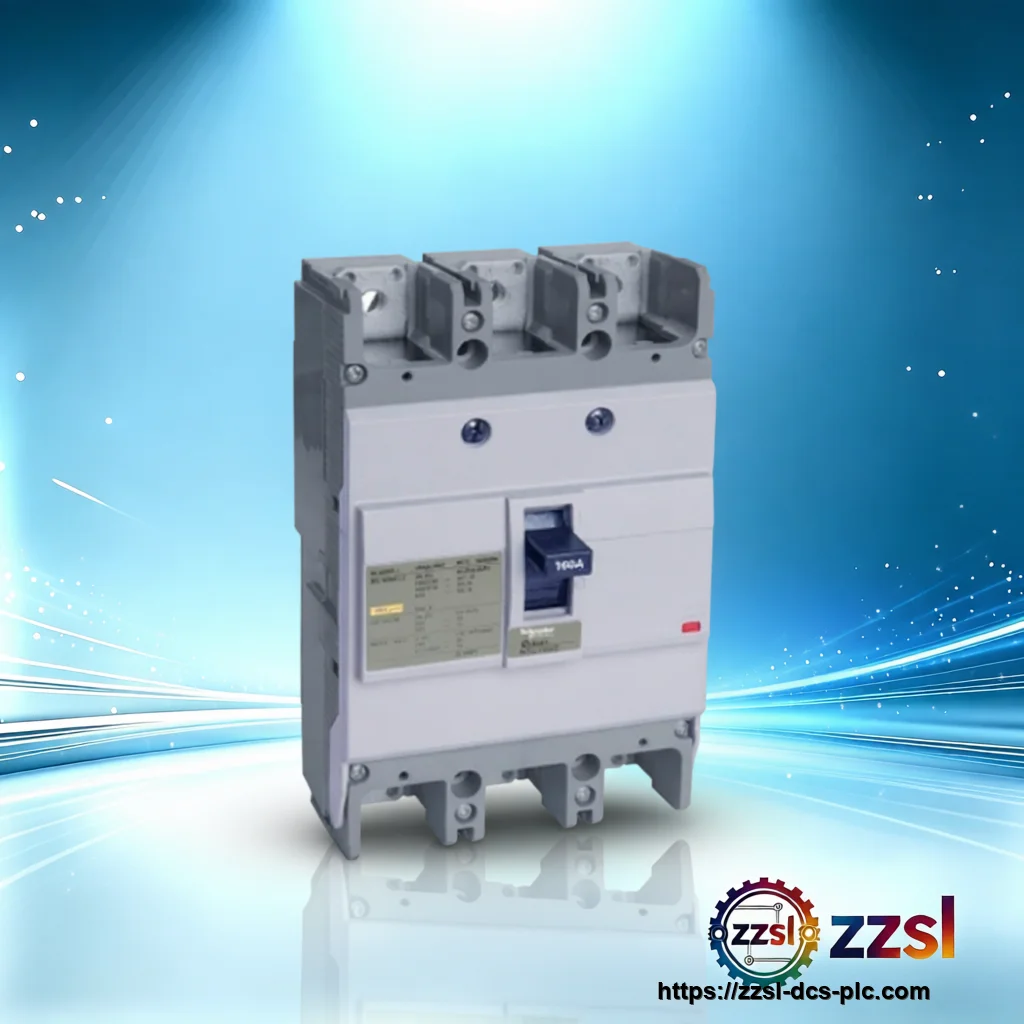

Schneider Molded case circuit breaker NSC160S
Schneider Electric
Schneider Molded case circuit breaker NSC160S
Home / Circuit Protection / MCCB / Schneider NSC160S Need Schneider NSC160S? Molded case circuit breaker for Low-voltage power distribution. Supplied with full…
Specifications
| Brand | Schneider Electric |
|---|---|
| Model Number | NSC160S |
| Official Product Name | Schneider Osmart NSC160S Molded Case Circuit Breaker |
| Applicable System | Low-voltage power distribution |
| Product Type | Molded case circuit breaker (MCCB) |
| Equivalent Standard | IEC 60947-2 |
| Product Status | Contact for availability |
| Lifecycle note | Contact supplier for stock and lead time |
| Poles | 3P |
| Rated insulation voltage Ui | 690 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Rated operational voltage Ue | 440 V AC, 50/60 Hz |
| Breaking capacity Icu | 25 kA at 220/240 V; 18 kA at 380-400 V |
| Trip unit | TM-D thermal-magnetic, 160 A at 40 deg C |
| Mechanical life | 10,000 operations |
| Electrical life | 5,000 operations |
| Dimensions (H x W x D) | 165 x 105 x 60 mm |
| Weight | 1.3 kg |
| Standards | IEC 60947-2 |
| Operating temperature | -25 to +70 deg C |
| Country of origin | Contact supplier for exact specifications |
| Frame rated current | 160 A |
Product Description
Basic Product Information
- Thermal-magnetic (TM-D) trip unit, fixed settings
- Rated insulation voltage Ui 690 V, impulse withstand Uimp 6 kV
- High breaking capacity: 25 kA Icu at 220/240 V
- Fixed, plate-mounted with front connections; 3-pole
- 160 A frame-rated molded case circuit breaker
Technical Specifications
Version & Model Difference
The NSC160S is offered with different trip units: NSC160S3160N (TM-D, distribution) and NSC160S3160MAN (MA, motor protection). The base NSC160S denotes the 160 A frame. Confirm the exact suffix and trip type with the supplier.
