LC1D32M7C-32A

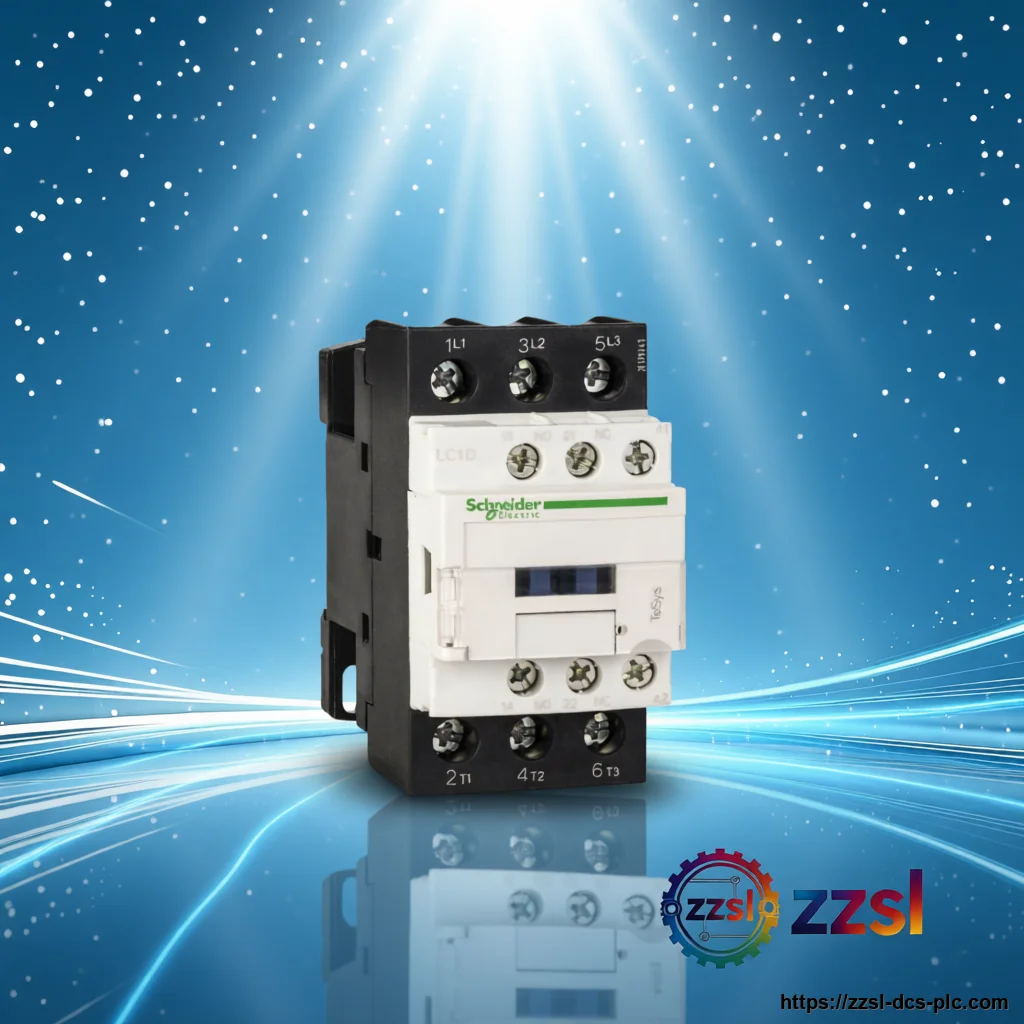

Schneider AC power contactor LC1D32M7C 32A
Schneider Electric
Schneider AC power contactor LC1D32M7C 32A
['Home', 'Low Voltage', 'Contactors', 'Schneider TeSys D', 'LC1D32M7C'] Need Schneider LC1D32M7C 32A? AC powe…
Specifications
| Brand | Schneider Electric |
|---|---|
| Model Number | LC1D32M7C |
| Official Product Name | TeSys D Power Contactor |
| Applicable System | Motor control / Low-voltage switchgear |
| Product Type | AC power contactor |
| Equivalent Standard | IEC 60947-4-1 |
| Product Status | Active |
| Rated operational current AC-3 | 32 A at <= 440 V AC |
| Rated operational current AC-1 | 50 A at <= 440 V AC |
| Rated motor power AC-3 | 15 kW at 400 V |
| Control coil voltage | 220 V AC, 50/60 Hz |
| Auxiliary contacts | 1 NO + 1 NC |
| Insulation voltage | 690 V |
| Electrical durability | 1.65 million cycles at 32 A AC-3 |
| Mechanical durability | 15 million cycles |
| Dimensions (H x W x D) | 85 x 45 x 92 mm |
| Poles | 3 (3 NO main contacts) |
Product Description
Basic Product Information
- Built-in auxiliary contacts 1 NC + 1 NO
- 220 V AC (50/60 Hz) coil, screw clamp terminals
- Compact 45 mm width, DIN rail or base mount
- Approvals CCC, CE, UKCA
- 3-pole contactor, 32 A at AC-3 / 440 V
Technical Specifications
Version & Model Difference
['LC1D32M7C (32 A, China build) vs LC1D25M7 (25 A): same frame, higher current; the C suffix denotes China-manufactured version.', 'The M7 suffix fixes a 220 V AC coil; other voltages are separate codes.']
Application Scenarios
- Motor starting and control
- Resistive, lighting and heating load switching
- Building automation and industrial panels
