LC1D25BL

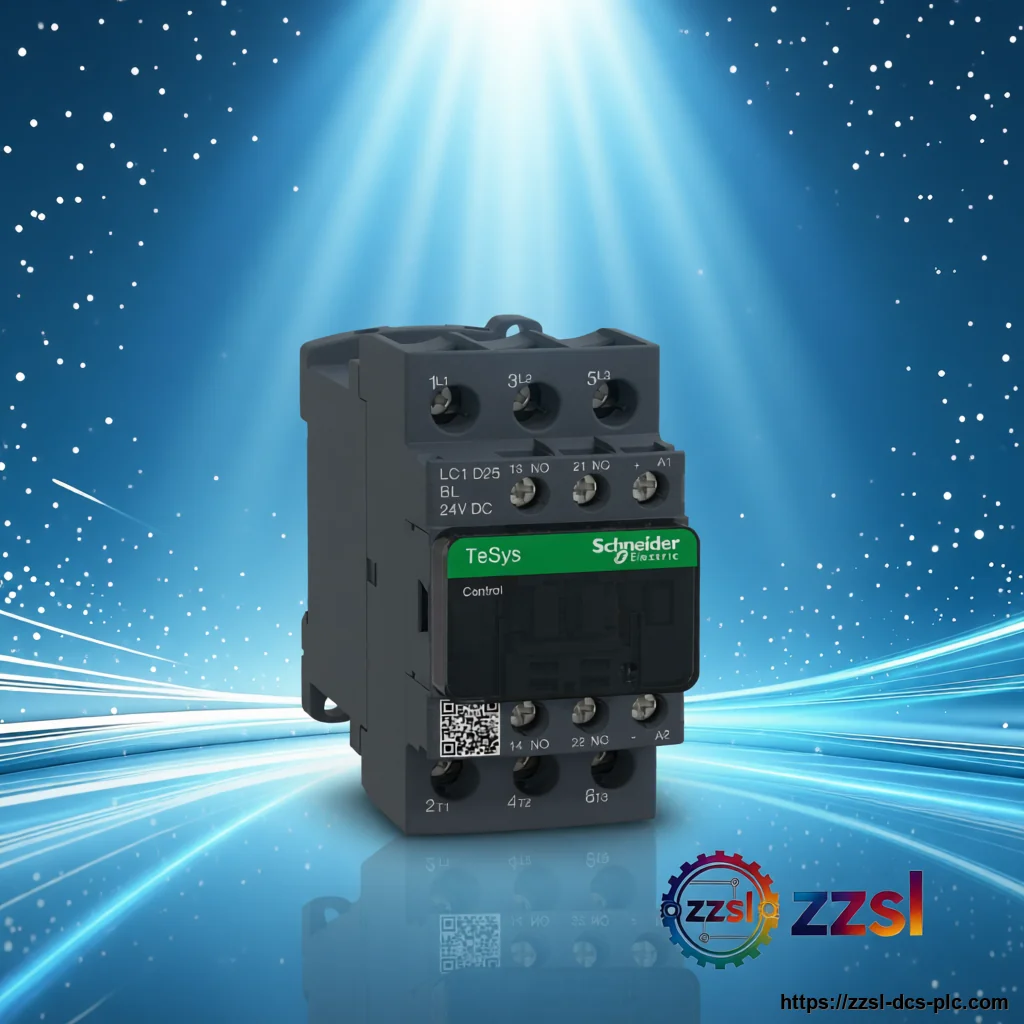

Schneider Electric AC-3 Power Contactor LC1D25BL
Schneider Electric
Schneider Electric AC-3 Power Contactor LC1D25BL
['Home', 'Brands', 'Schneider Electric', 'Contactors', 'LC1D25BL'] Need Schneider Electric LC1D25BL? AC-3 Pow…
Specifications
| Brand | Schneider Electric |
|---|---|
| Model Number | LC1D25BL |
| Official Product Name | TeSys D Contactor LC1D25BL |
| Applicable System | Motor control / industrial control panels |
| Product Type | AC-3 Power Contactor (3-Pole) |
| Equivalent Standard | IEC 60947-4-1 |
| Product Status | Active |
| Rated current (AC-3) | 25 A |
| Rated voltage | <= 440 V (up to 690 V) |
| Motor power at 400 V | 11 kW |
| Coil voltage | 24 V DC (low consumption) |
| Auxiliary contacts | 1 NO + 1 NC built-in |
| Mounting | DIN rail / screw |
| Terminals | Screw clamp |
| Degree of protection | IP20 (front face) |
| Dimensions | 45 x 85 x 99 mm |
| Weight | 0.53 kg |
| Operating temperature | -40 ... 60 deg C |
| Standards | IEC 60947-4-1, UL, CSA, CCC, EAC, RoHS |
| Poles | 3 (3NO) |
Product Description
It features a low-consumption 24 V DC coil, built-in 1 NO + 1 NC auxiliary contacts, screw terminals and DIN-rail mounting in an IP20 housing. The Schneider Electric LC1D25BL is a TeSys D 3-pole contactor for motor control up to 25 A (AC-3) at 440 V, with an 11 kW rating at 400 V.
Basic Product Information
- Low-consumption 24 V DC coil with transient suppressor
- Built-in 1 NO + 1 NC auxiliary contacts
- DIN-rail or screw mounting, IP20 front face
- 3-pole (3NO) AC-3 contactor, 25 A rating
Technical Specifications
Version & Model Difference
[{'variant': 'LC1D09BL', 'note': '9 A version of TeSys D with 24 V DC coil'}, {'variant': 'LC1D18BL', 'note': '18 A version of TeSys D with 24 V DC coil'}, {'variant': 'LC1D32BL', 'note': '32 A version of TeSys D with 24 V DC coil'}]
Application Scenarios
- Motor starting and control in industrial panels
- Resistive and lighting load switching
- HVAC and building automation control
- It mounts on a 35 mm DIN rail or by screw fixing, with IP20 finger-safe screw terminals.
- Schneider Electric MiCOM P921 Voltage and Frequency Protection Relay
- Schneider Electric MiCOM P127 Overcurrent and Earth Fault Protection Relay
- Schneider Electric MiCOM P121 Overcurrent and Earth Fault Protection Relay
- Schneider Electric MiCOM P120C00V112BF1 Overcurrent Protection Relay (Specific Order Code)
- Schneider Electric GV3P50 TeSys Deca Motor Circuit Breaker
- Schneider Electric A9F18463 Acti 9 iC60 63A 4-Pole Miniature Circuit Breaker
- Schneider Electric XB4BW73731M5 Harmony XB4 22 mm Illuminated Double-Headed Pushbutton
Frequently Asked Questions
What current rating does the LC1D25BL have?
It is a 3-pole contactor rated 25 A in AC-3 duty, controlling up to 11 kW at 400 V.
What coil voltage does it use?
It uses a low-consumption 24 V DC coil with a built-in transient suppressor.
How is it mounted?
It mounts on a 35 mm DIN rail or by screw fixing, with IP20 finger-safe screw terminals.
Which standards does it comply with?
It meets IEC 60947-4-1 and is certified UL, CSA, CCC and EAC, and is RoHS compliant.
