LC1D18-contactor

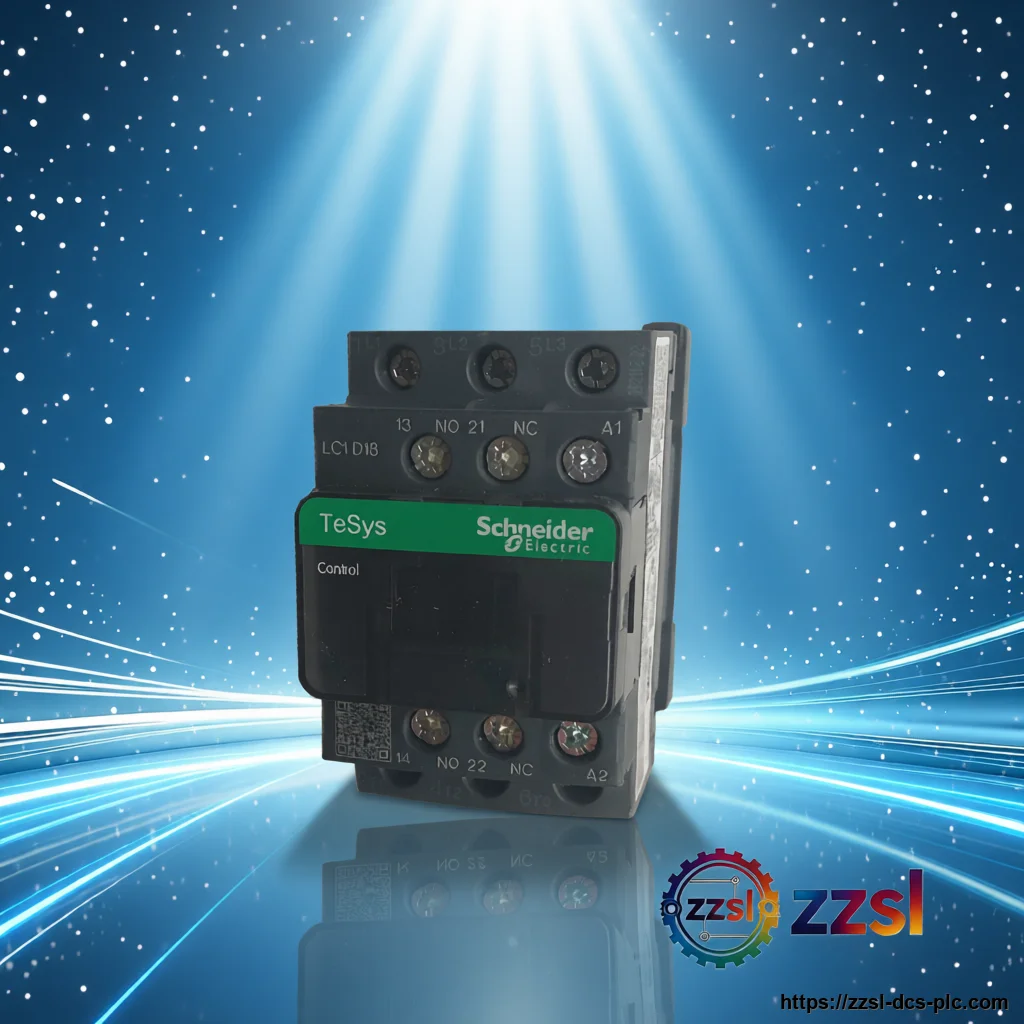

Schneider Contactor LC1D18
Schneider Electric
Schneider Contactor LC1D18
Home > Products > Schneider > Contactors Need Schneider LC1D18? Contactor for Motor control, lighting control, power switching. Supplied with full tra…
Specifications
| Brand | Schneider Electric |
|---|---|
| Model Number | LC1D18 |
| Official Product Name | TeSys D Contactor - 3P(3 NO) - AC-3 - <=440 V 18 A - 230 V AC coil |
| Applicable System | Motor control, lighting control, power switching |
| Product Type | Contactor |
| Equivalent Standard | IEC 60947-4-1, UL 508, CSA C22.2 |
| Product Status | In Stock |
| Rated Operational Current (AC-3) | 18 A at 440 V |
| Rated Operational Power (AC-3) | 7.5 kW at 400 V |
| Coil Voltage | 230 V AC 50/60 Hz |
| Coil Consumption (AC) | 7.5 VA (holding), 70 VA (inrush) |
| Mechanical Durability | 15 million operations |
| Electrical Durability (AC-3) | 1.5 million operations |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Maximum Switching Rate | 3600 cycles per hour |
| Operating Temperature | -5°C to +60°C |
| Mounting Support | 35 mm DIN rail or screw fixing |
| Number of Poles | 3P (3 NO) |
Product Description
It features a compact design, high reliability, and easy installation. The contactor is rated for 18A at 440V AC-3 utilization category, making it suitable for switching three-phase motors up to 7.5 kW (at 400V). It comes with a 230V AC 50/60Hz coil, ensuring compatibility with standard industrial control voltages. The LC1D18 is built with Schneider's renowned quality, offering a mechanical lifespan of up to 15 million operations and an electrical lifespan of up to 1.5 million cycles. Its modular design allows for easy addition of auxiliary contact blocks, surge suppressors, and other accessories. The contactor complies with international standards including IEC 60947-4-1 and UL/CSA, ensuring global acceptance. This contactor is part of the TeSys D series, known for its robustness and versatility. It can be used in various applications such as motor starting, lighting control, and power switching. The product is available as a new original part, ensuring long-term reliability and performance in demanding industrial environments. The Schneider LC1D18 is a 3-pole contactor from the TeSys D series, designed for controlling motors and other electrical loads in industrial automation applications.
Basic Product Information
- 230V AC 50/60Hz coil for standard control circuits
- Compact and modular design for easy installation
- High mechanical and electrical durability
- Complies with international standards (IEC, UL, CSA)
- Compatible with a wide range of TeSys D accessories
- 3-pole contactor with 18A rating (AC-3, 440V)
Technical Specifications
Version & Model Difference
The LC1D18 is part of the TeSys D series, which includes various coil voltage options (e.g., 24V AC, 110V AC, 230V AC, 24V DC) and different current ratings (LC1D09 to LC1D38). The LC1D18 specifically refers to the 18A version with a 230V AC coil. Other versions like LC1D18BD have a 24V DC coil. The physical dimensions and mounting are similar across the series, but coil voltage and current rating differ.
