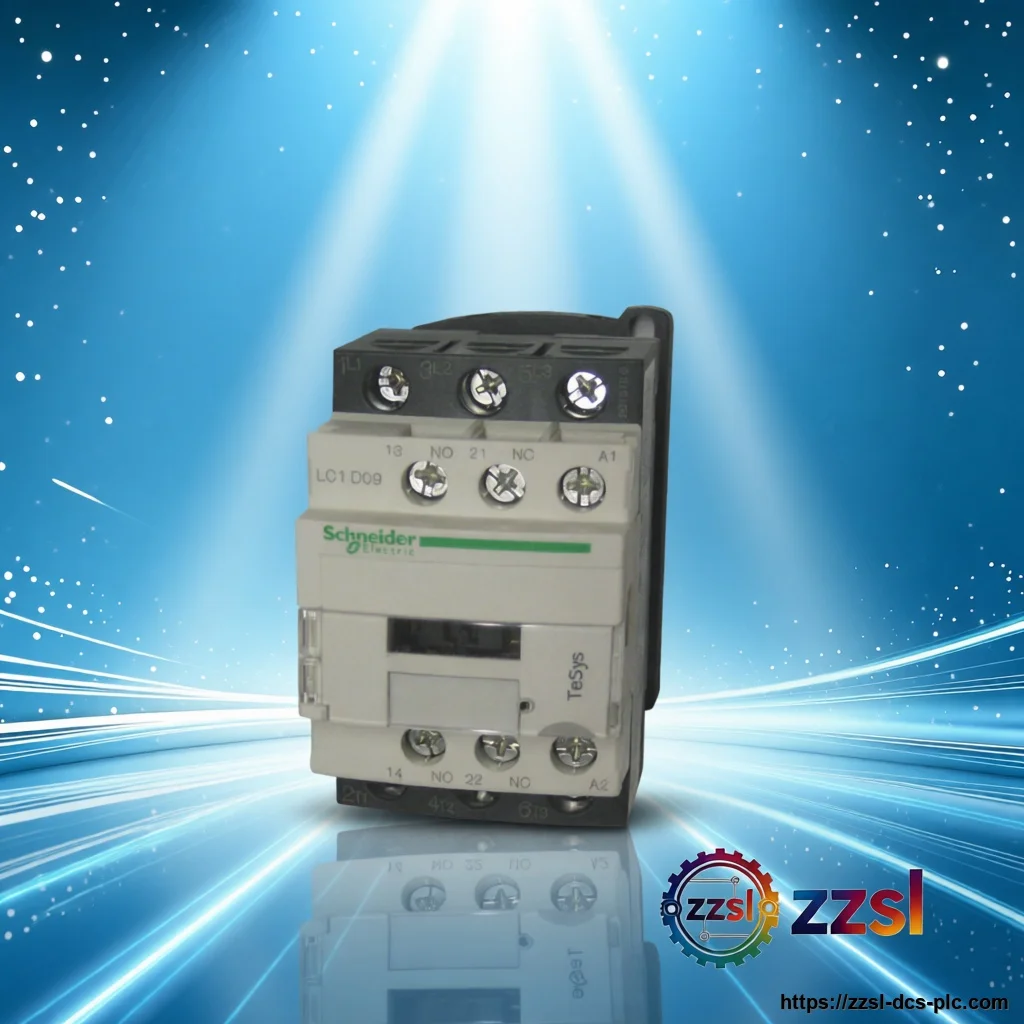

Schneider Component LC1D09E7C
Home > Products > Contactors > Schneider > LC1D09E7C Need Schneider LC1D09E7C? Component for TeSys D series. Supplied with full traceability and do…
Specifications
| Brand | Schneider |
|---|---|
| Model Number | LC1D09E7C |
| Official Product Name | Magnetic Contactor (EFH) |
| Applicable System | TeSys D series |
| Product Type | Component (Contactor) |
| Equivalent Standard | LC1D09E7, LC1D09E7B |
| Product Status | Active |
| Coil Voltage | 690 V |
| Coil Frequency | 50/60Hz |
| Number of Poles | 3P (3 NO main contacts) |
| Auxiliary Contacts | 1 NO + 1 NC (built-in) |
| Rated Insulation Voltage (Ui) | 690V |
| Rated Impulse Withstand Voltage (Uimp) | 6kV |
| Mechanical Durability | 30 million operations |
| Electrical Durability | 1.5 million operations (AC-3) |
| Mounting Type | Screw or DIN rail |
| Operating Temperature | -5 degC to +60 degC |
| Protection Degree | IP20 (with terminals) |
| Standards | IEC/EN 60947-4-1, UL, CSA, CCC, EAC, Marine |
| Electrical Durability (AC-3) | 2 million operations |
| Dimensions | 45 (W) x 77 (L) x 84 (D) |
| Rated Current (AC-3) | 9 A |
Product Description
Basic Product Information
- Coil voltage 48V AC, 50/60Hz for flexible control circuits
- Compact design for space-saving installation
- Durable construction for long service life
- Complies with IEC/EN 60947 standards
- Suitable for various applications including pumps, fans, and conveyors
- Rated operational current of 9A (AC-3) for motor control
Technical Specifications
Version & Model Difference
The LC1D09E7C is part of the TeSys D series. It is similar to LC1D09E7 and LC1D09E7B, but the 'C' suffix indicates a specific coil voltage (48V AC) and possibly additional certifications. The 'EFH' designation refers to the coil voltage code. There are no significant regional differences, but always verify the coil voltage and frequency for your application.
Application Scenarios
- Motor control in industrial machinery
- HVAC systems for compressor and fan control
- Pump and compressor control in water treatment plants
- Conveyor systems in material handling
- Replacement for existing TeSys D contactors in maintenance
- OEM applications requiring reliable switching
- Schneider LC1D150M7C Contactor (150A, 220VAC, 3-Pole)
- Schneider P343318H3M0368k MiCOM P343 Generator Protection Relay
- Schneider MiCOM P342 Generator Protection Relay - P342318L3M0368J
- Schneider P39191R00A Rotary Ground Injection Unit (Rotor Earth Fault Module)
- Schneider Electric MiCOM P991 Test Block (P991_22888911118889C)
- Schneider Electric MiCOM P643318E3M0A08K Transformer Differential Protection Relay
- Schneider Electric MiCOM P142 Feeder Management Relay
- Schneider Electric MiCOM P991 Test Block for Protection Schemes
Frequently Asked Questions
What is the rated current of the Schneider LC1D09E7C contactor?
The rated current is 9A (AC-3) for motor control applications.
What is the coil voltage of the LC1D09E7C?
The coil voltage is 48V AC, 50/60Hz.
Is the LC1D09E7C suitable for DC applications?
No, it is designed for AC applications only. For DC, use a DC coil contactor.
Can I use the LC1D09E7C with a thermal overload relay?
Yes, it is compatible with Schneider thermal overload relays such as LRD09 (up to 9A).
Need LC1D09E7C?
Get a Quote in Minutes.
12-month warranty · No MOQ · Worldwide shipping with tracking
Request a Quote
Get the latest price, stock status and bulk order discount for LC1D09E7C. Our team replies within 30 minutes (working hours).
