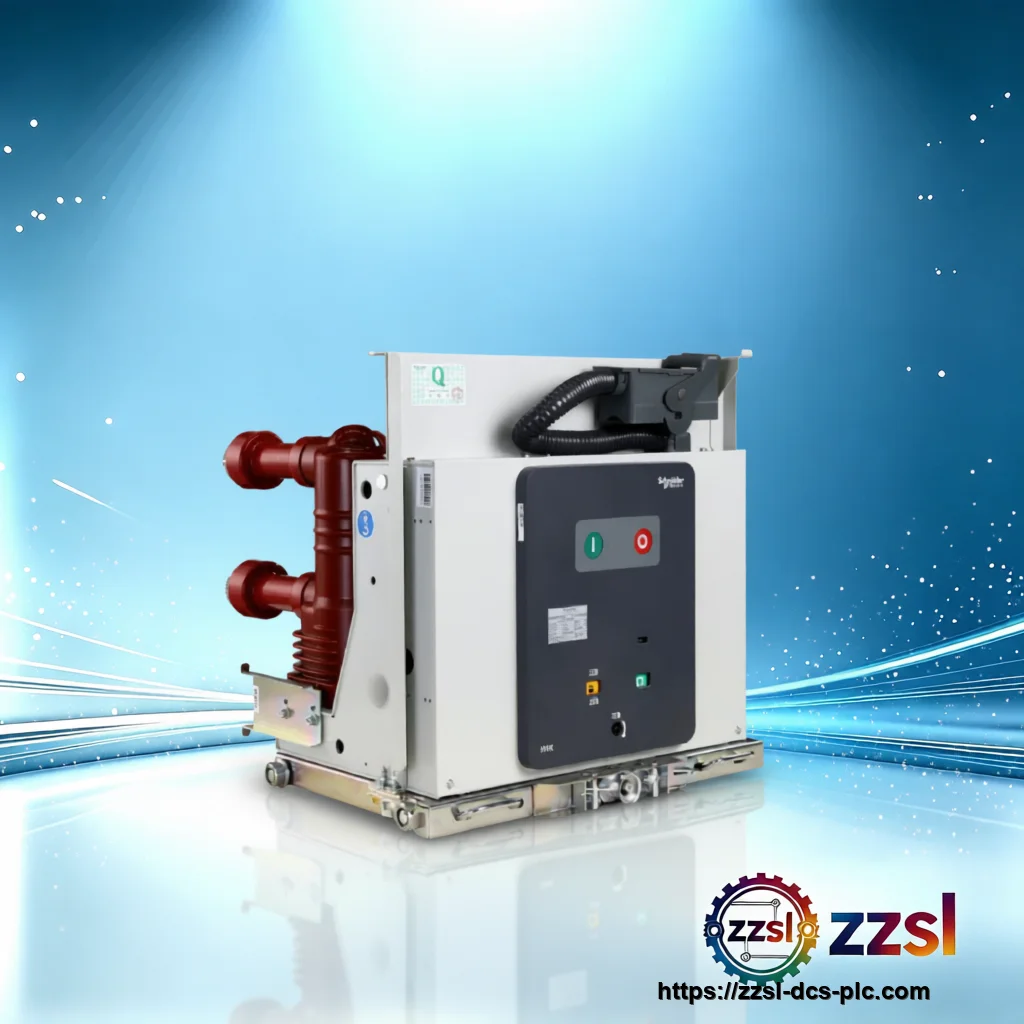

Schneider Complete HVX12-50-40-E275 Sr No: 2000679311/70/001
Schneider Electric
Schneider Complete HVX12-50-40-E275 Sr No: 2000679311/70/001
Home > Products > Circuit Breakers > Schneider > HVX12-50-40-E275 Need Schneider HVX12-50-40-E275 Sr No: 2000679311/70/001? Complete Unit for Mediu…
Contact us for current availability and best price of HVX12-50-40-E275-Sr-No-200067931170001.
Specifications
| Brand | Schneider |
|---|---|
| Model Number | HVX12-50-40-E275 |
| Official Product Name | Vacuum Circuit Breaker 4000A 6.6kV |
| Applicable System | Medium Voltage Switchgear |
| Product Type | Complete Unit |
| Equivalent Standard | Contact us for details |
| Product Status | Active |
| Lifecycle note | Available (New/Used) |
| Rated Current | 4000 A (with forced cooling) |
| Rated Short Circuit Breaking Current | 50kA |
| Rated Frequency | 50 Hz |
| Closing Coil (F2) | DC110V |
| Tripping Coil (F11) | DC110V |
| Anti-Pumping Relay (K01) | DC110V |
| Charging Motor | 110V AC/DC |
| Vacuum Bottle Type | VG5X |
| Vacuum Bottle Serial Number | LC143010LC31 |
| Manufacturer | Schneider Electric (Xiamen) Switchgear Co Ltd |
| Serial Number | 2000679311/70/001 |
| Certifications | IEC 62271-100 / GB 3906 |
| Country of Origin | China |
| Rated Voltage | 12 kV |
Product Description
Basic Product Information
- Short circuit breaking capacity of 50kA ensures reliable interruption under fault conditions.
- Operating mechanisms with DC110V closing coil (F2), tripping coil (F11), and anti-pumping relay (K01).
- Charging motor rated at 110V AC/DC for flexible power supply compatibility.
- Vacuum bottle type VG5X with serial number LC143010LC31, ensuring proven arc quenching performance.
- Manufactured by Schneider Electric (Xiamen) Switchgear Co Ltd, meeting international quality standards.
- Rated voltage of 12kV and rated current of 4000A for high-capacity applications.
Technical Specifications
Version & Model Difference
This model HVX12-50-40-E275 is a specific variant with 4000A rating and 50kA breaking capacity. Other versions may have different current ratings (e.g., 1250A, 2000A, 3150A) or breaking capacities (e.g., 25kA, 31.5kA, 40kA). The control voltage options may also vary (e.g., DC220V, AC220V). This unit is configured with DC110V control circuits and a 110V AC/DC charging motor.
Application Scenarios
- Power distribution in industrial plants and commercial buildings
- Medium voltage switchgear for utility substations
- Replacement of existing circuit breakers in retrofit projects
- Use in generator protection and feeder protection applications
- Suitable for mining, marine, and infrastructure projects requiring high reliability
