EA9L209F230

Product Description

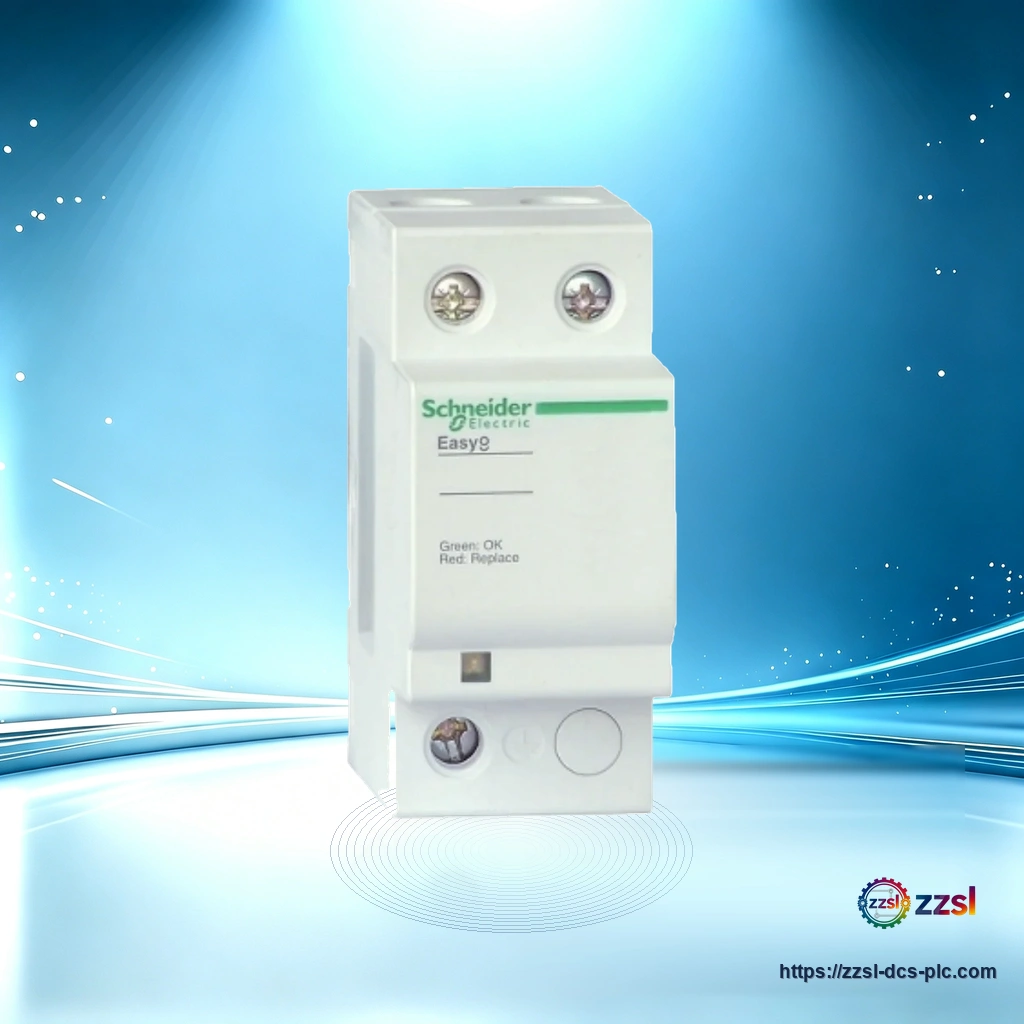

Home / Surge Protection / Type 2 SPD / Schneider EA9L209F230 Need Schneider EA9L209F230? Surge protection device for Low-voltage single-phase distribution boards. Supplied with full traceability and documentation.... Price & Availability Classified as a surge protection device, it is positioned as a direct replacement and service part for existing installations. It is intended for use within Low-voltage single-phase distribution boards, where dependable operation and a precise fit are essential to keeping the plant running. Listed as Contact for availability, it is offered as a maintained and verified spare that supports the continued operation of the installed base. Key technical specifications include: The Poles is 1P+N. Its Network rated voltage Un is rated at 230 / 400 V AC. For reference, the Maximum continuous operating voltage Uc is 340 V AC. The Maximum discharge current Imax (8/20 us) is 20 kA. Its Voltage protection level Up is rated at 1.2 kV. For reference, the Response time is < 25 ns. The Width is 4 modules (9 mm pitch). Its Operating temperature is rated at -25 to +60 deg C. For reference, the Standards is GB18802.1 / IEC 61643-1. The Country of origin is Contact supplier for exact specifications. Notable features of this unit: Type 2 surge protection for 230 V single-phase networks. Maximum discharge current Imax 20 kA (8/20 us). 1P+N compact module, 4 modules wide (9 mm pitch). Mechanical indicator window: green = normal, red = to be replaced. Response time less than 25 ns. Typical applications include Surge protection for residential and small commercial buildings, Secondary (Type 2) protection in low-voltage panels, Protection of distribution systems and electronic equipment. It is compatible with or cross-references Schneider Easy 9 distribution boards, Schneider Acti 9 / Easy 9 circuit breakers, Type 1 + Type 2 combined surge protection systems. Equivalent / cross-reference designation: GB18802.1 / IEC 61643-1. The EA9L range includes 20 kA, 40 kA and 65 kA Imax variants and 1P+N or 3P+N pole counts. The EA9L209F230 is the 20 kA, 1P+N model. Confirm the required Imax class with the supplier. Within industrial automation and process-control environments, components of this type are relied upon to keep critical equipment operating safely and efficiently. They are typically specified where uptime, repeatability and a predictable maintenance cycle matter more than upfront cost. A surge protection device such as this one forms part of a larger machine or system, so correct identification and fitment directly affect the performance and safety of the whole installation. Schneider parts are widely used across power generation, manufacturing, oil and gas, water and process industries, where engineering teams standardise on proven series to simplify spares planning. When selecting a replacement, confirm the exact model designation and verify that the mechanical and electrical interface matches the unit currently installed. Cross-checking the order code, mounting style and connection type against the existing device helps avoid compatibility issues and unplanned downtime during a maintenance window. Where several variants exist, the suffix often defines voltage, range or firmware, so it should be matched precisely rather than approximated. This item is offered from our active stock of current and discontinued industrial parts. Each listing is verified against the manufacturer designation before shipment so you receive the correct part for your application. Availability and lead time vary by item; our team can confirm the fastest option for your required quantity and provide a formal quotation on request. Common questions: Regarding "How do I know when it needs replacement": A mechanical indicator window shows green during normal operation and red when the device must be replaced. Regarding "Which standard does it comply with": It conforms to GB18802.1 / IEC 61643-1. Please contact us to confirm current pricing, availability and delivery for your required quantity; volume and project pricing are available on request. The Schneider EA9L209F230 is a surge protection device. Basic Product Information Maximum discharge current Imax 20 kA (8/20 us) 1P+N compact module, 4 modules wide (9 mm pitch) Mechanical indicator window: green = normal, red = to be replaced Response time less than 25 ns Type 2 surge protection for 230 V single-phase networks Technical Specifications Version & Model Difference The EA9L range includes 20 kA, 40 kA and 65 kA Imax variants and 1P+N or 3P+N pole counts. The EA9L209F230 is the 20 kA, 1P+N model. Confirm the required Imax class with the supplier. Application Scenarios Surge protection for residential and small commercial buildings Secondary (Type 2) protection in low-voltage panels Protection of distribution systems and electronic equipment How do I know when it needs replacement? A mechanical indicator window shows green during normal operation and red when the device must be replaced. Which standard does it comply with? It conforms to GB18802.1 / IEC 61643-1. Is a datasheet available? Yes, Schneider publishes the Easy 9 catalogue with the EA9L data. Contact the supplier for the document and stock. What is the maximum discharge current of the EA9L209F230? It is rated Imax 20 kA (8/20 us) with a nominal discharge current In of 10 kA. Schneider LC1D150M7C Contactor (150A, 220VAC, 3-Pole) Schneider P343318H3M0368k Generator Differential Prot Schneider P342318L3M0368J Generator Backup Prot Schneider P39191R00A Rotary Ground Injection Unit Schneider P991_22888911118889C Test Block Schneider P643318E3M0A08K Transforme Differential Prot Schneider P142318M0468J Transformer Backup Protection Schneider P991-8889888922889C Test Block
