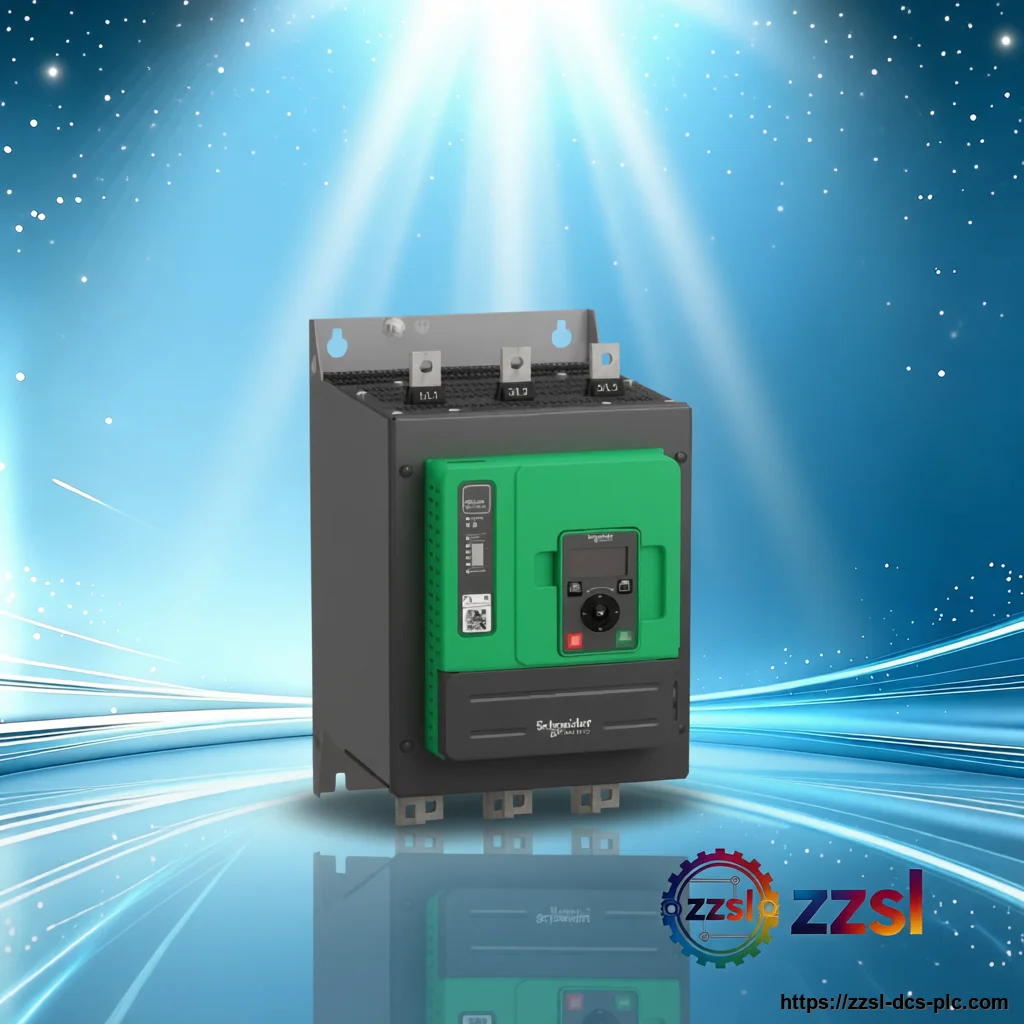

SCHNEIDER Soft starter ATS480C66Y
ATS480C66Y
Schneider Electric
SCHNEIDER Soft starter ATS480C66Y
Home > Products > Schneider > Soft Starter SCHNEIDER ATS480C66Y Soft starter. For Asynchronous motor soft starting and stopping. Supplied with full tr…
Contact us for current availability and best price of ATS480C66Y.
Specifications
| Brand | Schneider Electric |
|---|---|
| Model Number | ATS480C66Y |
| Official Product Name | Altistart 480 Soft Starter 660A |
| Applicable System | Asynchronous motor soft starting and stopping |
| Product Type | Soft starter (motor starter) |
| Equivalent Standard | IEC 60947-4-2 |
| Product Status | Active |
| Rated Current (heavy duty) | 590 A at 40 deg C |
| Supply Voltage | 208 to 690 V AC |
| Control Circuit Voltage | 110 to 230 V AC |
| Motor Power | Up to 630 kW (in-line), up to 900 kW (inside delta) |
| Protection | IP00 |
| Dimensions (H x W x D) | 670 x 400 x 314 mm |
| Net Weight | 51.4 kg |
| Rated Current (normal duty) | 660 A at <=40 deg C |
Product Description
It uses torque control for smooth motor starting of asynchronous motors up to 630 kW. The ATS480C66Y is a Schneider Electric Altistart 480 soft starter rated 660 A (normal duty at 40 deg C, 590 A heavy duty), 208 to 690 V AC, control supply 110 to 230 V AC.
Basic Product Information
- Torque control (TCS) for smooth starting and stopping
- Supports in-line and inside-delta (up to 900 kW) connection
- Integrated Modbus and EcoStruxure connectivity
- Marine / class certifications (DNV, ABS, BV, CCS)
- 660 A rated current, 208-690 V AC three-phase
Technical Specifications
Version & Model Difference
Part of the Altistart 480 (ATS480) range. The predecessor was the Altistart 48 (ATS48) family. The prefix letter and suffix define current and voltage; confirm current rating and enclosure needs when replacing.
Application Scenarios
- Large water pump stations and sewage treatment
- Mining crushers and heavy conveyor systems
- Marine propulsion and shipboard motors
- High-power fan and compressor starting
- Schneider Electric ATV630C16N4 Altivar Process Drive
- Schneider Electric ATV610D55N4 Altivar 610 Drive
- Schneider LC1G800KUEN TeSys Giga Contactor
Frequently Asked Questions
What is the current rating of the ATS480C66Y?
It is 660 A normal duty at 40 deg C (590 A heavy duty) for three-phase 208-690 V AC.
How much motor power can it drive?
Up to 630 kW in-line and up to 900 kW in inside-delta connection.
What control voltage does it use?
The control circuit is 110 to 230 V AC, 50/60 Hz.
What are its dimensions and weight?
670 x 400 x 314 mm, net weight 51.4 kg, IP00 protection.
