Rittal
Rittal Accessory SK 3322.100
Home > Products > Rittal > Filter Fans > SK 3322.100 Need Rittal SK 3322.100? Accessory for Enclosure cooling systems, control panels, electrical c…
Specifications
| Brand | Rittal |
|---|---|
| Model Number | SK 3322.100 |

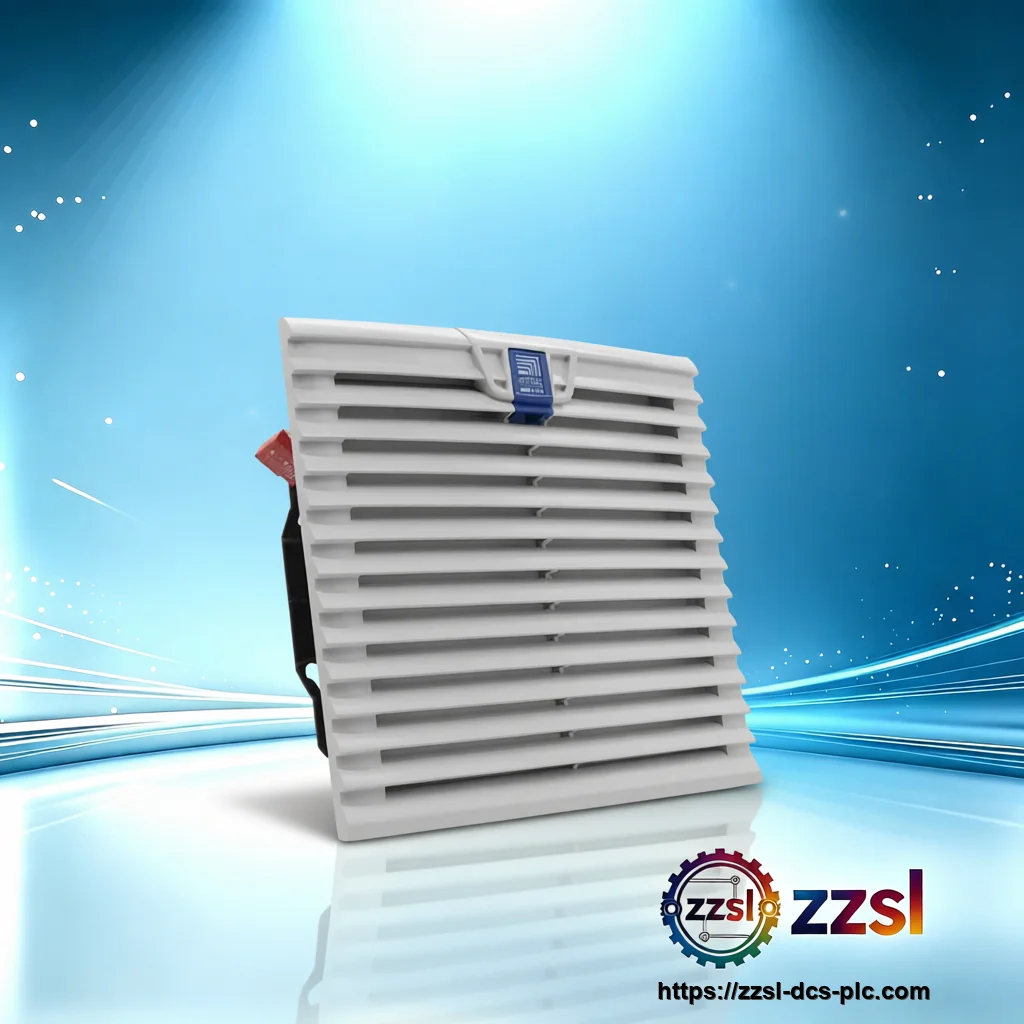

| Official Product Name | Filter Fan for Panel (EFH) |
| Applicable System | Enclosure cooling systems, control panels, electrical cabinets |
| Product Type | Accessory (Filter Fan) |
| Equivalent Standard | SK 3322.110, SK 3322.200 (if applicable) |
| Product Status | Active |
| Frequency | 50/60Hz |
| Power Consumption | 19 / 18 W |
| Dimension (WxH) | 149x149mm |
| IP Rating | IP43 (upgradeable to IPX5) |
| Air Flow Rate | Contact us for details |
| Noise Level | 46 / 49 dB(A) |
| Operating Temperature | Contact us for details |
| Weight | 0.6 kg (distributor); 0.715 kg (another distributor) |
| Material | Heat-resistant plastic, UL94-V0 |
| Air Flow | 55 / 66 m3/h (unimpeded) |
| Rated Current | 0.12 / 0.11 A |
| Rated Voltage | 230 V AC, 50/60 Hz |
Product Description
58.00 USD （参考价 / est. market price）
Basic Product Information
- Cutout dimension 149x149mm, compact design for panel mounting
- IP54 protection against dust and water splashes
- Provides efficient air circulation for heat dissipation
- Easy installation with standard mounting hardware
- Reliable performance for continuous industrial operation
- Rated voltage 230V AC, 50/60Hz, power consumption 18/19W
Technical Specifications
Version & Model Difference
The SK 3322.100 is part of the Rittal EFH series. There are variations such as SK 3322.110 (with different voltage) and SK 3322.200 (with different dimensions). This model is specifically designed for 230V AC operation and 149x149mm cutout. Ensure compatibility with your enclosure before ordering.
Application Scenarios
- Ventilation of electrical control panels in industrial automation
- Cooling of PLC cabinets in manufacturing plants
- Heat dissipation in telecommunication enclosures
- Air circulation in HVAC control systems
- Replacement of existing filter fans in maintenance operations
