Phoenix Contact · PLC Module

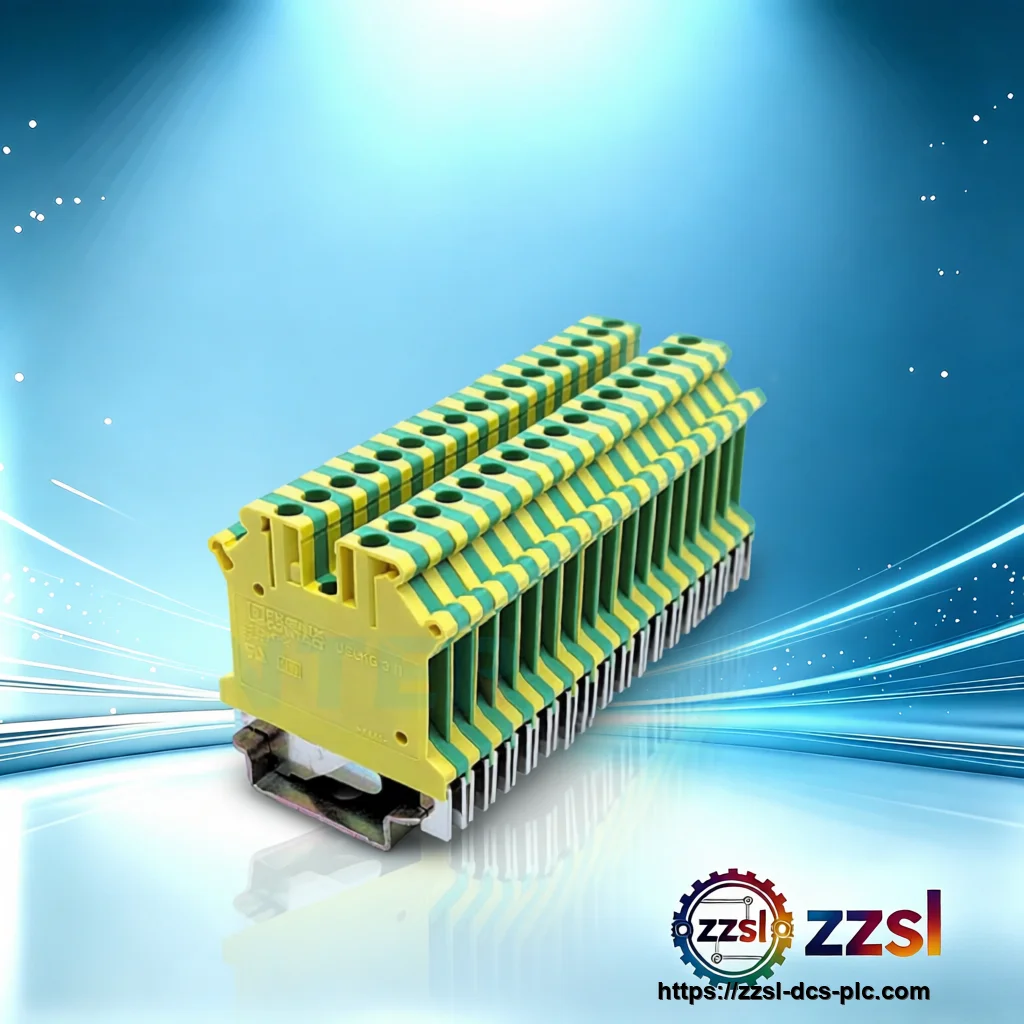

Phoenix Contact Ground terminal block USLKG3
USLKG3-block
Phoenix Contact
Phoenix Contact Ground terminal block USLKG3
Need Phoenix Contact USLKG3? Ground terminal block for Earthing and protective conductor distribution. Price & Availability It is intended for use within …
Current Model
Price on Request
Contact us for current availability and best price of USLKG3-block.
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | USLKG 3 (article 0441083) |
| Official Product Name | Protective conductor terminal block |
| Applicable System | Earthing and protective conductor distribution |
| Product Type | Ground terminal block |
| Equivalent Standard | IEC 60947-7-2 |
| Product Status | Active |
| Lifecycle note | Commercialized |
| Nominal cross section | 2.5 mm2 |
| Connection cross section | 0.2 mm2 - 4 mm2 (AWG 24-12) |
| Connection method | Screw connection |
| Mounting | NS 35/7.5, NS 35/15, NS 32 |
| Color | green-yellow |
| Rated surge voltage | 8 kV |
| Width | 5.2 mm |
| Height | 42.5 mm |
| Number of connections | 2 |
Product Description
Basic Product Information
- Screw connection for reliable wiring
- Green-yellow insulation for easy identification
- Wide approvals including UL, cULus, CSA, DNV, ATEX/IECEx
- PE foot for direct DIN-rail grounding
Technical Specifications
Version & Model Difference
- ['USLKG 3 = 2.5 mm2 nominal ground terminal', 'USLKG 2.5 / 5 / 10 variants cover other cross sections', 'Feed-through versions available in the UK / ST families']
Application Scenarios
- Protective earthing in control panels
- Railway and transportation applications
- Industrial automation wiring
