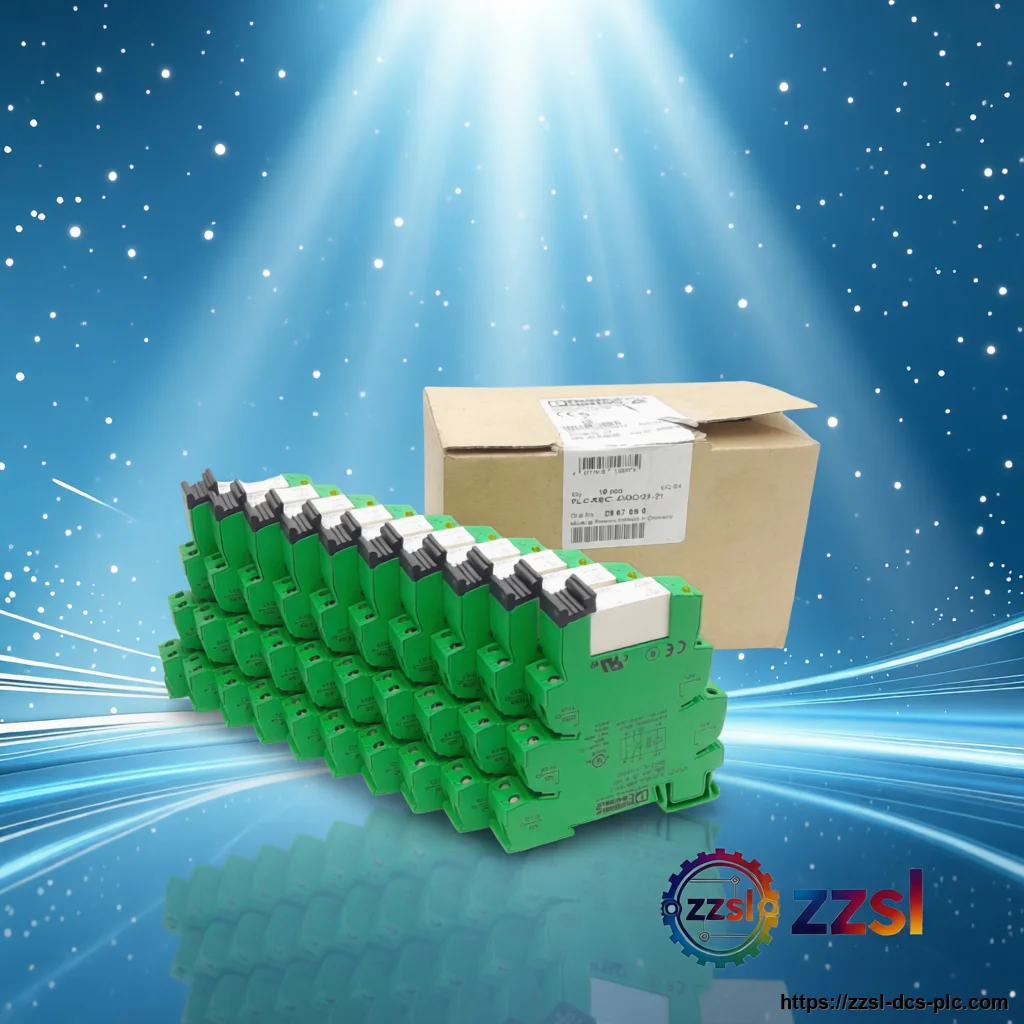

Phoenix Contact Electromechanical relay module 2967060
2967060
Phoenix Contact
Phoenix Contact Electromechanical relay module 2967060
['Home', 'Relays', 'Phoenix Contact', 'PLC-RSC', '2967060'] Need Phoenix Contact 2967060? Electromechanical r…
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2967060 (PLC-RSC-24DC/21-21) |
| Official Product Name | PLC-RSC-24DC/21-21 Relay Module |
| Applicable System | General-purpose relay switching and interfacing |
| Product Type | Electromechanical relay module |
| Equivalent Standard | Contact us for details |
| Product Status | Active |
| Contact type | 2 changeover contacts (2PDT) |
| Contact material | AgNi |
| Max. switching voltage | 250 V AC / 250 V DC |
| Limiting continuous current | 6 A |
| Coil current | 18 mA |
| Power dissipation | Approx. 0.43 W |
| Connection | Screw connection |
| Dimensions (W x H x D) | 14 x 80 x 94 mm (approx.) |
| Operating temperature | -40 to +60 deg C |
| Coil voltage | 24 V DC |
Product Description
Basic Product Information
- 2 changeover contacts (2PDT), AgNi contacts
- 24 V DC coil with LED indicator and suppression diode
- DIN rail mounting; wide accessory and bridging system
- PLC-INTERFACE relay module with screw connection
Technical Specifications
Version & Model Difference
- Belongs to the PLC-RSC family with common bridging; for the base-only version see 2966016. Confirm contact rating and coil voltage for your load.
Application Scenarios
- Control and interfacing of loads
- Signal isolation and amplification
- General machine and panel switching
- Phoenix Contact UK 5-HESILA 250 Fuse Terminal Block
- Phoenix Contact UK 5-HESILA 24 Fuse Terminal Block
- Phoenix Contact ST 1.5 Feed-Through Terminal Block
- Phoenix Contact 1404408 SAC-4P-5,0-PVC/M12FS Sensor/Actuator Cable, 5 m
- Phoenix Contact 3101197 MTK BU Knife-Disconnect Terminal Block
- Phoenix Contact 2966061 PLC-BSC-24DC/1/SEN Relay Base
- Phoenix Contact 2901535 RAD-DI4-IFS Radioline Digital I/O Extension Module
Frequently Asked Questions
What coil and contacts does the 2967060 have?
It has a 24 V DC coil and 2 changeover contacts (2PDT) rated 6 A with AgNi contact material.
What are its dimensions and connection?
It measures about 14 x 80 x 94 mm, uses screw connection and mounts on a DIN rail with an LED indicator and suppression diode.
Is it the same as the 2966016 base?
No; 2966016 is the base only, while 2967060 is the complete relay module with the plug-in miniature relay.
What is the switching voltage?
Contacts switch up to 250 V AC or 250 V DC; verify the breaking capacity for your load with the supplier.
