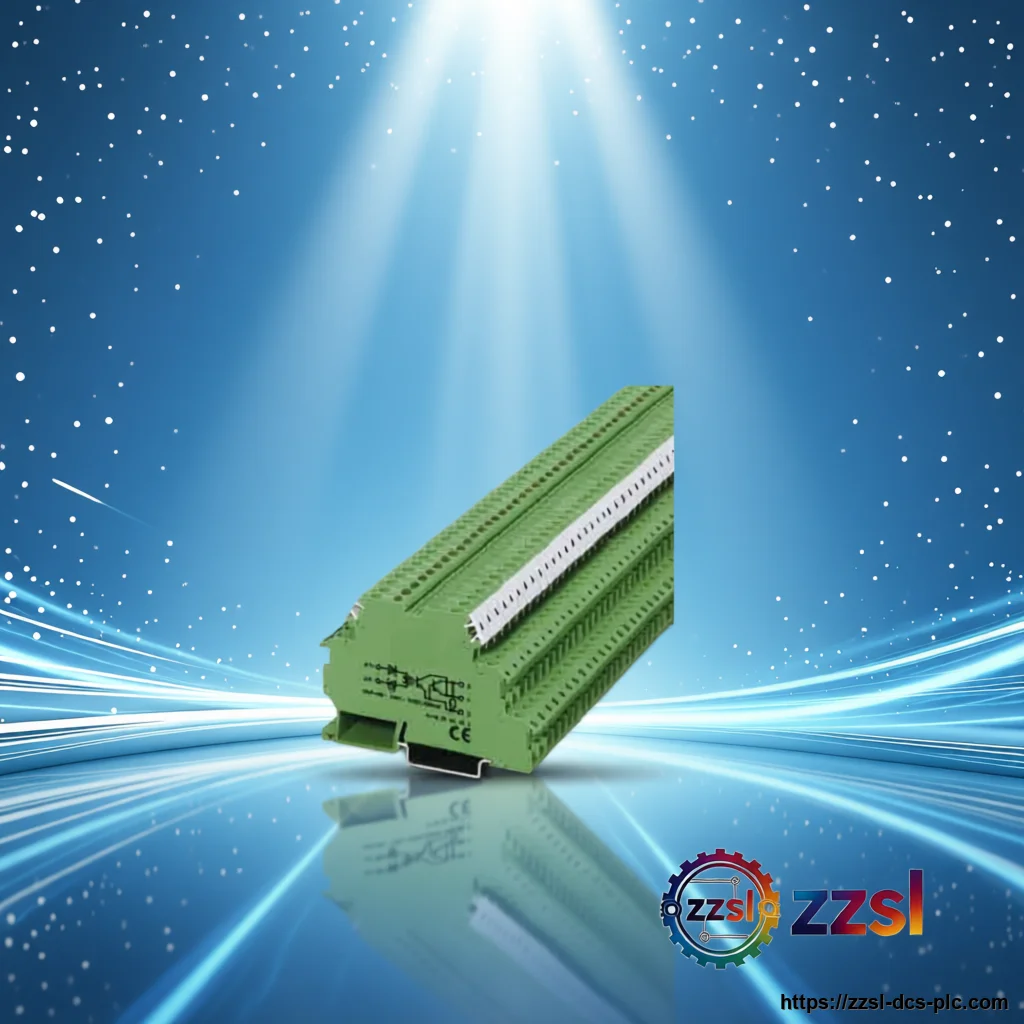

Phoenix Contact Solid-State Relay 2964283
Home > Phoenix Contact > Solid-State Relays > 2964283 Need Phoenix Contact 2964283? Solid-State Relay for 24 V DC signal interfacing and isolation. Su…
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2964283 |
| Official Product Name | DEK-OE-24DC/24DC/100KHZ |
| Applicable System | 24 V DC signal interfacing and isolation |
| Product Type | Solid-State Relay (Input Optocoupler) |
| Equivalent Standard | IEC 60947-5-1 |
| Product Status | In Stock |
| Input current | approx. 6 mA |
| Output voltage | 4-30 V DC |
| Output current | max. 50 mA |
| Contact configuration | 1 NO (SPST-NO) |
| Transmission frequency | 100 kHz |
| Response time | approx. 1.5 microseconds |
| Test voltage | 2.5 kV AC |
| Connection | Screw terminals, 0.2-2.5 mm2 |
| Dimensions (W x H x D) | 6.2 x 80 x 56 mm |
| Operating temperature | -20 C to +60 C |
| Mounting | DIN rail |
| EAN | 4017918107413 |
| Input voltage | 24 V DC (control range 19.2-28.8 V DC) |
Product Description
With no moving parts, it offers a very long service life and a high transmission frequency of up to 100 kHz, making it well suited to fast signal interfacing such as PLC counter and encoder inputs. It includes LED status indication and protective circuits in both the input and output sections. The Phoenix Contact 2964283 is the DEK-OE-24DC/24DC/100KHZ input solid-state relay, a DIN rail terminal-block module that switches a 4-30 V DC output circuit from a 24 V DC control input.
Basic Product Information
- High transmission frequency up to 100 kHz with a response time of about 1.5 microseconds
- No moving parts for wear-free, long-life switching
- LED indicator plus protective circuits in the input and output sections
- Reverse-polarity, surge and suppression-diode protection
- DIN rail mounting with screw connection in a narrow 6.2 mm width
- Optocoupler input solid-state relay for 24 V DC control signals
Technical Specifications
Version & Model Difference
The 2964283 is the DEK-OE-24DC/24DC/100KHZ input solid-state relay within the DEK terminal-block relay family. Related DEK-OE variants differ in voltage and frequency rating; confirm the input/output voltage and switching frequency when selecting a replacement.
Application Scenarios
- PLC input signal isolation and level conversion
- Sensor signal interfacing and electrical isolation
- High-speed pulse and counter input circuits
- Motor control cabinets, drives and auxiliary signal circuits
- Phoenix Contact UK 5-HESILA 250 Fuse Terminal Block
- Phoenix Contact UK 5-HESILA 24 Fuse Terminal Block
- Phoenix Contact ST 1.5 Feed-Through Terminal Block
- Phoenix Contact 1404408 SAC-4P-5,0-PVC/M12FS Sensor/Actuator Cable, 5 m
- Phoenix Contact 3101197 MTK BU Knife-Disconnect Terminal Block
- Phoenix Contact 2966061 PLC-BSC-24DC/1/SEN Relay Base
- Phoenix Contact 2901535 RAD-DI4-IFS Radioline Digital I/O Extension Module
Frequently Asked Questions
What is the Phoenix Contact 2964283?
It is a DEK-OE input solid-state relay that switches a 4-30 V DC output from a 24 V DC control input.
What is the maximum switching frequency of the 2964283?
It supports a transmission frequency of up to 100 kHz with a response time of about 1.5 microseconds.
What output current can the 2964283 drive?
The output can switch up to 50 mA at 4-30 V DC.
How is the 2964283 mounted and wired?
It mounts on a DIN rail and uses screw terminals accepting 0.2-2.5 mm2 conductors.
