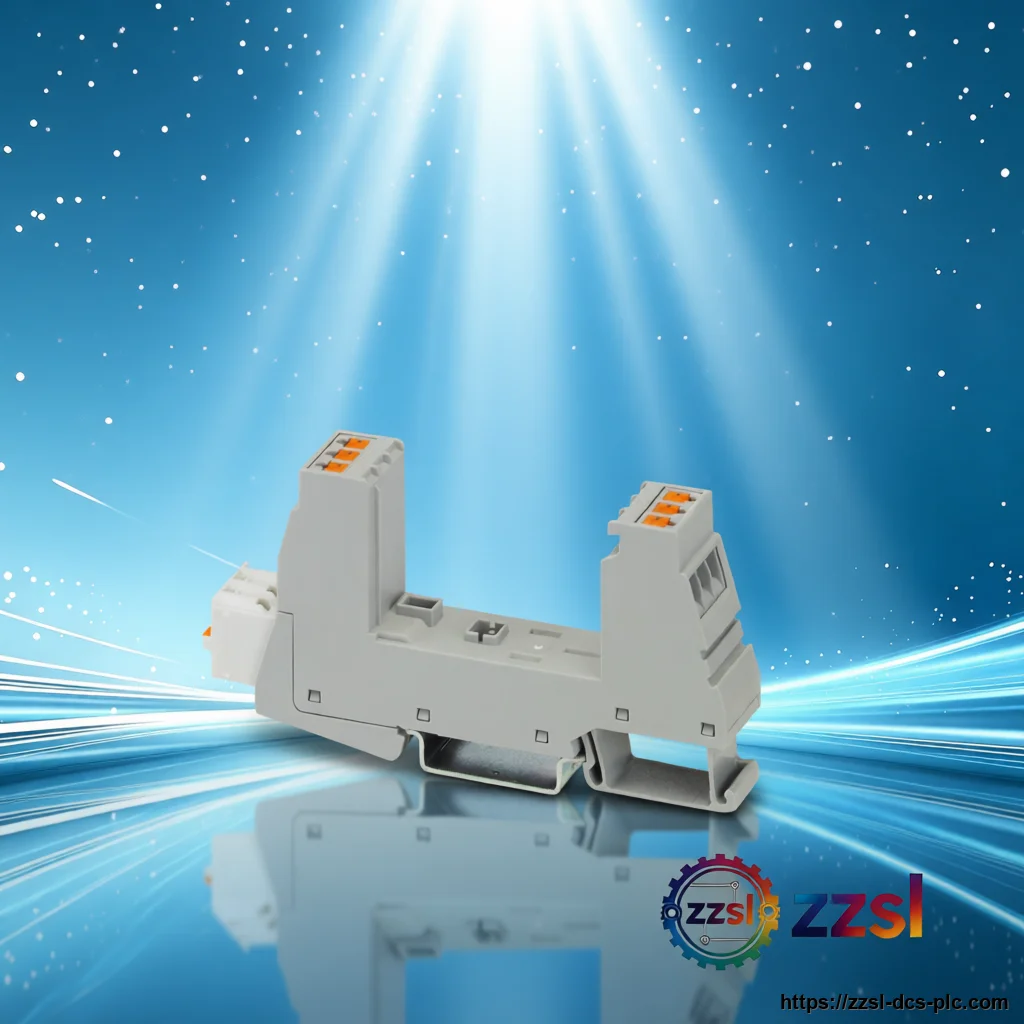

Phoenix Contact Surge protection device , 2907928
Phoenix Contact
Phoenix Contact Surge protection device , 2907928
Home > Phoenix Contact > Surge Protection > 2907928 Need Phoenix Contact 2907928? Surge protection device , DIN rail module for Single-phase power sup…
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2907928 |
| Official Product Name | PLT-SEC-T3-230-FM-PT Type 3 Surge Protection Device |
| Applicable System | Single-phase power supply networks (TN-S / TT), 230 V AC/DC |
| Product Type | Surge protection device (Type 2/3), DIN rail module |
| Equivalent Standard | IEC / EN 61643 type T2/T3, overvoltage category III |
| Product Status | In Stock |
| Type | DIN rail module, two-section, divisible |
| Number of Positions | 2 |
| Connection Method | Push-in connection |
| Conductor Cross-Section (flexible) | 0.2 mm2 ... 2.5 mm2 |
| Conductor Cross-Section (rigid) | 0.2 mm2 ... 4 mm2 |
| Conductor Cross-Section (AWG) | 24 ... 12 |
| Nominal Voltage (UN) | 240 V AC (TN-S / TT) |
| Nominal Frequency | 50 Hz (60 Hz) |
| Maximum Continuous Voltage (UC) | 264 V AC |
| Rated Load Current (IL) | 26 A (at 30°C) |
| Nominal Discharge Current In (8/20 us) | 5 kA |
| Maximum Discharge Current Imax (8/20 us) | 10 kA |
| Combination Wave (UOC) | 6 kV |
| Voltage Protection Level Up (L-N) | ≤ 1.25 kV (at UOC) |
| Response Time tA (L-N) | ≤ 25 ns |
| Short-Circuit Current Rating | 10 kA AC |
| Dimensions (W x H x D) | 17.7 x 101 x 74.5 mm |
| Degree of Protection | IP20 |
| Ambient Temperature | -40°C ... +80°C |
| Product Family | SEC (PLT-SEC) |
Product Description
It combines a replaceable protective plug with a base element and uses Push-in connection technology for fast, tool-free wiring. An integrated optical status indicator and a remote signaling changeover contact allow quick fault reporting to a controller. The device protects the L-N and N-PE paths in TN-S and TT systems and carries a rated load current of 26 A at 30°C. It mounts on DIN rail as a two-section, divisible module within the Phoenix Contact SEC surge protection family. The Phoenix Contact 2907928 (PLT-SEC-T3-230-FM-PT) is a type 2/3 surge protection device for single-phase 230 V AC/DC power supply networks.
Basic Product Information
- Two-section, divisible DIN rail module with a replaceable protective plug
- Push-in connection for flexible 0.2-2.5 mm2 and rigid 0.2-4 mm2 conductors (AWG 24-12)
- Integrated optical status indicator plus a remote signaling changeover contact
- Protects L-N, L-PE and N-PE paths with a rated load current of 26 A
- Type 2/3 surge protection for single-phase 230 V AC/DC power supplies
Technical Specifications
Version & Model Difference
The 2907928 is the PT (Push-in) version with remote signaling in the PLT-SEC-T3-230 family. Related variants share the same 230 V three-stage protection concept but differ in connection technology or signaling options; confirm the exact variant against the Phoenix Contact type key before ordering.
Application Scenarios
- End-device protection in industrial control cabinets fed from a single-phase 230 V AC/DC supply
- Protecting PLC, power supply and field devices from surge transients
- TN-S and TT single-phase power distribution with remote fault signaling to a controller
- Replacement of type 2 or type 3 surge devices in existing DIN rail installations
- Phoenix Contact UK 5-HESILA 250 Fuse Terminal Block
- Phoenix Contact UK 5-HESILA 24 Fuse Terminal Block
- Phoenix Contact ST 1.5 Feed-Through Terminal Block
- Phoenix Contact 1404408 SAC-4P-5,0-PVC/M12FS Sensor/Actuator Cable, 5 m
- Phoenix Contact 3101197 MTK BU Knife-Disconnect Terminal Block
- Phoenix Contact 2966061 PLC-BSC-24DC/1/SEN Relay Base
- Phoenix Contact 2901535 RAD-DI4-IFS Radioline Digital I/O Extension Module
Frequently Asked Questions
What is the Phoenix Contact 2907928?
It is the PLT-SEC-T3-230-FM-PT, a type 2/3 surge protection device for single-phase 230 V AC/DC power networks with push-in wiring and remote signaling.
What are the rated voltage and load current?
The nominal voltage is 240 V AC (50/60 Hz) with a maximum continuous voltage of 264 V AC, and the rated load current is 26 A at 30°C.
Does it provide remote fault signaling?
Yes. It has an optical status indicator and a changeover remote signaling contact rated 250 V AC / 125 V DC (0.5 A).
What connection technology does it use?
It uses Push-in connection, accepting flexible conductors from 0.2 to 2.5 mm2 and rigid conductors from 0.2 to 4 mm2 (AWG 24-12).
