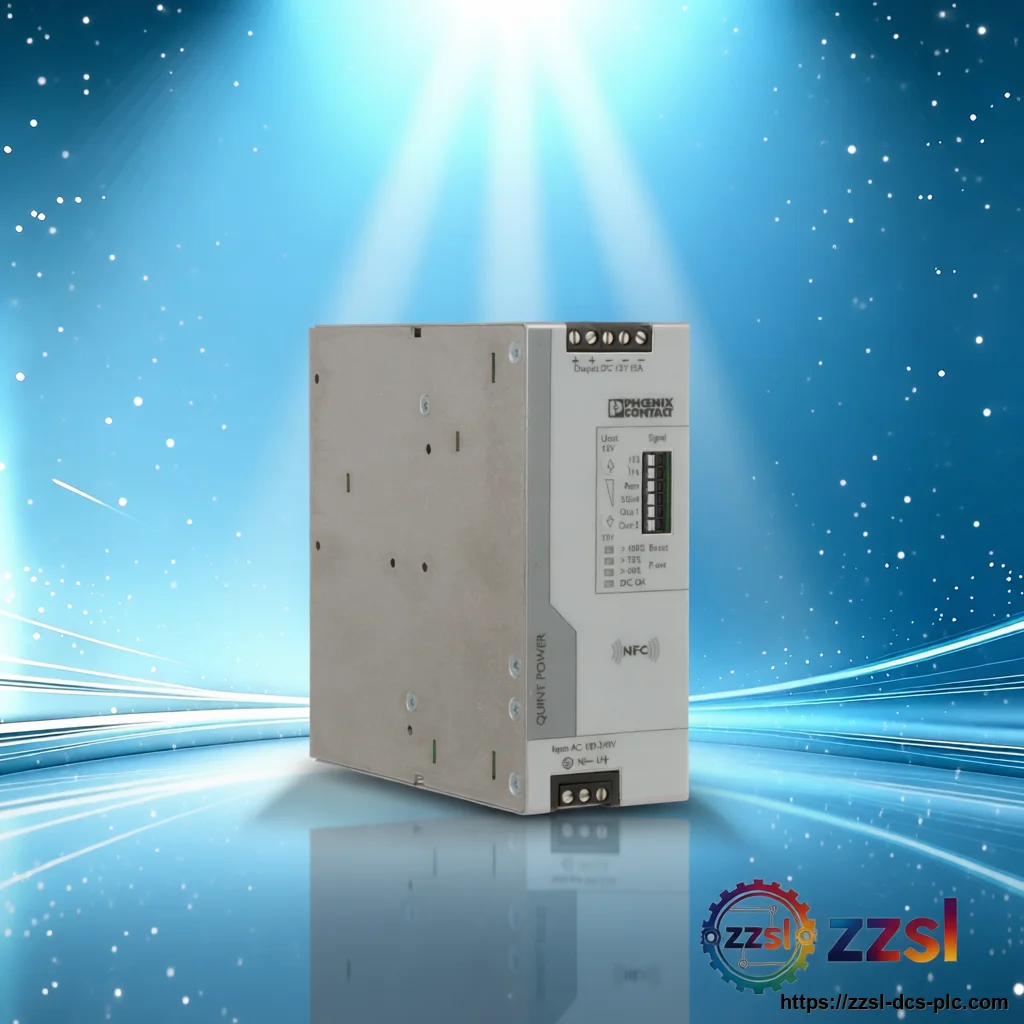

Phoenix Contact Primary-switched DIN rail power 2904608
Home > Phoenix Contact > Power Supplies > 2904608 Need Phoenix Contact 2904608? Primary-switched DIN rail power supply for Single-phase DIN rail DC po…
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2904608 |
| Official Product Name | QUINT4-PS/1AC/12DC/15 |
| Applicable System | Single-phase DIN rail DC power distribution for automation and control cabinets |
| Product Type | Primary-switched DIN rail power supply |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Output current | 15 A |
| Output power | 240 W |
| Input voltage (AC) | 100-240 V AC |
| Input voltage (DC) | 110-250 V DC |
| Efficiency | approx. 92% (91.2%) |
| Isolation voltage | 4 kV |
| Degree of protection | IP20 |
| Dimensions (L x W x H) | 125 x 50 x 130 mm |
| Mounting | DIN rail |
| Operating temperature | -25 degC to +70 degC (with derating) |
| Approvals | CSA, UL; Class I Div 2; 508; 60950-1 |
| Output voltage | 12 V DC (adjustable) |
Product Description
It accepts a wide AC or DC input (100-240 V AC / 110-250 V DC) and uses Dynamic Boost for reliable start-up of capacitive and high-inrush loads. The compact 50 mm-wide metal housing, IP20 protection and -25 to +70 degC operating range suit crowded control cabinets, while CSA and UL approvals together with a Class I Division 2 rating support use in specified hazardous and industrial locations. The Phoenix Contact 2904608 is a QUINT4-PS/1AC/12DC/15 fourth-generation QUINT POWER single-phase DIN rail power supply with a regulated 12 V DC, 15 A output (240 W).
Basic Product Information
- Wide AC or DC input: 100-240 V AC and 110-250 V DC
- Dynamic Boost for reliable start-up of high-inrush loads
- Compact 50 mm-wide metal housing, IP20, DIN rail mounting
- 4 kV input/output isolation, CSA and UL approved, Class I Division 2 rated
- Efficiency approx. 92% with an operating range of -25 degC to +70 degC
- Single-phase QUINT4 primary-switched DIN rail supply with 12 V DC / 15 A output (240 W)
Technical Specifications
Version & Model Difference
The 2904608 is the QUINT4-PS/1AC/12DC/15 in the fourth-generation QUINT POWER range (QUINT4). Earlier third-generation units use different article numbers and do not carry the same feature set. When cross-referencing, match the 12 V DC / 15 A output rather than relying on the series name alone, and confirm the exact article number before ordering.
Application Scenarios
- Industrial control cabinets and machine automation
- Hazardous-location (Class I Division 2) and ITE equipment
- Process control, signalling and sensor power
- Communication and building automation panels
- Phoenix Contact UK 5-HESILA 250 Fuse Terminal Block
- Phoenix Contact UK 5-HESILA 24 Fuse Terminal Block
- Phoenix Contact ST 1.5 Feed-Through Terminal Block
- Phoenix Contact 1404408 SAC-4P-5,0-PVC/M12FS Sensor/Actuator Cable, 5 m
- Phoenix Contact 3101197 MTK BU Knife-Disconnect Terminal Block
- Phoenix Contact 2966061 PLC-BSC-24DC/1/SEN Relay Base
- Phoenix Contact 2901535 RAD-DI4-IFS Radioline Digital I/O Extension Module
Frequently Asked Questions
What output does the 2904608 provide?
A regulated 12 V DC output at 15 A, which is 240 W.
Can it run from a DC supply?
Yes, it accepts 110-250 V DC as well as 100-240 V AC input.
Is the 2904608 suitable for hazardous areas?
It carries CSA and UL approval with a Class I Division 2 rating for use in specified hazardous locations.
How wide is the unit?
The metal housing is 50 mm wide (125 x 50 x 130 mm), saving DIN rail space.
