2903447-contact
Phoenix Contact USB programming 2903447
Phoenix Contact

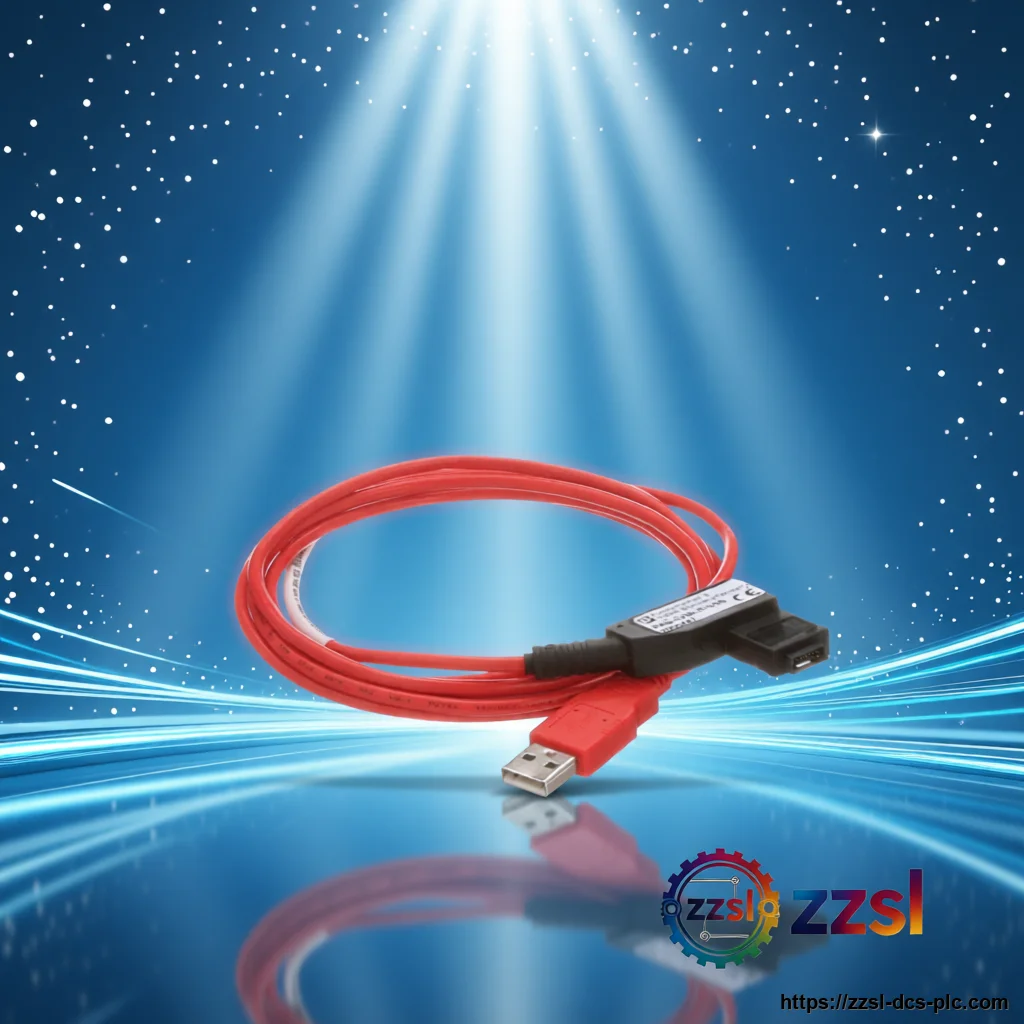

Phoenix Contact USB programming 2903447
Home > Phoenix Contact > Cables > 2903447 Need Phoenix Contact 2903447? USB programming for Radioline wireless I/O. Supplied with full traceability an…
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2903447 |
| Official Product Name | RAD-CABLE-USB Programming Cable (Radioline) |
| Applicable System | Radioline wireless I/O (IFS data port) |
| Product Type | USB programming / configuration cable |
| Equivalent Standard | EMC Directive 2014/30/EU (EN 61000-6-2 / EN 61000-6-4) |
| Product Status | In Stock |
| Cable Length | 2 m |
| Connection 1 (PC side) | USB 2.0 Full Speed, type A |
| Connection 2 (Device side) | IFS data port (male) |
| Transmission Medium | Copper |
| Outside Cable Diameter | 3.50 mm |
| Jacket Color | Red (RAL 3001) |
| Jacket Material | PVC |
| Ambient Temperature (Operation) | -25 °C ... 70 °C |
| Ambient Temperature (Storage/Transport) | -40 °C ... 85 °C |
| GTIN | 4046356739429 |
| Country of Origin | Germany (DE) |
| Weight per Piece (excl. packing) | 64.3 g |
| Power Supply | Via the PC USB port |
| Product Type | Programming cable |
Product Description
It links a PC USB port to the IFS data port of a Radioline device such as the RAD-2400-IFS and also supplies power for diagnostics and configuration directly through the USB connection. The cable has a 2 m fixed length, a 3.50 mm PVC jacket and an operating temperature range of -25 °C to +70 °C. Although some catalog data classifies this item as a connector, Phoenix Contact's official product type for 2903447 is a cable for programming. The Phoenix Contact 2903447, cataloged as RAD-CABLE-USB, is a USB programming and configuration cable for the Radioline wireless I/O system.
Basic Product Information
- Supplies power for diagnostics and configuration via the PC USB port
- 2 m fixed cable length with a 3.50 mm PVC jacket (red RAL 3001)
- Operating temperature range of -25 °C to +70 °C
- Compatible with Radioline devices such as the RAD-2400-IFS
- USB 2.0 Full Speed (PC side) to IFS data port (device side)
Technical Specifications
Version & Model Difference
The 2903447 (RAD-CABLE-USB) is the dedicated USB cable for the Radioline wireless product family, whose device-side interface is the IFS data port. It is used together with Radioline modules such as the RAD-2400-IFS for configuration and diagnostics. Catalog entries that describe 2903447 as a generic connector refer to this same RAD-CABLE-USB item.
Application Scenarios
- Configuring and commissioning Radioline wireless I/O devices
- On-site diagnostics of Radioline wireless networks
- Firmware and parameter setup for Radioline modules
- Industrial automation wireless communication systems
- Phoenix Contact UK 5-HESILA 250 Fuse Terminal Block
- Phoenix Contact UK 5-HESILA 24 Fuse Terminal Block
- Phoenix Contact ST 1.5 Feed-Through Terminal Block
- Phoenix Contact 1404408 SAC-4P-5,0-PVC/M12FS Sensor/Actuator Cable, 5 m
- Phoenix Contact 3101197 MTK BU Knife-Disconnect Terminal Block
- Phoenix Contact 2966061 PLC-BSC-24DC/1/SEN Relay Base
- Phoenix Contact 2901535 RAD-DI4-IFS Radioline Digital I/O Extension Module
Frequently Asked Questions
What is Phoenix Contact part number 2903447?
It is the RAD-CABLE-USB, a USB programming and configuration cable for the Radioline wireless I/O system.
What length is the RAD-CABLE-USB?
The fixed cable length is 2 m with a 3.50 mm PVC jacket.
Does the cable power the connected device?
Yes. It provides power for diagnostics and configuration through the PC USB port.
Which devices is it compatible with?
It connects PCs to Radioline devices that have an IFS data port, such as the RAD-2400-IFS.
