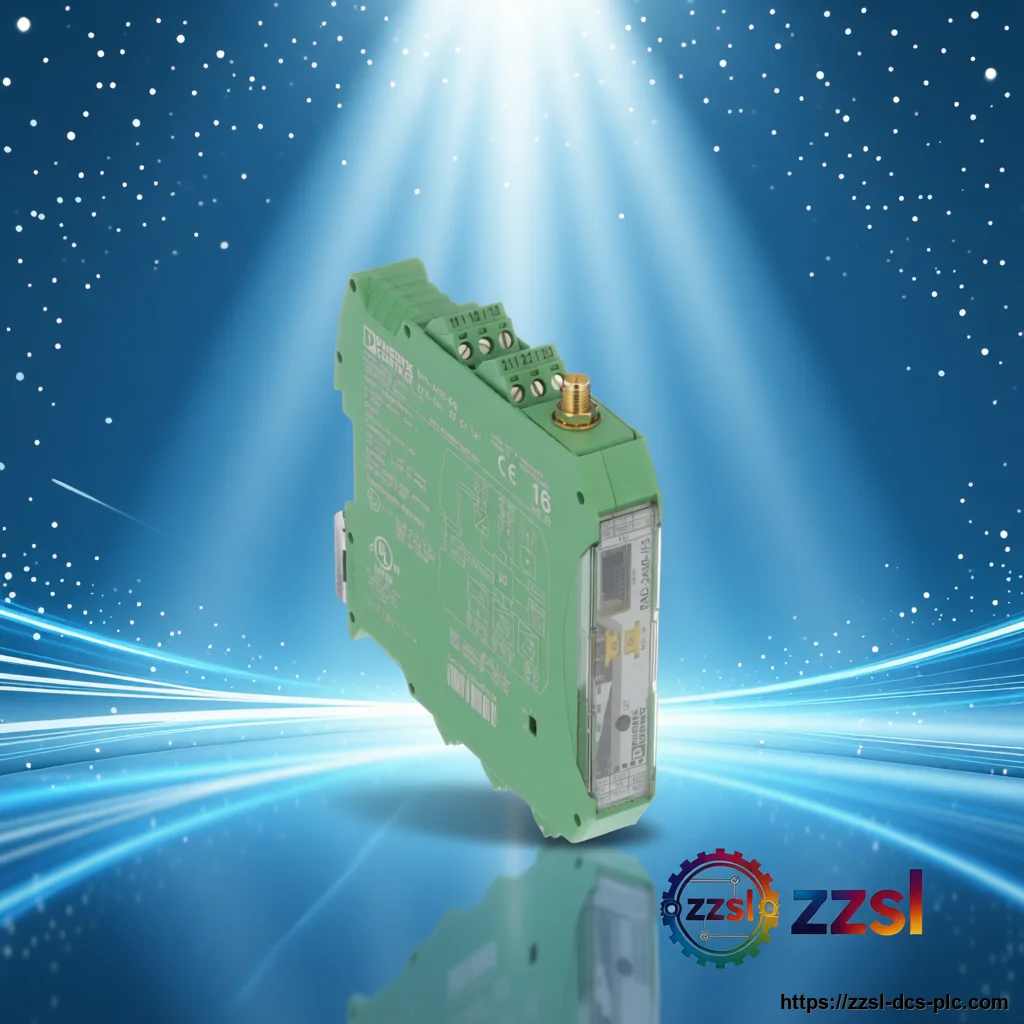

Phoenix Contact Wireless transceiver 2901541
Home > Phoenix Contact > Radioline > 2901541 Need Phoenix Contact 2901541? Wireless transceiver for Radioline wireless I/O and serial data networks. S…
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2901541 |
| Official Product Name | RAD-2400-IFS Radioline Wireless Transceiver |
| Applicable System | Radioline wireless I/O and serial data networks |
| Product Type | Wireless transceiver |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Type | RAD-2400-IFS Radioline wireless transceiver |
| Frequency Band | 2.4 GHz (2.4002 - 2.4785 GHz), license-free |
| Interface | RS-232 / RS-485 (2-wire) |
| Data Rate | Adjustable, 16 to 500 kbps |
| Range | Up to 5 km with clear line of sight |
| Supply Voltage | 24 V DC (19.2 - 30.5 V DC) |
| Current Consumption | 65 mA |
| Operating Temperature | -40 C to +70 C |
| Degree of Protection | IP20 |
| Housing Material | PA 6.6-FR |
| Mounting | DIN rail NS 35 (EN 60715) |
| Antenna Connection | RSMA (female) |
| Approvals | ATEX Zone 2, cULus, EAC, IECEx, UL |
| Network Topology | Point-to-point, star and mesh up to 250 devices |
| Manufacturer Part Number | 2901541 |
Product Description
It provides an integrated RS-232/RS-485 interface, supports point-to-point, star and mesh networks of up to 250 devices, and reaches several kilometres with a clear line of sight. Inputs and outputs are assigned with a simple thumbwheel, so no programming is needed for start-up. Built on Trusted Wireless 2.0 with AES encryption, frequency hopping and coexistence management, it suits industrial and ATEX Zone 2 environments. The Phoenix Contact 2901541 (RAD-2400-IFS) is a Radioline wireless transceiver that transmits I/O signals or serial data over the license-free 2.4 GHz band.
Basic Product Information
- Integrated RS-232/RS-485 interface for serial data and I/O transmission
- Expandable with up to 32 I/O extension modules and mesh networks of up to 250 devices
- Range of up to 5 km with clear line of sight using adjustable data rates
- Quick start-up via thumbwheel - no programming required
- License-free 2.4 GHz band with Trusted Wireless 2.0 reliability (AES encryption, frequency hopping, coexistence management)
Technical Specifications
Version & Model Difference
The 2901541 (RAD-2400-IFS) is the wireless transceiver version of the Radioline range with RS-232 and RS-485 interfaces; standard Radioline analogue/digital expansion modules offer 4 inputs and/or 4 outputs. It can be combined with I/O extension modules to build larger wireless I/O networks.
Application Scenarios
- Wireless I/O and serial data links in industrial plants
- Replacing long cable runs between distant control cabinets
- Large mesh networks for process and utility monitoring, including ATEX Zone 2 areas
- Phoenix Contact UK 5-HESILA 250 Fuse Terminal Block
- Phoenix Contact UK 5-HESILA 24 Fuse Terminal Block
- Phoenix Contact ST 1.5 Feed-Through Terminal Block
- Phoenix Contact 1404408 SAC-4P-5,0-PVC/M12FS Sensor/Actuator Cable, 5 m
- Phoenix Contact 3101197 MTK BU Knife-Disconnect Terminal Block
- Phoenix Contact 2966061 PLC-BSC-24DC/1/SEN Relay Base
- Phoenix Contact 2901535 RAD-DI4-IFS Radioline Digital I/O Extension Module
Frequently Asked Questions
What is the frequency band of the Phoenix Contact 2901541?
It operates in the license-free 2.4 GHz band, covering roughly 2.4002 to 2.4785 GHz.
Which interfaces does the RAD-2400-IFS provide?
It has an integrated RS-232 and RS-485 2-wire interface and can transmit either serial data or I/O signals.
How many devices can one Radioline network support?
The device supports point-to-point, star and mesh networks of up to 250 devices, with a range of up to 5 km with a clear line of sight.
Is the 2901541 suitable for hazardous areas?
Yes. It is approved for ATEX Zone 2 and carries cULus, EAC, IECEx and UL approvals.
