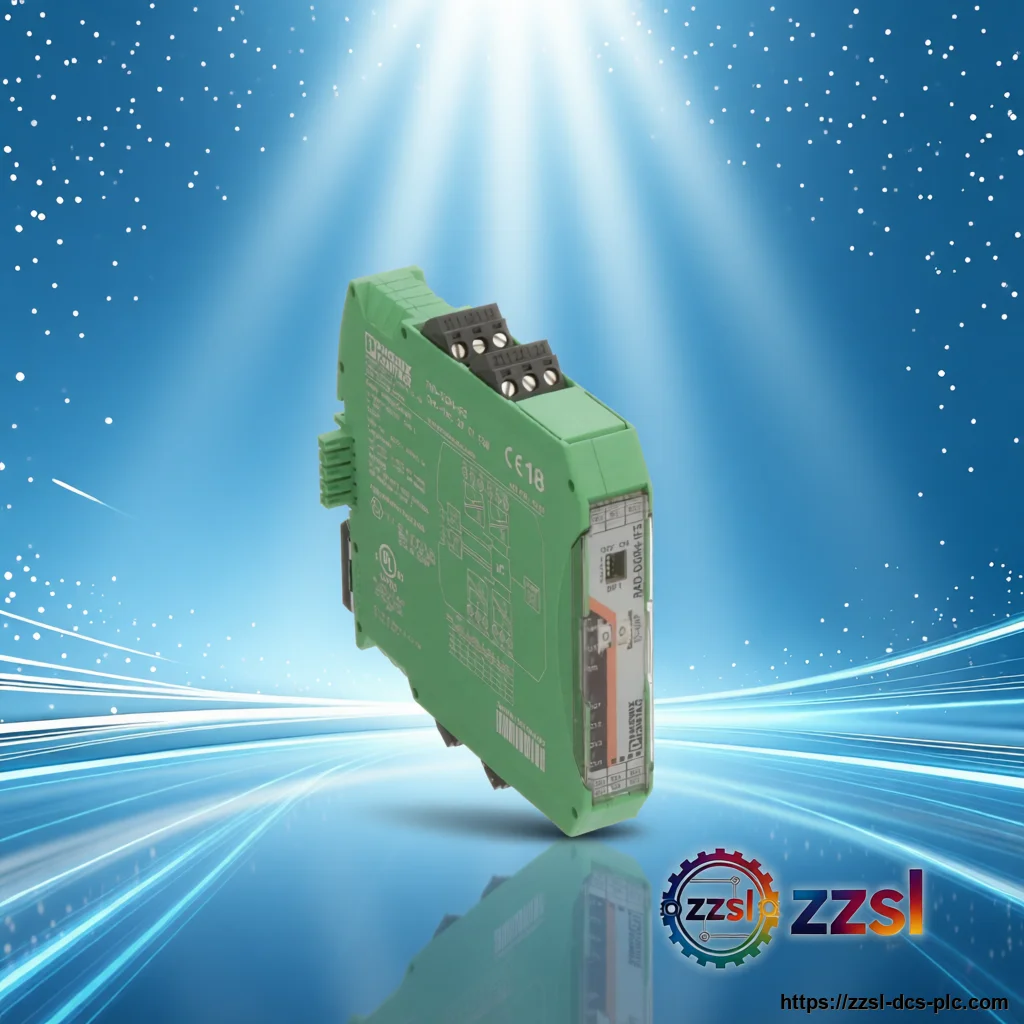

Phoenix Contact I/O Extension Module 2901536
Phoenix Contact
Phoenix Contact I/O Extension Module 2901536
Home > Industrial Spare Parts > Phoenix Contact > 2901536 Need Phoenix Contact 2901536? I/O Extension Module for Radioline wireless and RS-485 I/O sys…
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2901536 |
| Official Product Name | RAD-DOR4-IFS I/O Extension Module |
| Applicable System | Radioline wireless and RS-485 I/O systems |
| Product Type | I/O Extension Module (4 Relay Outputs) |
| Equivalent Standard | RAD-DI4-IFS / RAD-DO8-IFS / RAD-AI4-IFS (same IFS module family) |
| Product Status | In Stock |
| Model Name | RAD-DOR4-IFS |
| Outputs | 4 x digital relay, 5 A, 250 V AC / 24 V DC |
| System | Radioline wireless / RS-485 (IFS) |
| Width | 17.5 mm |
| Height | 113 mm |
| Depth | 114.5 mm |
| Mounting | DIN rail |
| Protection | IP20 |
| Housing | PA 6.6-FR, gray (RAL 7042), UL 94 V0 |
| Operating Temperature | -40 C to +70 C (derating above +55 C) |
| Approvals | CE, ATEX II 3 G Ex ec nC IIC T4 Gc |
| Product Type | I/O extension module, 4 relay outputs |
Product Description
It adds four digital relay outputs rated 5 A at 250 V AC / 24 V DC to a Radioline wireless or RS-485 station. It clips onto a DIN rail in a slim 17.5 mm wide IP20 housing and operates from -40 to +70 C. The Phoenix Contact 2901536 is the RAD-DOR4-IFS I/O extension module from the Radioline wireless transmission system.
Basic Product Information
- I/O extension for the Radioline wireless and RS-485 system
- Pluggable connection technology
- Slim 17.5 mm DIN-rail housing
- LED status indicators for supply, bus and each output
- Four digital relay outputs rated 5 A, 250 V AC / 24 V DC
Technical Specifications
Version & Model Difference
The 2901536 RAD-DOR4-IFS is one of several Radioline IFS I/O extension modules. Related modules in the same family include the RAD-DI4-IFS (4 digital inputs), RAD-DO8-IFS (8 transistor outputs) and RAD-AI4-IFS (4 analogue inputs). Each extension module adds its function to a RAD-2400-IFS or RAD-868-IFS wireless station.
Application Scenarios
- Wireless I/O signal transmission in plants
- Remote monitoring and control over Radioline networks
- Industrial automation and process control
- It mounts on a DIN rail in a slim 17.5 mm wide IP20 housing.
- Phoenix Contact UK 5-HESILA 250 Fuse Terminal Block
- Phoenix Contact UK 5-HESILA 24 Fuse Terminal Block
- Phoenix Contact ST 1.5 Feed-Through Terminal Block
- Phoenix Contact 1404408 SAC-4P-5,0-PVC/M12FS Sensor/Actuator Cable, 5 m
- Phoenix Contact 3101197 MTK BU Knife-Disconnect Terminal Block
- Phoenix Contact 2966061 PLC-BSC-24DC/1/SEN Relay Base
- Phoenix Contact 2901535 RAD-DI4-IFS Radioline Digital I/O Extension Module
Frequently Asked Questions
What is the Phoenix Contact 2901536?
It is the RAD-DOR4-IFS I/O extension module, which adds four digital relay outputs to a Radioline wireless or RS-485 system.
What are the relay output ratings?
Each of the four outputs is rated 5 A at 250 V AC or 24 V DC.
Which system does it belong to?
It is part of the Phoenix Contact Radioline IFS system for wireless transmission of serial interfaces and I/O signals.
How is it mounted?
It mounts on a DIN rail in a slim 17.5 mm wide IP20 housing.
