Phoenix Contact Digital Input Extension Module 2901535
Phoenix Contact

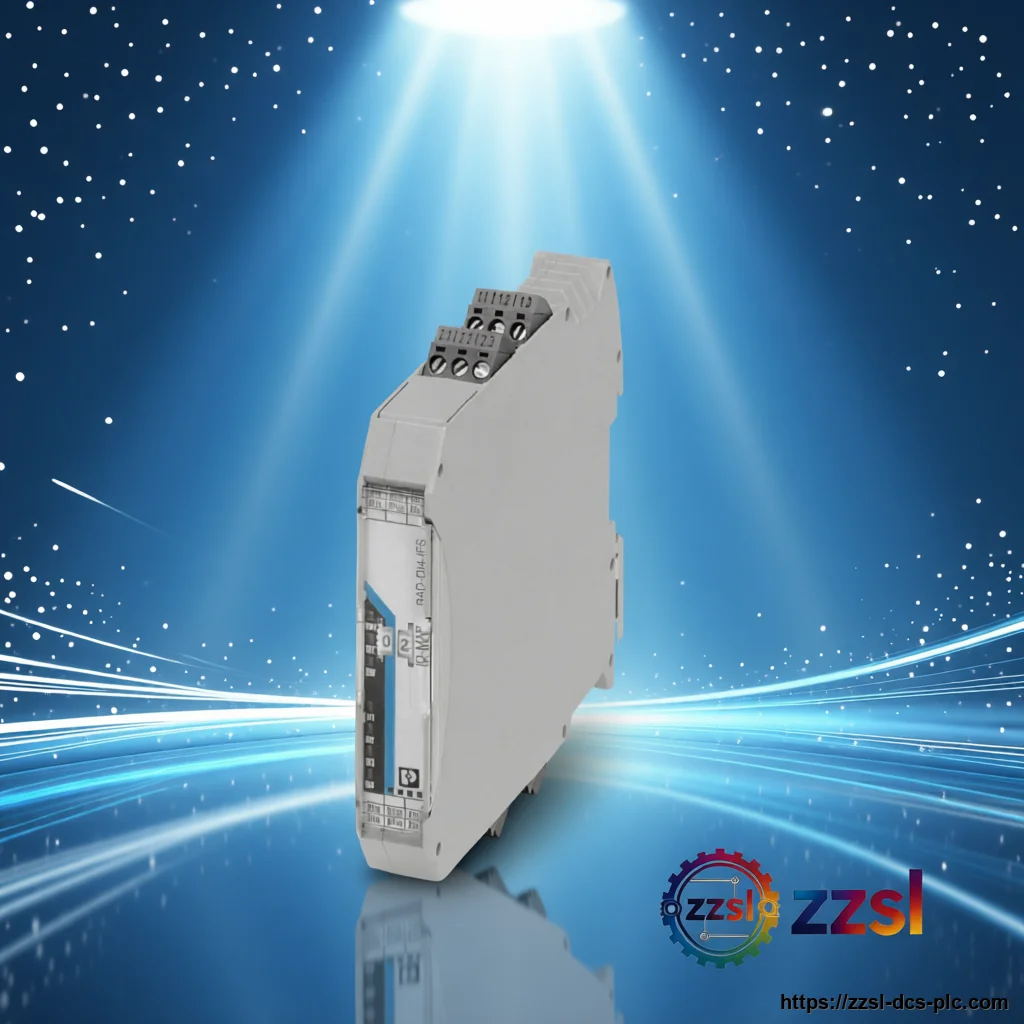

Phoenix Contact Digital Input Extension Module 2901535
Home > Phoenix Contact > I/O Modules > 2901535 Need Phoenix Contact 2901535? Digital Input Extension Module for Phoenix Contact Radioline I/O system; …
Contact us for current availability and best price of 2901535-contact.
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2901535 |
| Official Product Name | RAD-DI4-IFS Radioline I/O Extension Module |
| Applicable System | Phoenix Contact Radioline I/O system; DIN rail station |
| Product Type | Digital Input Extension Module |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Module Type | Digital input extension module |
| Number of Inputs | 4 digital inputs |
| Input Voltage Range | 0 to 250 V AC/DC (wide-range) |
| Supply Voltage | 19.2 to 30.5 V DC |
| Mounting Type | DIN rail (35 mm) |
| Termination Style | Screw connection |
| Isolation | Channel-to-channel electrical isolation |
| Ingress Protection | IP20 |
| Operating Temperature | -40 to +70 degrees C |
| Approvals | ATEX, IECEx, cUL, cULus, UL, EAC, CE |
| Weight | Approx. 200 g |
| Series | Radioline |
Product Description
It adds four wide-range digital inputs that accept signals from 0 to 250 V AC/DC, making it suitable for both low-voltage control signals and industrial mains-level inputs. Each channel is electrically isolated from the others, which improves signal integrity and simplifies mixed-voltage wiring. The module clips onto a DIN rail with screw termination and a supplied DIN rail connector for bus continuity. It supports hot-swap replacement during operation and is approved for use in ATEX Zone 2 installations. With an extended -40 to +70 degrees C range and thumbwheel-based startup, it is designed for demanding process and utility environments. The Phoenix Contact 2901535 is part of the Radioline family of wireless and wired I/O modules and functions as a digital input extension module.
Basic Product Information
- Channel-to-channel electrical isolation
- Screw connection with a supplied DIN rail connector
- Hot-swap capable for replacement during operation
- Extended operating temperature range of -40 to +70 degrees C
- Suitable for ATEX Zone 2 installations
- Easy startup via thumbwheel addressing
- Four wide-range digital inputs accepting 0 to 250 V AC/DC
Technical Specifications
Version & Model Difference
The 2901535 is the RAD-DI4-IFS digital input extension module within the Phoenix Contact Radioline range, paired as a companion to the Radioline wireless and gateway modules. It provides four isolated wide-range digital inputs (0 to 250 V AC/DC) via screw connection. The Radioline family also includes digital and analog output modules, temperature and other I/O variants with different input counts and signal types; match the exact module type and channel count to your station requirements before ordering.
Application Scenarios
- Remote digital signal acquisition in process plants
- Utility and infrastructure I/O expansion
- ATEX Zone 2 hazardous-area installations
- Mains-level status and interlock monitoring
- Phoenix Contact UK 5-HESILA 250 Fuse Terminal Block
- Phoenix Contact UK 5-HESILA 24 Fuse Terminal Block
- Phoenix Contact ST 1.5 Feed-Through Terminal Block
- Phoenix Contact 1404408 SAC-4P-5,0-PVC/M12FS Sensor/Actuator Cable, 5 m
- Phoenix Contact 3101197 MTK BU Knife-Disconnect Terminal Block
- Phoenix Contact 2966061 PLC-BSC-24DC/1/SEN Relay Base
- Phoenix Contact 2866789 QUINT-PS/1AC/24DC/40 Power Supply
Frequently Asked Questions
How many inputs does the 2901535 provide?
It provides four digital inputs that accept a wide input range of 0 to 250 V AC/DC.
How is the module mounted and wired?
It mounts on a 35 mm DIN rail and uses screw connection terminals with a supplied DIN rail connector.
Is it suitable for hazardous areas?
Yes, the module is approved for use in ATEX Zone 2 installations and carries ATEX, IECEx, UL and cUL approvals.
Can the module be replaced while the system is running?
Yes. It supports hot-swap replacement during operation, which reduces downtime.
