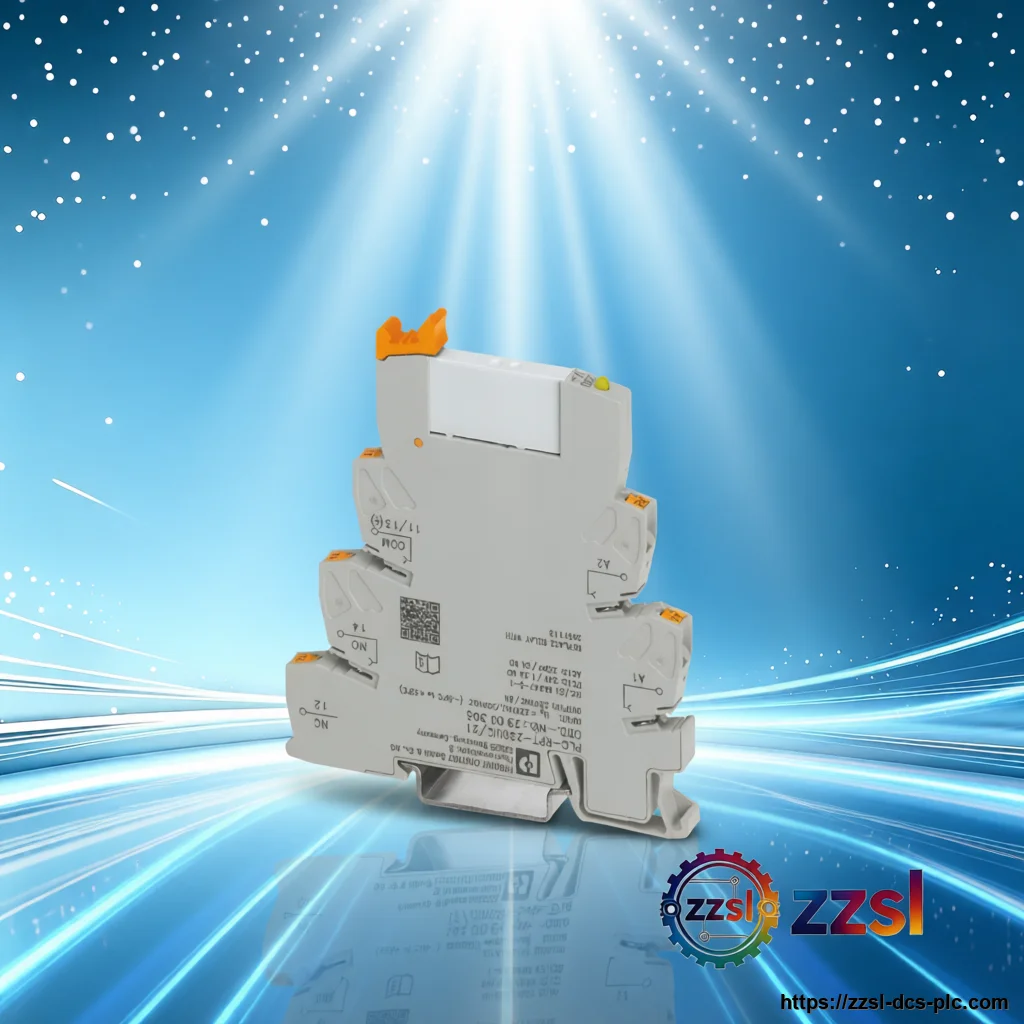

Phoenix Contact Electromechanical relay module 2900305
['Home', 'Relays', 'Phoenix Contact', 'PLC-RPT', '2900305'] Need Phoenix Contact 2900305? Electromechanical r…
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2900305 (PLC-RPT-230UC/21) |
| Official Product Name | PLC-RPT-230UC/21 Relay Module |
| Applicable System | General-purpose relay switching and interfacing |
| Product Type | Electromechanical relay module |
| Equivalent Standard | Contact us for details |
| Product Status | Active |
| Contact type | 1 changeover contact (1PDT) |
| Contact material | AgSnO |
| Max. switching voltage | 250 V AC / 250 V DC |
| Limiting continuous current | 6 A |
| Max. inrush current | 10 A (4 s) |
| Power dissipation | 0.74 W (max. nominal condition) |
| Connection | Push-in connection |
| Dimensions (W x H x D) | 6.2 x 80 x 94 mm |
| Operating temperature | -40 to +55 deg C |
| Coil voltage | 230 V AC / 220 V DC |
Product Description
Basic Product Information
- 1 changeover contact (1PDT), AgSnO contacts
- 230 V AC / 220 V DC coil with bridge rectifier and LED
- RT III sealed relay; DIN rail mounting
- PLC-INTERFACE relay module with push-in connection
Technical Specifications
Version & Model Difference
- Uses push-in (PIT) connection; for 24 V DC coil see the PLC-RSC / RIF ranges. Confirm contact rating and coil voltage for your load before selection.
Application Scenarios
- Control and interfacing of loads
- Signal isolation and amplification
- General machine and panel switching
- Phoenix Contact UK 5-HESILA 250 Fuse Terminal Block
- Phoenix Contact UK 5-HESILA 24 Fuse Terminal Block
- Phoenix Contact ST 1.5 Feed-Through Terminal Block
- Phoenix Contact 1404408 SAC-4P-5,0-PVC/M12FS Sensor/Actuator Cable, 5 m
- Phoenix Contact 3101197 MTK BU Knife-Disconnect Terminal Block
- Phoenix Contact 2966061 PLC-BSC-24DC/1/SEN Relay Base
- Phoenix Contact 2901535 RAD-DI4-IFS Radioline Digital I/O Extension Module
Frequently Asked Questions
What coil and contacts does the 2900305 have?
It has a 230 V AC (220 V DC) coil and 1 changeover contact (1PDT) rated 6 A with AgSnO contact material.
What are its dimensions and connection?
It measures 6.2 x 80 x 94 mm, uses push-in connection and mounts on a DIN rail with a yellow LED.
Is the relay sealed?
Yes, it uses an RT III sealed relay for harsh environments; it is UL 508 recognized.
What is the switching voltage?
Contacts switch up to 250 V AC or 250 V DC; verify the breaking capacity for your load with the supplier.
