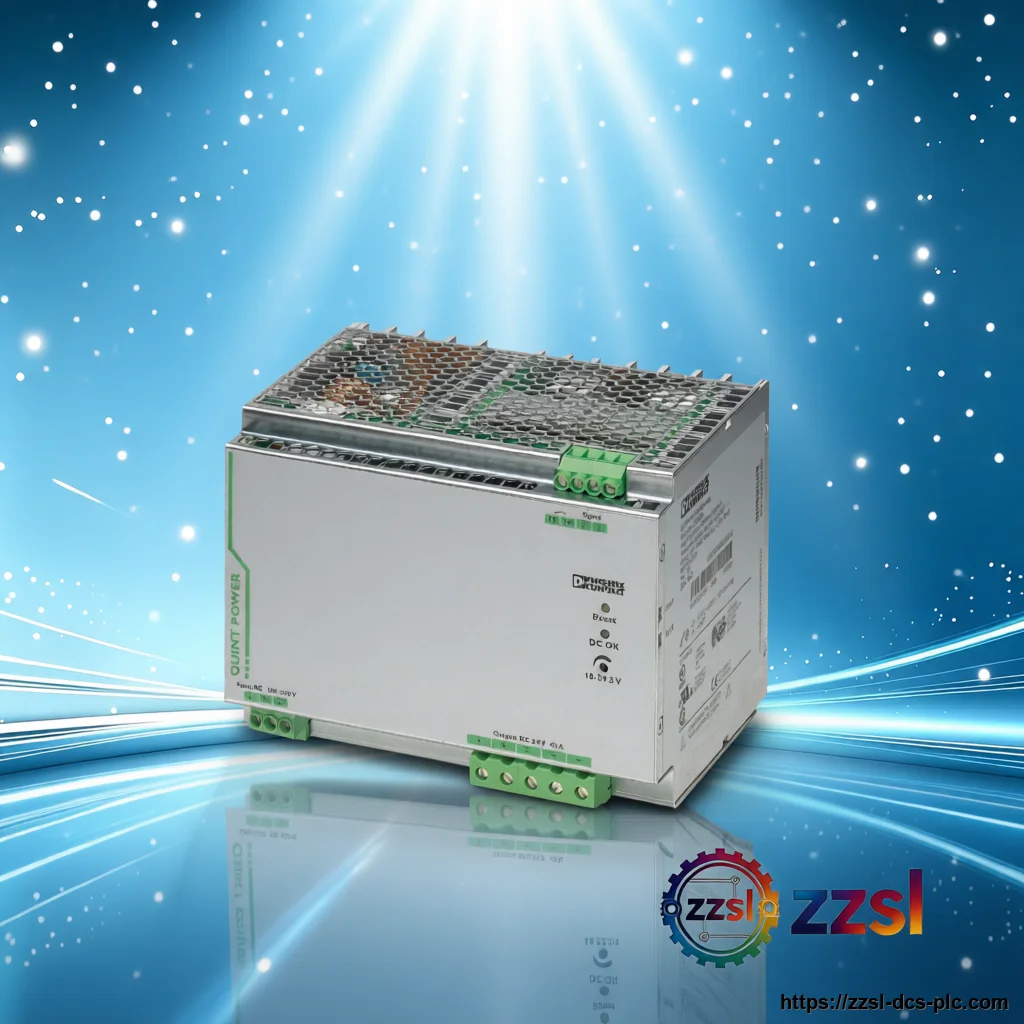

Phoenix Contact DIN Rail Power Supply 2866789
Home > Phoenix Contact > DIN Rail Power Supplies > 2866789 Need Phoenix Contact 2866789? DIN Rail Power Supply for Industrial 24 V DC control power. S…
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2866789 |
| Official Product Name | QUINT-PS/1AC/24DC/40 |
| Applicable System | Industrial 24 V DC control power |
| Product Type | DIN Rail Power Supply |
| Equivalent Standard | N/A (product family: QUINT POWER) |
| Product Status | In Stock |
| Nominal output voltage | 24 V DC (adjustable 18-29.5 V DC) |
| Rated output current | 40 A |
| Output power | 960 W |
| POWER BOOST current | 45 A |
| SFB peak current | 215 A for 12 ms |
| Efficiency | > 92% (typ. up to 95%) |
| Degree of protection | IP20 |
| Ambient temperature | -25 C to +70 C |
| Dimensions (W x H x D) | 82 x 130 x 175 mm |
| Weight | approx. 3.4 kg |
| Mounting | DIN rail (EN 60715) |
| Input voltage | 85-264 V AC (1-phase), 90-350 V DC alternative |
Product Description
Part of the QUINT POWER family, it combines SFB (Selective Fuse Breaking) technology, which supplies brief high-current pulses to trip downstream circuit breakers selectively, with a static POWER BOOST reserve for starting heavy loads. Wide-range 85-264 V AC input, high efficiency and integrated diagnostics make it a dependable 24 V DC source for control cabinets and process automation. The Phoenix Contact 2866789 is the QUINT-PS/1AC/24DC/40 primary-switched DIN rail power supply, delivering a regulated 24 V DC output at up to 40 A (960 W) from a single-phase AC input.
Basic Product Information
- Regulated 24 V DC output, adjustable 18-29.5 V DC, rated 40 A / 960 W
- SFB (Selective Fuse Breaking) technology delivers up to about 215 A for 12 ms to trip standard breakers
- POWER BOOST reserve (45 A) for starting capacitive and inductive loads
- Fanless convection cooling in a metal housing, IP20, DIN rail mounting
- DC OK signalling contact and LED status indicators for system monitoring
- Single-phase AC input 85-264 V AC with wide-range automatic adjustment
Technical Specifications
Version & Model Difference
The 2866789 is the 40 A (960 W) member of the QUINT POWER single-phase 24 V DC family; the same range includes the 2866763 (10 A / 240 W) and 20 A variants. When replacing or cross-referencing, match the output current rating, input voltage range, dimensions and signalling requirements.
Application Scenarios
- PLC and DCS control cabinet 24 V DC power
- Process automation and continuous manufacturing lines
- Power distribution for high-current I/O stations
- Machine control with heavy motor starters or solenoid loads
- Phoenix Contact UK 5-HESILA 250 Fuse Terminal Block
- Phoenix Contact UK 5-HESILA 24 Fuse Terminal Block
- Phoenix Contact ST 1.5 Feed-Through Terminal Block
- Phoenix Contact 1404408 SAC-4P-5,0-PVC/M12FS Sensor/Actuator Cable, 5 m
- Phoenix Contact 3101197 MTK BU Knife-Disconnect Terminal Block
- Phoenix Contact 2966061 PLC-BSC-24DC/1/SEN Relay Base
- Phoenix Contact 2901535 RAD-DI4-IFS Radioline Digital I/O Extension Module
Frequently Asked Questions
What is the output rating of the Phoenix Contact 2866789?
It provides a regulated 24 V DC output at 40 A, giving 960 W of output power.
What is SFB technology?
Selective Fuse Breaking briefly delivers up to about 215 A for 12 ms so that only the faulted branch breaker trips, keeping the rest of the 24 V DC bus running.
Is the output voltage adjustable?
Yes, the output can be trimmed between approximately 18 V DC and 29.5 V DC.
How is the 2866789 mounted?
It is designed for 35 mm DIN rail mounting (EN 60715) with screw terminals and fanless convection cooling.
