Phoenix Contact DIN Rail Power Supply 2866763
Phoenix Contact

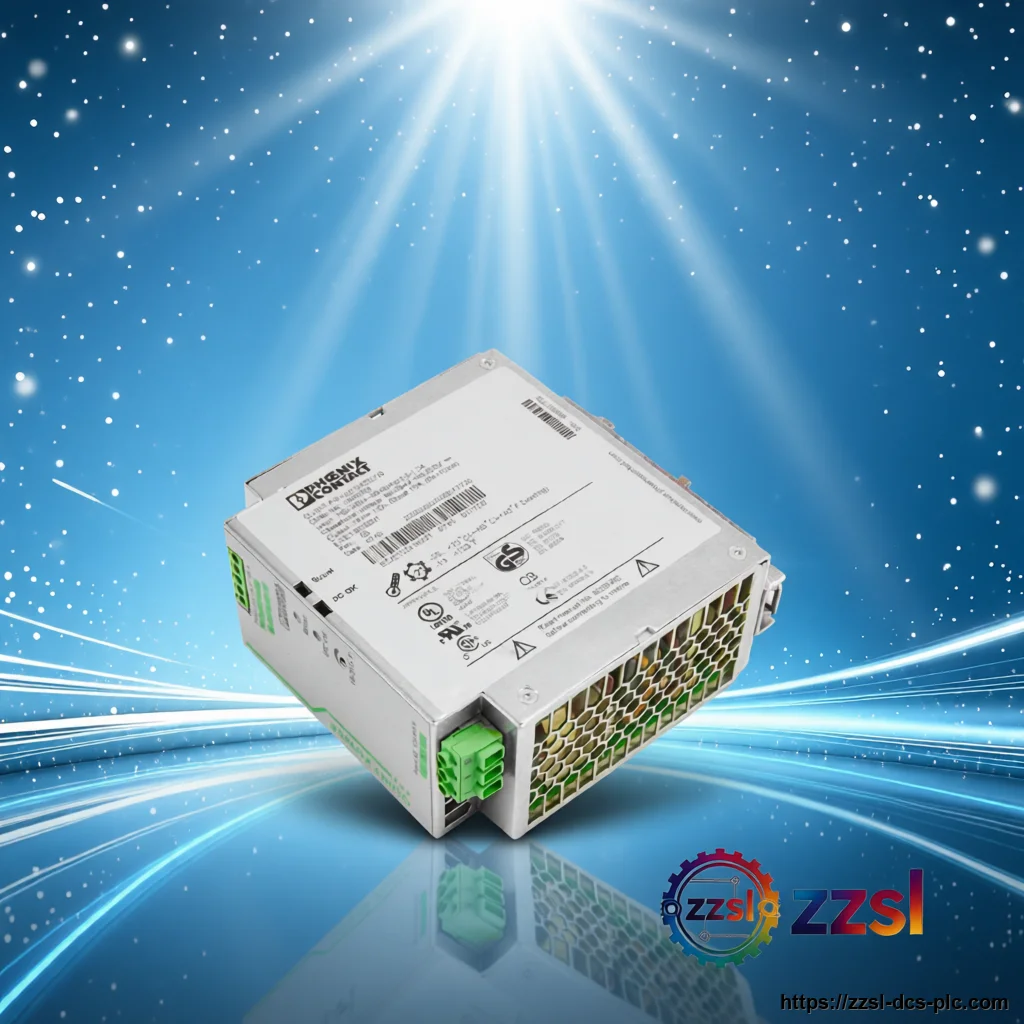

Phoenix Contact DIN Rail Power Supply 2866763
Home > Phoenix Contact > DIN Rail Power Supplies > 2866763 Need Phoenix Contact 2866763? DIN Rail Power Supply for Industrial 24 V DC control power. S…
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2866763 |
| Official Product Name | QUINT-PS/1AC/24DC/10 |
| Applicable System | Industrial 24 V DC control power |
| Product Type | DIN Rail Power Supply |
| Equivalent Standard | N/A (product family: QUINT POWER) |
| Product Status | In Stock |
| Input voltage range | 85-264 V AC |
| Nominal output voltage | 24 V DC (adjustable 18-29.5 V DC) |
| Rated output current | 10 A |
| POWER BOOST current | 15 A |
| Output power | 240 W |
| Efficiency | up to about 94% |
| Insulation voltage input/output | 4 kV AC (type test) |
| Degree of protection | IP20 |
| Ambient temperature | -25 C to +70 C |
| Dimensions (W x H x D) | 60 x 130 x 125 mm |
| Weight | approx. 1.15 kg |
| Mounting | DIN rail (EN 60715) |
| EAN | 4046356113793 |
| Input voltage | 100-240 V AC (1-phase), 110-250 V DC alternative |
Product Description
It belongs to the QUINT POWER family and features SFB (Selective Fuse Breaking) technology, a static POWER BOOST reserve and preventive function monitoring. Accepting 100-240 V AC in a compact, convection-cooled DIN rail housing, it is a dependable 24 V DC source for PLC racks, I/O panels and instrumentation. The Phoenix Contact 2866763 is the QUINT-PS/1AC/24DC/10 primary-switched power supply, providing a regulated 24 V DC output at 10 A (240 W) from a single-phase AC input.
Basic Product Information
- Regulated 24 V DC, adjustable 18-29.5 V DC, rated 10 A / 240 W
- SFB (Selective Fuse Breaking) technology for fast, selective breaker tripping
- Static POWER BOOST (15 A) for starting difficult loads
- Preventive function monitoring with DC OK relay contact and status LED
- Fanless convection cooling, IP20, DIN rail mounting
- Single-phase 100-240 V AC input suitable for global mains supplies
Technical Specifications
Version & Model Difference
The 2866763 is the 10 A (240 W) model in the QUINT POWER single-phase 24 V DC range, while the 2866789 is the 40 A (960 W) model. Match output current, input range, dimensions and signalling when selecting a replacement or alternative.
Application Scenarios
- PLC racks and remote I/O panels
- HMI displays and instrumentation loops
- Machine control and building automation cabinets
- Process and water/wastewater control systems
- Phoenix Contact UK 5-HESILA 250 Fuse Terminal Block
- Phoenix Contact UK 5-HESILA 24 Fuse Terminal Block
- Phoenix Contact ST 1.5 Feed-Through Terminal Block
- Phoenix Contact 1404408 SAC-4P-5,0-PVC/M12FS Sensor/Actuator Cable, 5 m
- Phoenix Contact 3101197 MTK BU Knife-Disconnect Terminal Block
- Phoenix Contact 2966061 PLC-BSC-24DC/1/SEN Relay Base
- Phoenix Contact 2901535 RAD-DI4-IFS Radioline Digital I/O Extension Module
Frequently Asked Questions
What is the power rating of the Phoenix Contact 2866763?
It delivers 24 V DC at 10 A, giving 240 W of output power.
What input voltage does the 2866763 accept?
It takes a single-phase 100-240 V AC input with an operating range of 85-264 V AC.
Does the 2866763 support redundancy?
Yes. It can be combined with a QUINT-DIODE module such as 2320157 to build a redundant power supply system.
What are the dimensions of the 2866763?
The DIN rail housing measures approximately 60 x 130 x 125 mm (W x H x D).
