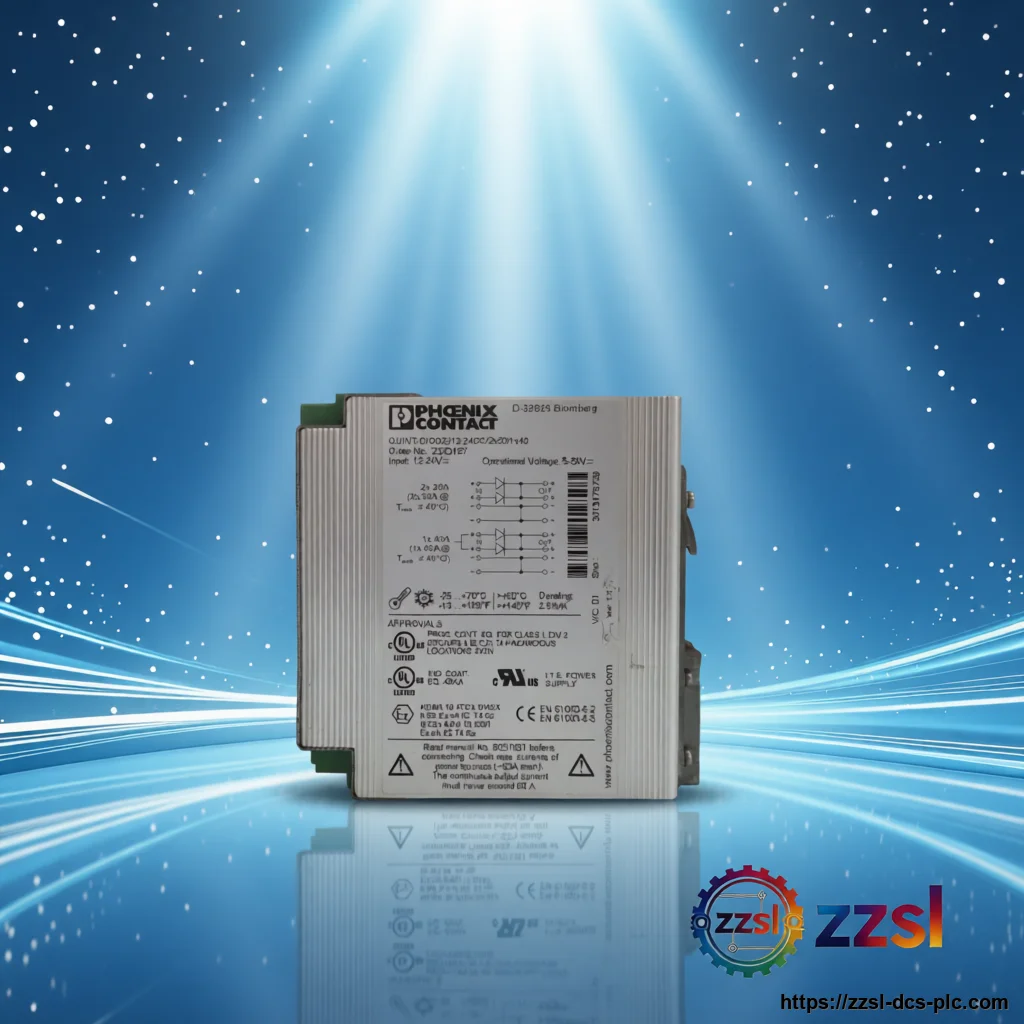

Phoenix Contact Redundancy 2320157
Phoenix Contact
Phoenix Contact Redundancy 2320157
['Home', 'Power Supplies', 'Redundancy', 'Phoenix Contact 2320157'] Need Phoenix Contact 2320157? Redundancy for Redund…
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2320157 |
| Official Product Name | QUINT-DIODE/12-24DC/2X20/1X40 Redundancy Module |
| Applicable System | Redundant power supply systems |
| Product Type | Redundancy / Diode Module |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Active |
| Lifecycle note | Available |
| Type | QUINT-DIODE/12-24DC/2X20/1X40 |
| Operating voltage | 12 - 24 V DC |
| Input current | 2 x 20 A |
| Output current | 1 x 40 A |
| Dimensions (WxHxD) | 50 x 130 x 125 mm |
| Mounting | DIN rail |
| Weight | Contact supplier for exact specifications |
| Order code | 2320157 |
Product Description
Basic Product Information
- 12-24 V DC operating range
- 2 x 20 A inputs, 1 x 40 A output
- DIN-rail mounting, 50 mm width
- Decouples two supplies for N+1 redundancy
Technical Specifications
Version & Model Difference
- The QUINT-DIODE family covers different voltage and current ratings. The 2320157 is the 12-24 V DC, 2x20 A in / 1x40 A out version; other codes define higher or lower current ranges.
Application Scenarios
- Redundant 24 V DC power systems
- Critical control cabinet backup
- High-availability automation power
