Phoenix Contact Redundancy Module 2320157
Phoenix Contact
Phoenix Contact Redundancy Module 2320157
Home > Phoenix Contact > Redundancy Modules > 2320157 Need Phoenix Contact 2320157? Redundancy Module for Redundant 12-24 V DC power supply. Supplied …
Specifications
| Brand | Phoenix Contact |
|---|---|
| Model Number | 2320157 |
| Official Product Name | QUINT-DIODE/12-24DC/2X20/1X40 |
| Applicable System | Redundant 12-24 V DC power supply |
| Product Type | Redundancy Module (Diode Decoupling) |
| Equivalent Standard | N/A (product family: QUINT POWER) |
| Product Status | In Stock |
| Rated input current | 2 x 20 A (redundancy), 1 x 40 A (capacity expansion) |
| Maximum current | 2 x 30 A, 1 x 60 A (-25 C to +40 C) |
| Efficiency | > 97% |
| Voltage drop | typ. 0.5 V (input/output) |
| Power loss | approx. 10 W at 20 A output |
| Overvoltage protection | integrated varistor |
| Ambient temperature | -25 C to +70 C |
| Degree of protection | IP20 |
| Dimensions (W x H x D) | 50 x 130 x 125 mm |
| Weight | approx. 0.68 kg |
| Mounting | DIN rail (EN 60715) |
| Input voltage | 12-24 V DC (range 10-30 V DC) |
Product Description

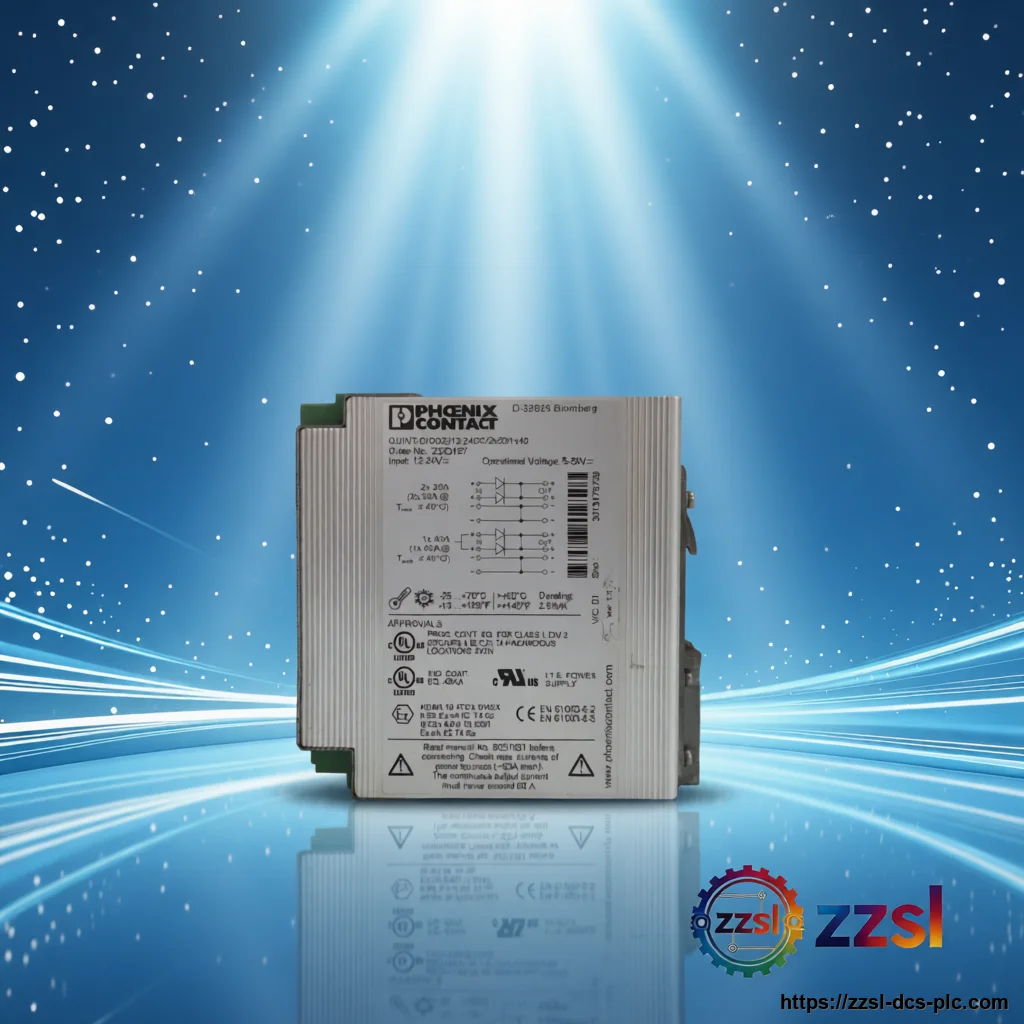

Using common-cathode diodes, it prevents back-feeding from a failed supply and provides near-seamless switchover, improving availability in critical control systems. In redundancy mode each channel is rated 20 A, while in capacity-expansion mode the combined output supports up to 40 A. The Phoenix Contact 2320157 is the QUINT-DIODE/12-24DC/2X20/1X40 diode redundancy module, used to decouple two independent 12-24 V DC power supplies so that either one can carry the full load.
Basic Product Information
- Redundancy mode: 2 x 20 A channels; capacity-expansion mode: 1 x 40 A output
- High efficiency above 97% with low power loss (about 10 W at 20 A)
- Reverse-polarity, overload and short-circuit protection
- Collective error message contact for remote signalling
- DIN rail mounting, IP20, screw connections
- Decouples two 12-24 V DC power supplies via common-cathode diodes
Technical Specifications
Version & Model Difference
The 2320157 is the 12-24 V DC, 2x20 A / 1x40 A diode redundancy module of the QUINT range. The fixed 24 V DC variant is 2320170, and the next-generation equivalent with enhanced diagnostics is 2907719 (QUINT4-DIODE/12-24DC/2X20/1X40). Verify voltage, per-channel current and mounting space before substitution.
Application Scenarios
- Redundant 24 V DC supplies for PLC and DCS control cabinets
- Safety instrumented systems and critical process instrumentation
- Data centres and telecommunications power backup
- Railway, oil & gas and building automation redundant supplies
- Phoenix Contact UK 5-HESILA 250 Fuse Terminal Block
- Phoenix Contact UK 5-HESILA 24 Fuse Terminal Block
- Phoenix Contact ST 1.5 Feed-Through Terminal Block
- Phoenix Contact 1404408 SAC-4P-5,0-PVC/M12FS Sensor/Actuator Cable, 5 m
- Phoenix Contact 3101197 MTK BU Knife-Disconnect Terminal Block
- Phoenix Contact 2966061 PLC-BSC-24DC/1/SEN Relay Base
- Phoenix Contact 2901535 RAD-DI4-IFS Radioline Digital I/O Extension Module
Frequently Asked Questions
What does the Phoenix Contact 2320157 do?
It is a diode redundancy module that decouples two 12-24 V DC supplies so one can take over seamlessly if the other fails.
What are the current ratings of the 2320157?
In redundancy mode it is rated 2 x 20 A, while in capacity-expansion mode the single output supports up to 40 A.
Is the 2320157 for 24 V DC systems only?
No. It accepts a 12-24 V DC nominal input with a wide 10-30 V DC range.
Is there a newer replacement for the 2320157?
Yes, the QUINT4-DIODE/12-24DC/2X20/1X40 (2907719) is the next-generation equivalent with enhanced diagnostics.
