Pepperl+Fuchs · PLC Module
NJ40U1N-sensor

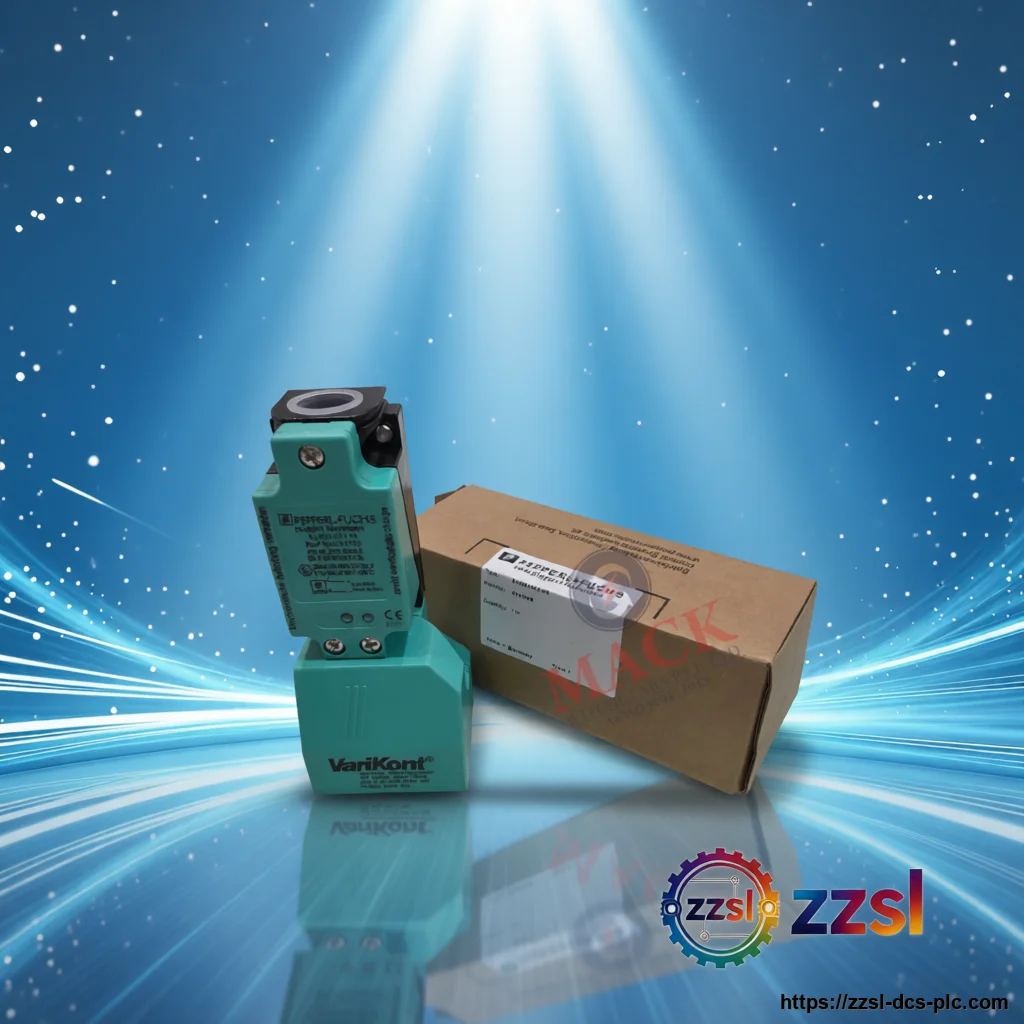

Pepperl+Fuchs Inductive proximity sensor NJ40+U1+N
Pepperl+Fuchs
Pepperl+Fuchs Inductive proximity sensor NJ40+U1+N
['Home', 'Sensors', 'Pepperl+Fuchs', 'NJ40+U1+N'] Need Pepperl+Fuchs NJ40+U1+N? Inductive proximity sensor for Intrinsi…
Specifications
| Brand | Pepperl+Fuchs |
|---|---|
| Model Number | NJ40+U1+N |
| Official Product Name | NJ40 Inductive Sensor (NAMUR) |
| Applicable System | Intrinsically safe position detection |
| Product Type | Inductive proximity sensor |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Active |
| Lifecycle note | Available (contact supplier for lead time) |
| Sensing distance | 40 mm (non-flush) |
| Supply | 8.2 V (NAMUR) |
| Frequency | 0-100 Hz |
| Housing | PBT |
| Protection | IP68 |
| Dimensions | 55 x 55 x 128 mm |
| Temperature | -25 to 100 C |
| Sensing type | Inductive, NAMUR (normally closed) |
Product Description
Basic Product Information
- 40 mm non-flush sensing range
- IP68 PBT housing for harsh duty
- Wide -25 to 100 C operating range
- NAMUR inductive sensor for intrinsic safety zones
Technical Specifications
Version & Model Difference
- ['Contact supplier for exact specifications regarding NJ40 variants.']
Application Scenarios
- Position detection in hazardous areas
- Metal part presence sensing
- Conveyor and machine monitoring
- A Pepperl+Fuchs NAMUR inductive proximity sensor with a 40 mm non-flush range.
