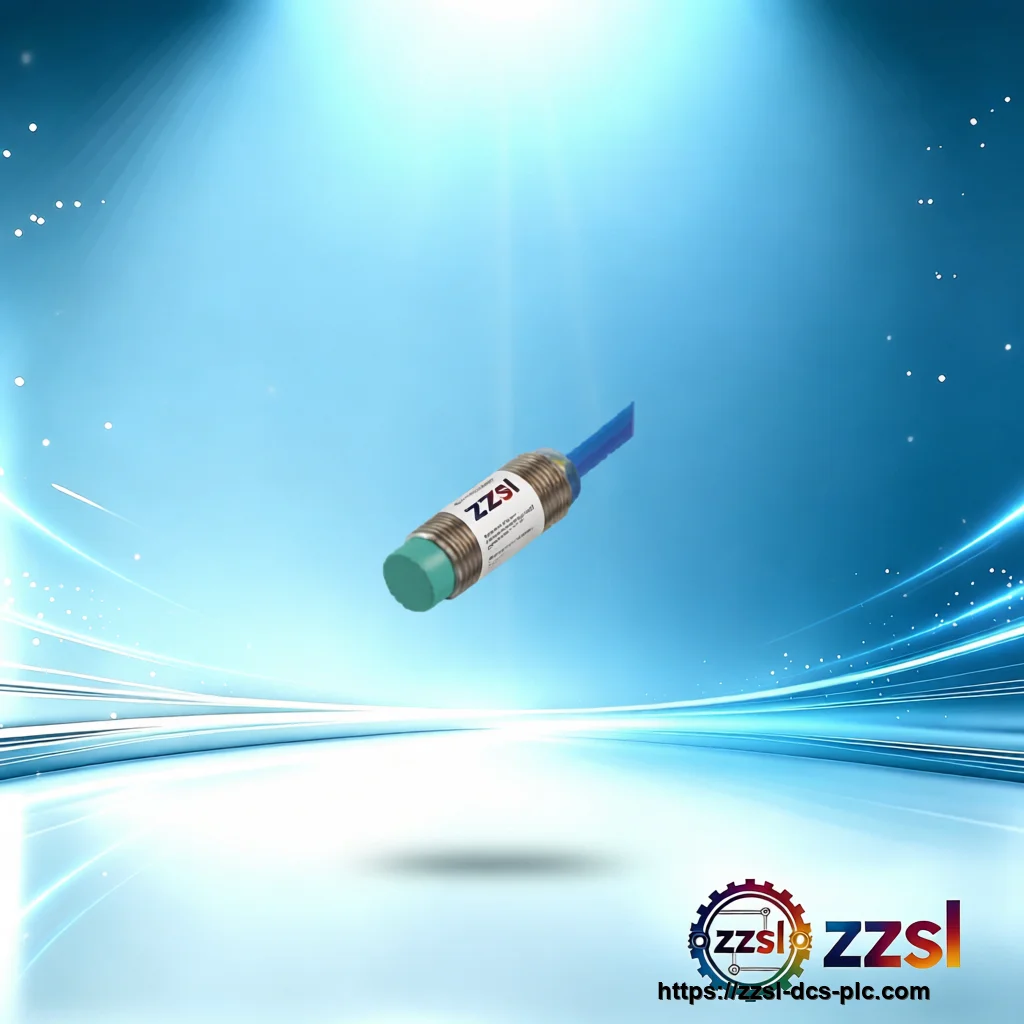

Pepperl+Fuchs Inductive proximity sensor NCN4-12GM35-N0-10M
Pepperl+Fuchs
Pepperl+Fuchs Inductive proximity sensor NCN4-12GM35-N0-10M
['Home', 'Sensors', 'Inductive Sensors', 'Pepperl+Fuchs NCN4-12GM35-N0'] Need Pepperl+Fuchs NCN4-12GM35-N0-10M? Inducti…
Specifications
| Brand | Pepperl+Fuchs |
|---|---|
| Model Number | NCN4-12GM35-N0-10M |
| Official Product Name | NAMUR Inductive Proximity Sensor NCN4-12GM35-N0-10M with 10 m cable |
| Applicable System | Intrinsically safe / hazardous-area detection |
| Product Type | Inductive proximity sensor (NAMUR) |
| Equivalent Standard | Contact supplier for exact specifications |
| Product Status | Active |
| Output type | NAMUR, normally closed (N/C) |
| Safety integrity | Not rated to a specific SIL by the manufacturer; suitability for a safety function must be validated in the application |
| Target | Ferrous and non-ferrous metal |
| Housing | Stainless steel 1.4305 / AISI 303, 12 mm cylindrical, 35 mm long |
| Supply / barrier | Contact supplier for exact specifications |
| Connection | Fixed PVC cable, 2 cores x 0.34 mm2, 10 m length, blue |
| Degree of protection | IP66 / IP67 |
| Ambient temperature | -25 to +100 degC (-13 to +212 degF) |
| Switching frequency | 0 to 800 Hz |
| Nominal voltage | 8.2 V DC (Ri approx. 1 kohm), 2-wire NAMUR |
| Current consumption | min. 3 mA (target absent); <= 1 mA (target detected) |
| Approvals | ATEX / IECEx (Ga, Gb, Da, Dc, Mb), cULus listed, NAMUR EN 60947-5-6:2000, IEC 60947-5-6:1999 |
| Sensing range | 4 mm (non-flush) |
Product Description
Basic Product Information
- NAMUR output for intrinsic safety with a barrier
- Normally-closed (N/C) switching function
- SIL2 functional safety certified
- Rugged housing for hazardous-area use
- 4 mm non-flush sensing range for metal targets
Technical Specifications
Version & Model Difference
The NCN4-12GM35-N0-10M is the 4 mm non-flush N/C NAMUR variant; flush, N/O and other-range versions exist in the NCN4 family. Select by sensing range and output logic. Contact supplier for exact specifications.
Application Scenarios
- Position and presence detection in Ex areas
- Hazardous-area machine safety loops
- Metal object counting and end-stop sensing
- It is designed for hazardous-area (Ex) detection with a barrier; confirm the exact Ex rating with the supplier.
