Pepperl+Fuchs · PLC Module
KFD2-WAC2-1D

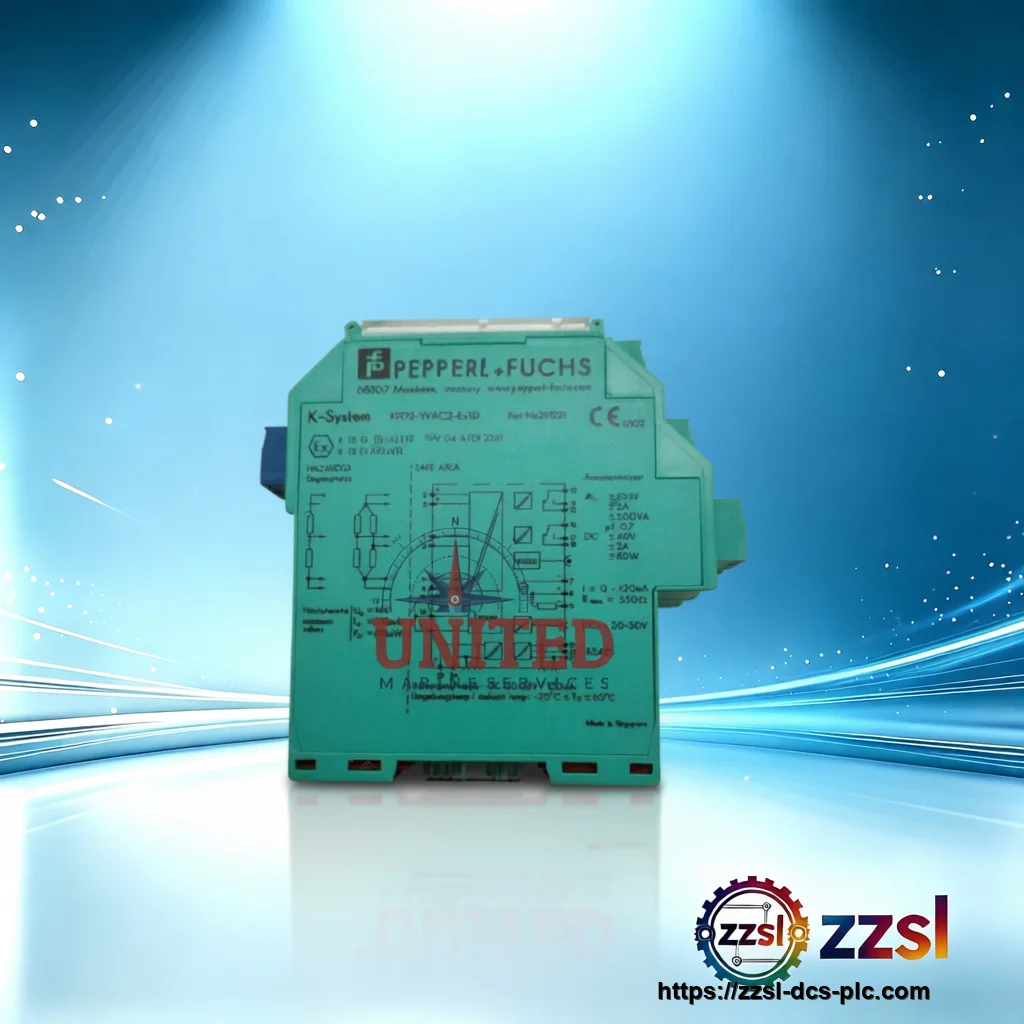

Pepperl+Fuchs Signal Conditioner KFD2-WAC2-1.D
Pepperl+Fuchs
Pepperl+Fuchs Signal Conditioner KFD2-WAC2-1.D
Home / Pepperl+Fuchs / Signal Conditioners / KFD2-WAC2-1.D Need Pepperl+Fuchs KFD2-WAC2-1.D? Signal Conditioner for Pepperl+Fuchs K-System Intrinsic Safety. Su…
Specifications
| Brand | Pepperl+Fuchs |
|---|---|
| Model Number | KFD2-WAC2-1.D |
| Official Product Name | KFD2-WAC2-1.D Strain Gauge Converter (K-System) |
| Applicable System | Pepperl+Fuchs K-System Intrinsic Safety |
| Product Type | Signal Conditioner / Strain Gauge Converter |
| Equivalent Standard | Contact supplier for cross-reference and alternative models |
| Product Status | Active |
| Lifecycle note | Active / Available spare part |
| Channels | 1-channel |
| Supply | 24 V DC (Power Rail) |
| Rated Voltage | 20 - 35 V DC |
| Input | Strain gauge full / half bridge |
| Output | 0 to +/-20 mA or 0 to +/-10 V |
| Accuracy | <= +/-0.05 % |
| Response Time | 300 - 850 ms |
| Protection | IP20 |
| Dimensions (W x H x D) | 40 x 119 x 115 mm |
| Weight | approx. 250 g |
| Product Type | Strain gauge converter / signal conditioner |
Product Description
Basic Product Information
- 24 V DC supply via Power Rail
- Full or half bridge strain gauge input
- Output 0 to +/-20 mA or 0 to +/-10 V
- Two relay alarm contacts, RS-485, line-fault detection
- 1-channel strain gauge signal conditioner (K-System)
Technical Specifications
Version & Model Difference
- Part of K-System signal conditioner range; no alternate revision verified. Contact supplier for cross-reference and exact specifications.
Application Scenarios
- Weighting and force measurement
- Tank and silo level by load cell
- Process signal isolation and conversion
- It is powered via the 24 V DC K-System Power Rail.
