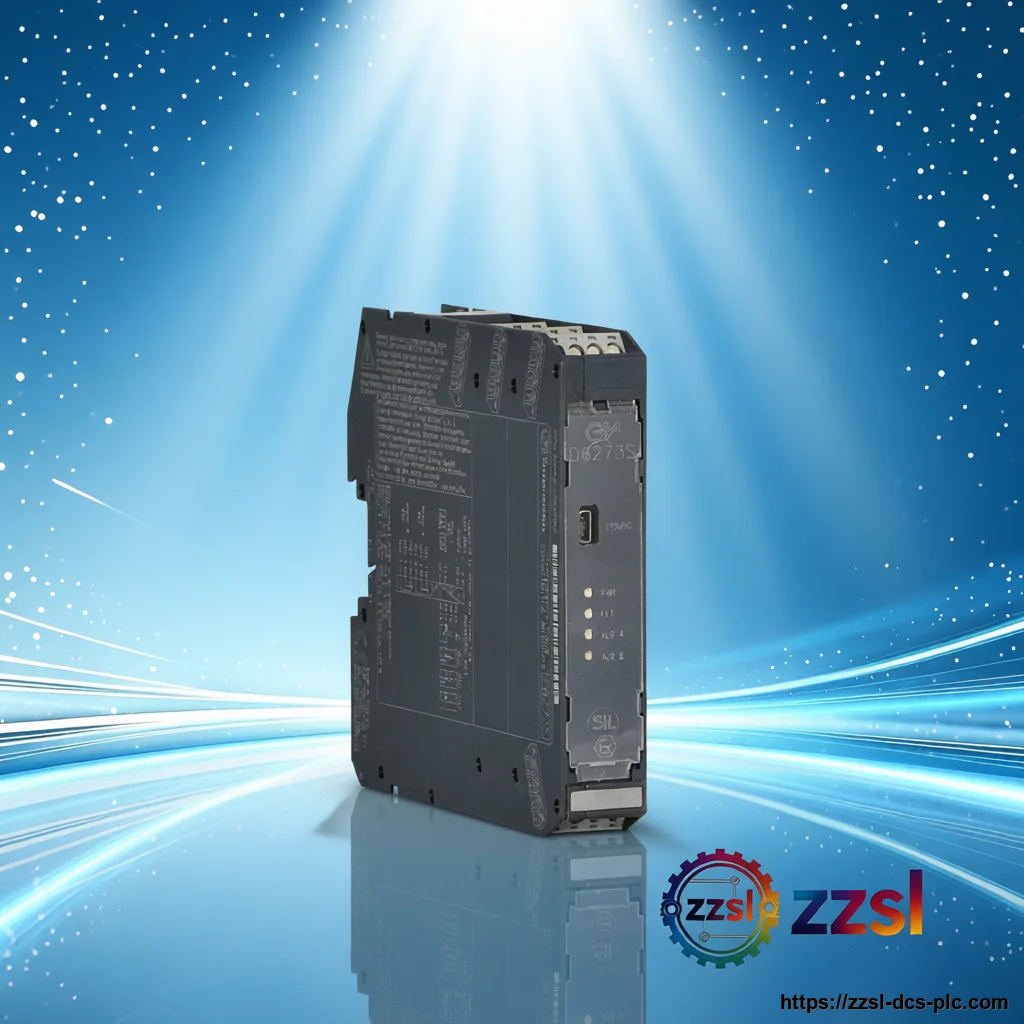

Pepperl+Fuchs Isolated Barrier D1072D/02
Pepperl+Fuchs
Pepperl+Fuchs Isolated Barrier D1072D/02
Home > Products > Pepperl+Fuchs > Signal Conditioners Need Pepperl+Fuchs D1072D/02? Isolated Barrier for K-System. Supplied with full traceability and…
Specifications
| Brand | Pepperl+Fuchs |
|---|---|
| Model Number | D1072D/02 |
| Official Product Name | Signal Conditioner D1072D/02 |
| Applicable System | K-System (KFD2 series compatible) |
| Product Type | Isolated Barrier / Signal Conditioner |
| Equivalent Standard | ATEX, IECEx, SIL 2 (per IEC 61508) |
| Product Status | In Stock |
| Supply Voltage | 24V DC (20-30V DC) |
| Input Signal | 4-20 mA (2-wire transmitter) |
| Output Signal | 4-20 mA (passive or active) |
| Isolation Voltage | 250V AC (input/output/power) |
| Ambient Temperature | -20°C to +60°C |
| Mounting | DIN rail (35 mm) |
| Protection Class | IP20 |
| Certifications | ATEX, IECEx, SIL 2 |
| Power Consumption | ≤ 1.2 W per channel |
| Number of Channels | 2 |
Product Description
It belongs to the K-System series, known for its modularity and reliability in hazardous area signal transmission. This device provides galvanic isolation and signal conversion for 2-wire transmitters, ensuring safe and accurate signal transfer between field devices and control systems. With two isolated channels, the D1072D/02 operates on a 24V DC power supply and supports standard analog signals (4-20 mA). It features a compact DIN rail mount design, making it easy to install in control cabinets. The device is certified for use in potentially explosive atmospheres (ATEX, IECEx), ensuring compliance with international safety standards. The D1072D/02 is engineered for high precision and low power consumption, with an ambient temperature range of -20°C to +60°C. Its robust construction and long service life make it a preferred choice for process industries such as chemical, oil & gas, and pharmaceutical plants. The device is a genuine OEM product, available as new with full warranty. The Pepperl+Fuchs D1072D/02 is a high-performance signal conditioner designed for industrial automation and process control applications.
Basic Product Information
- Galvanic isolation between input, output, and power supply
- 24V DC power supply (20-30V DC range)
- DIN rail mount (35 mm) for easy installation
- ATEX and IECEx certified for hazardous areas
- High accuracy and low power consumption
- 2-channel isolated barrier for 2-wire transmitters
Technical Specifications
Version & Model Difference
The D1072D/02 is part of the Pepperl+Fuchs K-System series. Compared to earlier versions like the D1072D (without /02 suffix), the /02 version includes enhanced EMC immunity and updated certification standards. It is also compatible with newer KFD2 isolators, offering similar functionality but with improved terminal layout and marking.
