Parker Hannifin · PLC Module
WM10-A3-point

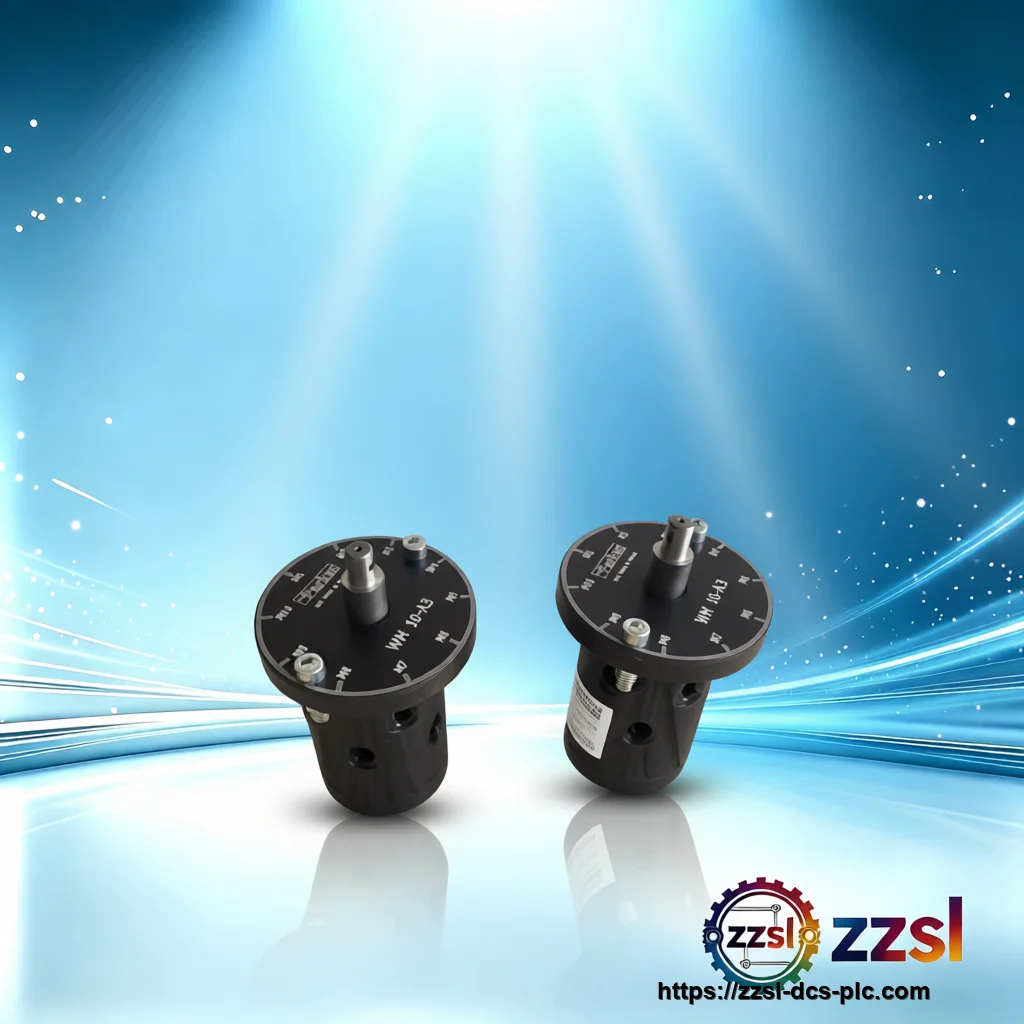

Parker Manual pressure gauge selector valve WM10-A3
Parker Hannifin
Parker Manual pressure gauge selector valve WM10-A3
['Home', 'Hydraulics', 'Parker Valves', 'Selector Valves', 'WM10-A3'] Need Parker WM10-A3? Manual pressure ga…
Specifications
| Brand | Parker Hannifin |
|---|---|
| Model Number | WM10-A3 |
| Official Product Name | Pressure Gauge Selector Valve |
| Applicable System | Hydraulics / General industrial |
| Product Type | Manual pressure gauge selector valve |
| Equivalent Standard | ISO 4406 (filtration reference) |
| Product Status | Active |
| Max operating pressure | 315 bar |
| Connection size | G1/8 |
| Seal material | FPM |
| Body material | Steel |
| Mounting | Panel mount |
| Actuation | Manual rotary handle |
| Operating temperature | -20 to +60 degC |
| Weight | 1.8 kg |
| Number of measuring points | 10 |
Product Description
Basic Product Information
- Manual rotary selection with detent locking
- Pressure relief of gauge after measurement
- Panel mounting, G1/8 connections
- FPM seals, steel body, rated 315 bar
- Connects up to 10 measuring points to one gauge
Technical Specifications
Version & Model Difference
- ['WM10-A3 (10-point) vs WM5-A3 (5-point): same series, different number of measuring positions.', 'Verify G1/8 port and FPM seal compatibility with the hydraulic fluid used.']
Application Scenarios
- Multi-point pressure monitoring in hydraulic systems
- Test benches and industrial machinery
- Marine and mobile hydraulic panels
