Parker Hannifin · PLC Module
DSH121NR

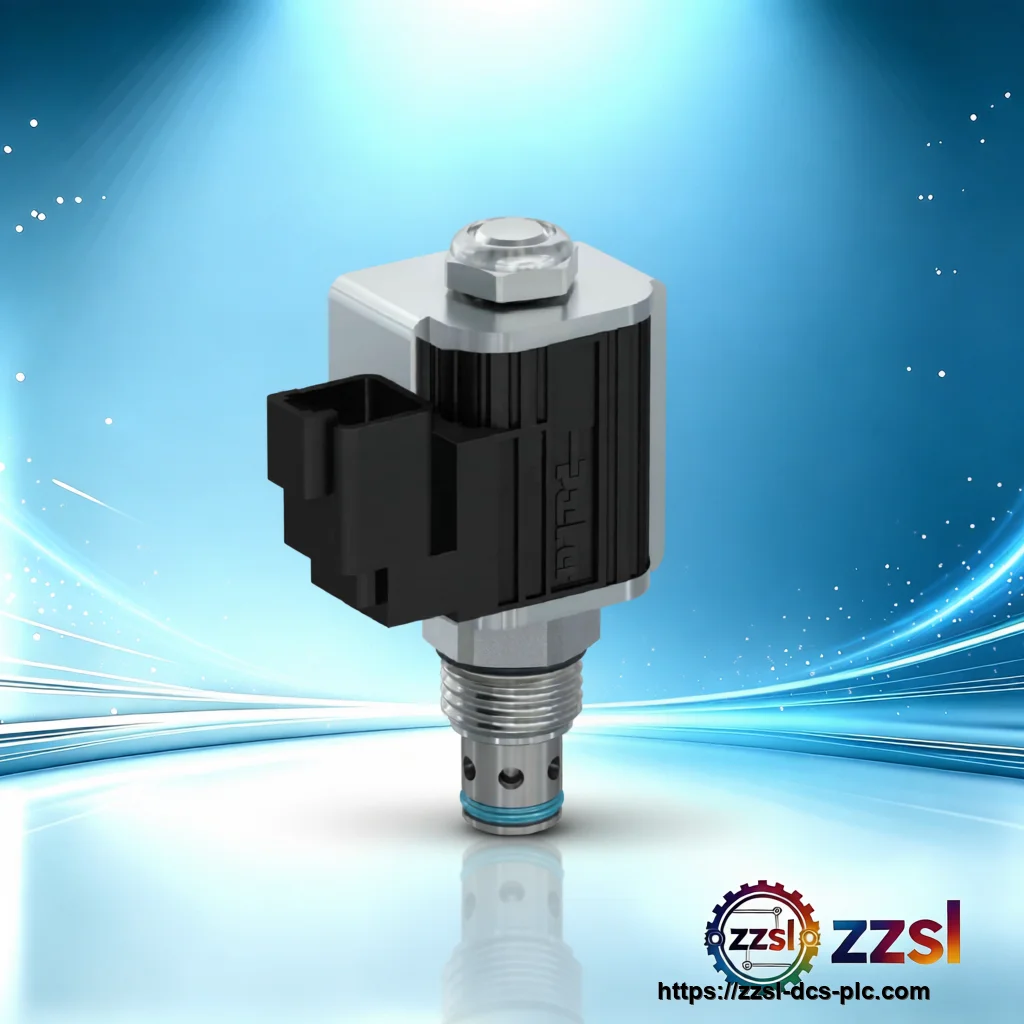

Parker 2-way solenoid cartridge valve DSH121NR
Parker Hannifin
Parker 2-way solenoid cartridge valve DSH121NR
['Home', 'Hydraulics', 'Parker Valves', 'Solenoid Cartridges', 'DSH121NR'] Need Parker DSH121NR? 2-way soleno…
Specifications
| Brand | Parker Hannifin |
|---|---|
| Model Number | DSH121NR |
| Official Product Name | Solenoid Cartridge Valve |
| Applicable System | Hydraulics / Industrial and mobile |
| Product Type | 2-way solenoid cartridge valve (normally open) |
| Equivalent Standard | ISO 4406 (filtration reference) |
| Product Status | Active |
| Rated flow | 90 L/min (24 GPM) typical |
| Max operating pressure (P/A/B) | 5000 psi (350 bar) |
| Tank pressure (T) | 207 bar (3000 psi) |
| Cavity | C12-2 |
| Port | 1-1/16-12 UN-2A male threaded |
| Body material | Steel, zinc-plated |
| Seal material | NBR / polyurethane |
| Operating temperature | -34 to +121 degC |
| Configuration | Free reverse flow (NR) |
| Function | 2-way, normally open (NO) |
Product Description
Basic Product Information
- Screw-in cartridge, C12-2 cavity
- Rated up to 5000 psi (350 bar) and 24 GPM (90 L/min)
- Steel body with NBR / polyurethane seal
- Manual override option available
- 2-way, 2-position, normally open poppet valve
Technical Specifications
Version & Model Difference
- ['DSH121NR (normally open, free reverse) vs DSH121N (normally open, metered reverse): reverse-flow behaviour differs.', 'DSH081 (size 08) vs DSH121 (size 12): different flow and cavity size.']
Application Scenarios
- Directional control in industrial hydraulics
- Mobile equipment circuits
- Clamping and holding functions
- Parker WM10-A3 Pressure Gauge Selector Valve (10-point)
- Parker RDH103S50 Differential Area Relief Valve
- Parker S10LD-D024 Solenoid Coil 24V DC
- Parker PRH102S30 Pilot Operated Pressure Reducing Valve
- Parker 14E111B18FC Solenoid Valve (14E111B18FC)
