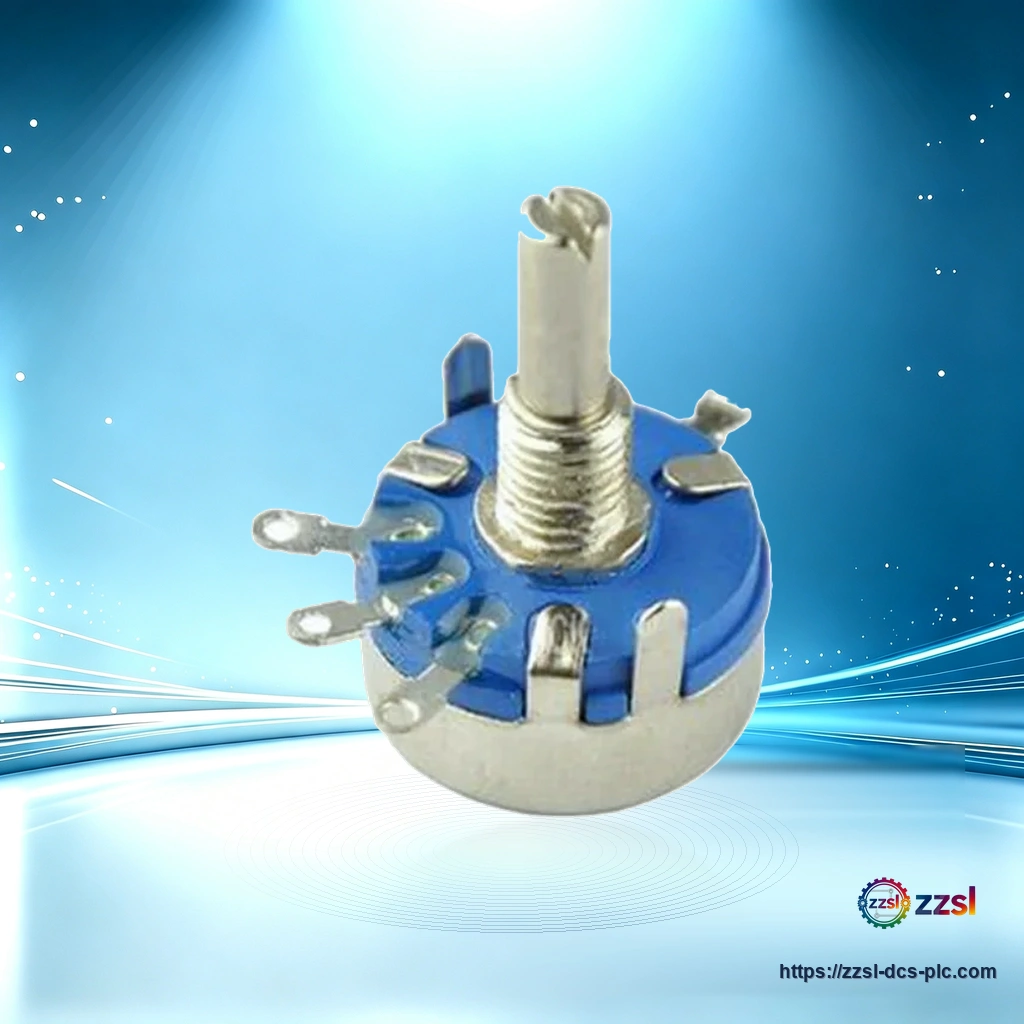

Bettomshin Rotary Potentiometer WH5-II-1W
Home > Bettomshin > Potentiometers > WH5-II-1W Need Bettomshin WH5-II-1W? Rotary Potentiometer for Panel-mount manual control. Supplied with full trac…
Contact us for current availability and best price of WH5-II-1W.
Specifications
| Brand | Bettomshin |
|---|---|
| Model Number | WH5-II-1W |
| Official Product Name | WH5 Series Single-Turn Rotary Carbon-Film Potentiometer, 1 W |
| Applicable System | Panel-mount manual control (audio, instrumentation, general electronics) |
| Product Type | Rotary Potentiometer |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Type | Single-turn rotary potentiometer |
| Power Rating | 1 W (model variant) |
| Resistance Value / Range | 5 kOhm to 10 kOhm (this listing) |
| Resistance Tolerance | plus or minus 20% |
| Resistance Taper | A / B / C |
| Total Mechanical Rotation Angle | 250 degrees (plus or minus 5 degrees) |
| Rated Operating Voltage | Up to 150 V AC / 200 V DC (taper dependent) |
| Rotational Noise | 47 mV max. |
| Insulation Resistance | 100 MOhm min. at 500 V DC |
| Rotational Life | Approx. 10,000 cycles |
| Operating Temperature | Up to 60 degC |
| Series | WH5 |
Product Description
WH5 potentiometers provide a continuous resistance track with A, B or C taper and a nominal resistance tolerance of plus or minus 20%, and this listing covers values from 5 kOhm to 10 kOhm. The carbon-film track and metal-shaft construction suit volume, gain and set-point adjustment on control panels and audio equipment. Rated operating voltage is up to 150 V AC or 200 V DC depending on taper, with a rotational life of around 10,000 cycles. The Bettomshin WH5-II-1W is a single-turn rotary potentiometer from the WH5 family, a widely used panel-control variable resistor offered here in a 1 W power variant.
Basic Product Information
- Carbon-film resistance track with A, B or C taper
- Nominal resistance tolerance plus or minus 20% across the standard WH5 range
- Total mechanical rotation angle approximately 250 to 260 degrees
- Rotational life of around 10,000 cycles
- Rated operating voltage up to 150 V AC / 200 V DC, rotational noise 47 mV max.
- Single-turn rotary potentiometer from the WH5 series, 1 W power variant
Technical Specifications
Version & Model Difference
The WH5-II-1W is a variant of the WH5 single-turn rotary potentiometer family; the -1W suffix denotes the 1 W power rating and II the body/shaft style. WH5 potentiometers are available in different resistance values, tapers (A/B/C) and shaft types, so the exact resistance and taper should be confirmed against the required part before ordering.
Application Scenarios
- Volume, gain and tone adjustment in audio equipment
- Set-point and trimming adjustment on control panels
- General-purpose educational and hobby electronics
Frequently Asked Questions
What is the WH5-II-1W?
It is a single-turn rotary potentiometer from the WH5 family, supplied in a 1 W power variant.
What resistance values are available?
This listing covers 5 kOhm to 10 kOhm values; the wider WH5 range spans approximately 1 kOhm to 2.2 MOhm.
What is the rotation angle?
The total mechanical rotation angle is approximately 250 degrees (plus or minus 5 degrees).
How long does it last?
The WH5 series has a rated rotational life of around 10,000 cycles.
