Carlo Gavazzi Optical point level sensor VP02EP
Other Brands

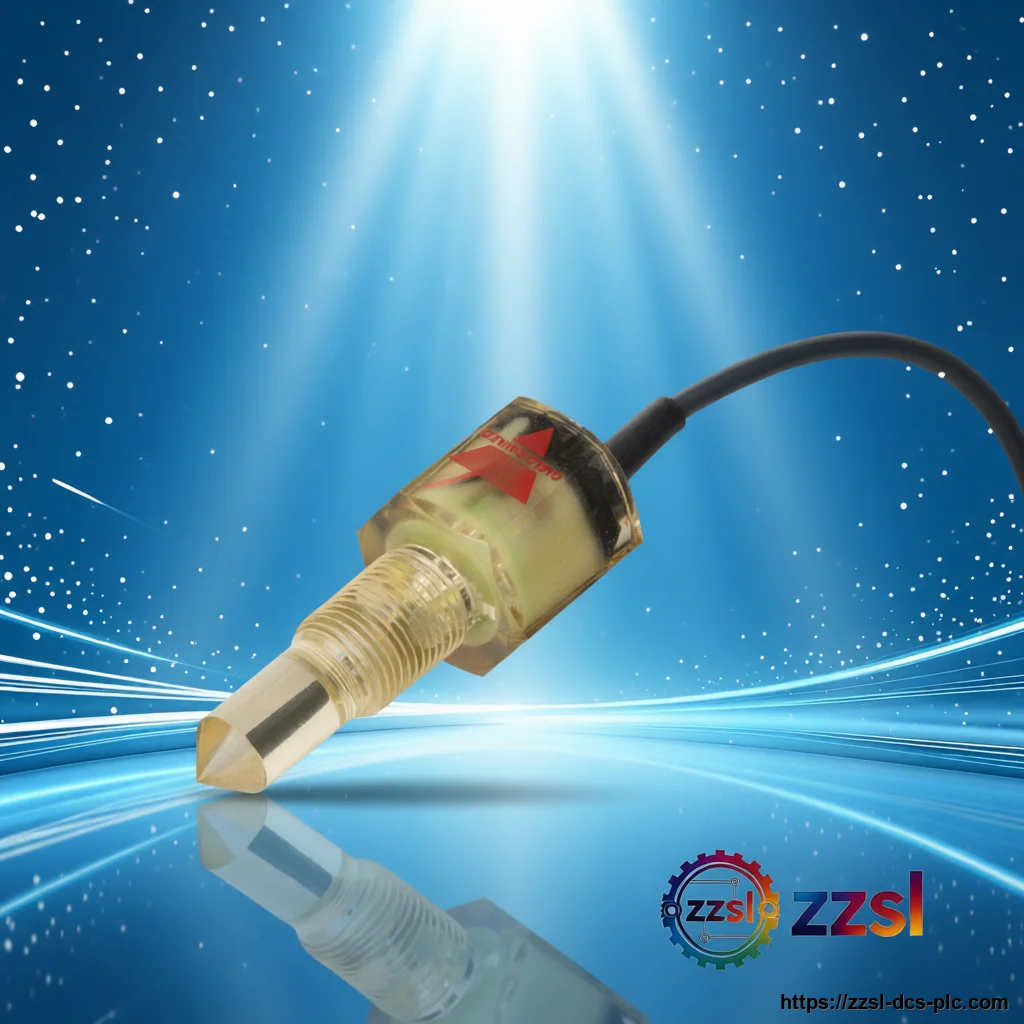

Carlo Gavazzi Optical point level sensor VP02EP
Home > Carlo Gavazzi > Level Sensors > VP02EP Need Carlo Gavazzi VP02EP? Optical point level sensor for Liquid level detection / tank monitoring. Supp…
Specifications
| Brand | Carlo Gavazzi |
|---|---|
| Model Number | VP02EP |
| Official Product Name | Optical Liquid Level Sensor, VP Series (PNP, make switching) |
| Applicable System | Liquid level detection / tank monitoring |
| Product Type | Optical point level sensor |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Output | PNP transistor, make switching (ON in liquid) |
| Rated operational voltage | 10 to 40 V DC |
| Rated operational current | Continuous 200 mA |
| No-load supply current | 12 mA |
| Sensing accuracy (level difference) | 5 mm horizontal, 2.5 mm vertical mounting |
| Ambient light immunity | 0 to 100 lux |
| Frequency of operating cycles | 30 Hz |
| Degree of protection | IP67 |
| Operating temperature | -20 to +80 °C |
| Storage temperature | -40 to +100 °C |
| Housing and prism material | Polysulfone (PES) |
| Pipe thread | 3/8" PT |
| Pressure | 10 bar at +60 °C |
| Connection | 2 m PVC cable, 3 x 0.25 mm2 (DC transistor type) |
| Weight | Approx. 90 g |
| Indication | LED, yellow (output status) |
| Sensing principle | Optical (infrared) point level detection |
Product Description
Because it has no floats or moving parts, it is highly resistant to vibration, sediment and wear, making it reliable in small tanks and turbulent fluids. It provides a PNP transistor output that switches on when the polysulfone tip is immersed, and it is immune to ambient light. A 3/8 PT thread and an IP67 rating allow direct mounting into a container wall. The Carlo Gavazzi VP02EP is an optical point level sensor from the VP series, designed to detect liquids using the total internal reflection principle.
Basic Product Information
- Infrared (Ga-As) sensing head with built-in amplifier
- PNP transistor output, switching on when the sensor is in liquid
- Polysulfone housing with high chemical resistance to acids and bases
- Threaded 3/8 PT (ISO 228/1-G 3/8) mounting into the container wall
- IP67 protection with yellow LED output indication
- Optical point level sensing by total internal reflection, with no moving parts
Technical Specifications
Version & Model Difference
The VP02EP is the PNP make-switching version of the Carlo Gavazzi VP optical level sensor family. VP01 models switch OFF in liquid (break switching) while VP02 models switch ON in liquid; VP01/02 use a polysulfone body for acids and bases, and VP03/04 use polyamide 12 for solvents. AC (SCR) versions such as VP02-110TB and VP02-230TB cover 110/230 V AC supplies.
Application Scenarios
- Low-level alarm in hydraulic and lubricating oil tanks
- Cleaning machinery and industrial washing systems
- Medical equipment and laboratory analysers
- Compressed-air condensate detection and drain control
- Industrial coffee and beverage machines
- No. It operates in oil, waste water and aqueous solutions such as beer, wine and alcohol without additional accessories.
- It screws into the container wall via a 3/8" PT thread and connects through a 2 m PVC cable.
- Carlo Gavazzi SPD484801 DIN-Rail Power Supply
- Carlo Gavazzi SPD242401 Industrial DIN Rail Switching Power Supply
Frequently Asked Questions
What does the VP02EP measure?
It is an optical point level sensor that detects whether the polysulfone tip is in air or immersed in liquid, using infrared total internal reflection.
What output does it provide?
A PNP transistor output (make switching, ON when immersed) rated up to 200 mA at 10–40 V DC.
Does it need accessories to work in oil or water?
No. It operates in oil, waste water and aqueous solutions such as beer, wine and alcohol without additional accessories.
How is it mounted?
It screws into the container wall via a 3/8" PT thread and connects through a 2 m PVC cable.
