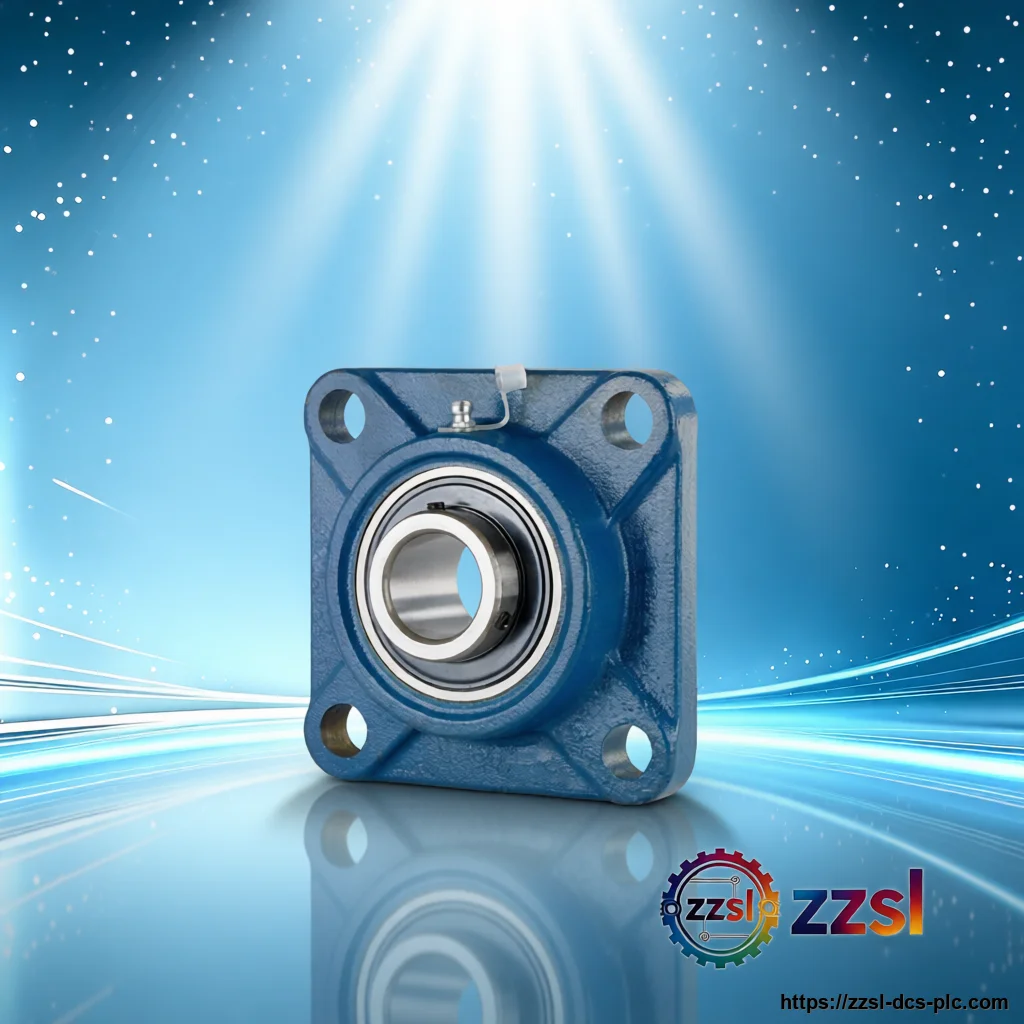

Generic Bearing Unit Square flanged mounted ball UCF315
UCF315-75mm
Other Brands
Generic Bearing Unit Square flanged mounted ball UCF315
Home > Products > Generic > Mounted Bearing Generic Bearing Unit UCF315 Square flanged mounted ball bearing unit. For Shaft support in conveyors, mach…
Contact us for current availability and best price of UCF315-75mm.
Specifications
| Brand | Generic / Multiple (SKF, NSK, FYH, Dodge, etc.) |
|---|---|
| Model Number | UCF315 |
| Official Product Name | Square Flanged Ball Bearing Unit (UC315 insert + F315 housing) |
| Applicable System | Shaft support in conveyors, machinery and material handling |
| Product Type | Square flanged mounted ball bearing unit |
| Equivalent Standard | JIS (also ISO/DIN equivalent) |
| Product Status | Active (standard size) |
| Bore Diameter (d) | 75 mm |
| Bolt Hole Spacing (J) | 184 mm |
| Overall Length (L) | 236 mm |
| Basic Dynamic Load (C) | 114 kN |
| Basic Static Load (C0) | 76.5 kN |
| Limiting Speed | 2300 r/min |
| Weight | Approx. 11.5 kg |
| Shaft Diameter | 75 mm |
Product Description
It consists of an extended-inner-ring insert with set-screw locking housed in a cast iron four-bolt flange, suitable for constant or alternating rotation. It is a generic/interchangeable size produced by SKF, NSK, FYH, Dodge and others. The UCF315 is a square flanged ball bearing unit with a 75 mm shaft diameter, compliant with Japanese Industrial Standards (JIS).
Basic Product Information
- Set-screw locking extended inner ring insert (UC315)
- Cast iron housing, sealed on both sides with flinger
- Accommodates moderate initial misalignment
- Cost-effective, ready-to-mount unit
- 75 mm shaft diameter, square four-bolt flange
Technical Specifications
Version & Model Difference
The UCF315 is an industry-standard size; the insert (UC315) and housing (F315) are interchangeable across brands. Variants include different sealing, locking and housing materials (e.g. stainless Klean-Gard).
Application Scenarios
- Conveyor and material handling systems
- Fans, blowers and general industrial machinery
- Agricultural, mining and processing equipment
- Replacement of standard 75 mm flanged bearing units
Frequently Asked Questions
What is the bore of UCF315?
It has a 75 mm shaft diameter (insert UC315 in housing F315).
What load ratings does it have?
Basic dynamic load rating is 114 kN and static load 76.5 kN.
Which brands make it?
It is a standard size produced by SKF, NSK, FYH, Dodge, Timken and many others.
What are its dimensions?
Bolt-hole spacing 184 mm, overall length 236 mm, weight approximately 11.5 kg.
