SJFILTER Tank Mounted Self Sealing TF-100X180L-C
['Home', 'Spare Parts', 'SJFILTER', 'TF-100X180L-C'] Need SJFILTER TF-100X180L-C? Tank Mounted Self Sealing Suction Oil…
Contact us for current availability and best price of TF-100X180L-C.
Specifications
| Brand | SJFILTER |
|---|---|
| Model Number | TF-100X180L-C |
| Official Product Name | TF-100X180L-C Tank Mounted Self Sealing Suction Oil Filter |
| Applicable System | Hydraulic reservoir suction lines (pump inlet protection) |
| Product Type | Tank Mounted Self Sealing Suction Oil Filter |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | Available - element and housing quoted per enquiry |
| Nominal Flow Rate | 100 L/min (model code TF-100) |
| Filtration Rating | 180 micron (model code 180) |
| Filter Element Model | TFX-100x180 |
| Clogging Indicator | ZS-I type (C in the model code); signals at 0.018 MPa vacuum |
| Bypass Valve Opening Pressure | 0.02 MPa (vacuum) |
| Self Sealing Valve | Manual self sealing valve, closes when the cover is opened |
| Mounting | Tank side, top or bottom; suction tube immersed below the oil level |
| Outlet Connection | Pipe or flanged outlet |
| Material | Aluminium alloy housing and pleated element (per supplier listing) |
| Working Temperature | -30 C to +110 C (per supplier listing) |
| Country of Origin | Contact us for exact specifications (suppliers list China) |
| Series | TF series tank mounted self sealing suction filter (replacement for LXZ series) |
Product Description

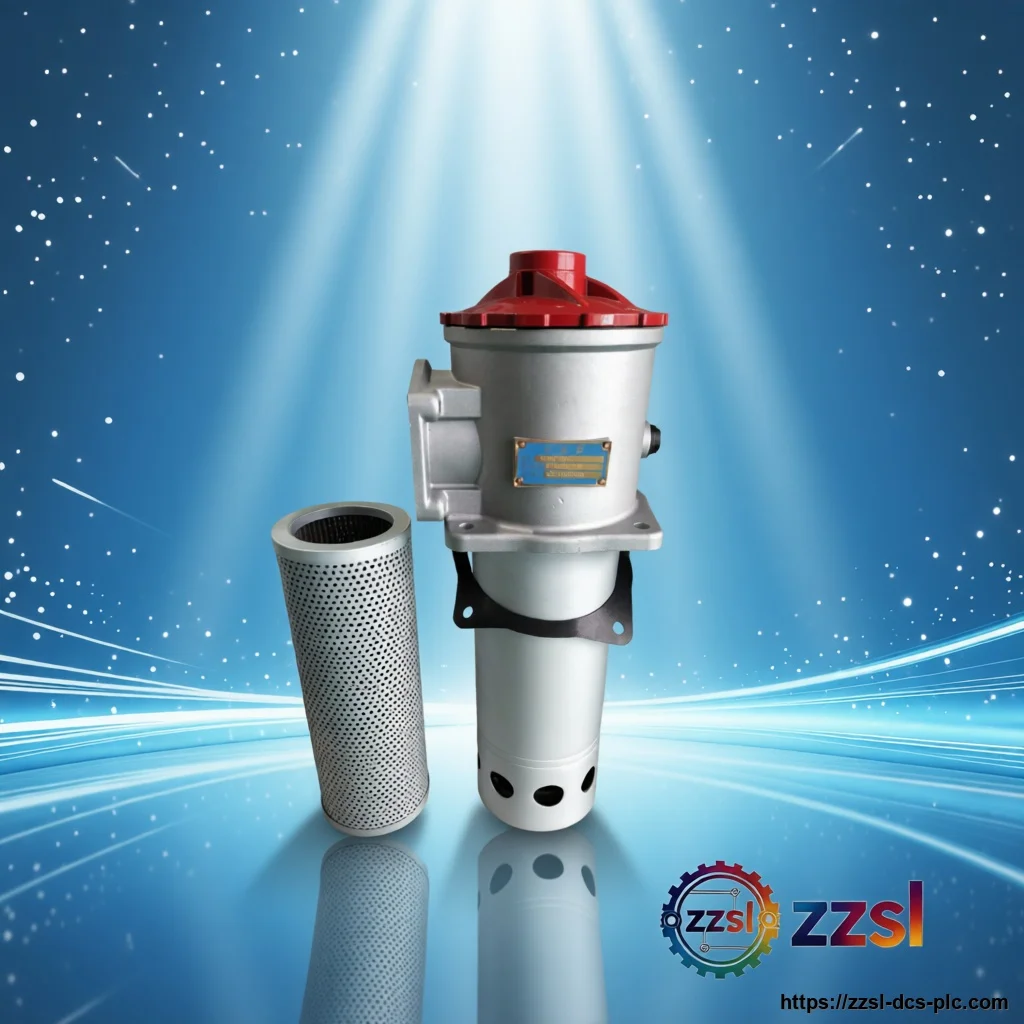

It is installed at the pump suction port on the side, top or bottom of the hydraulic reservoir, with the suction tube immersed below the oil level and the filter head outside the tank. The self sealing valve closes when the cover is opened, so the element can be cleaned or replaced without draining the reservoir. A ZS-I type clogging indicator signals at 0.018 MPa vacuum and an internal bypass valve opens at 0.02 MPa to prevent pump cavitation. The TF-100X180L-C is a tank mounted self sealing suction oil filter (TF series, the structural replacement for the LXZ series).
Basic Product Information
- Nominal flow rate 100 L/min and 180 micron filtration rating per the model code TF-100x180
- ZS-I type clogging indicator signals at 0.018 MPa vacuum differential pressure
- Bypass valve opens at 0.02 MPa to prevent pump cavitation if the element is clogged
- Tank side, top or bottom mounting with the suction tube immersed below the oil level
- Structural replacement for the LXZ series suction filter range
- Self sealing valve closes automatically when the cover is opened, so elements can be changed without draining the tank
Technical Specifications
Version & Model Difference
TF series suction filters at the same 100 L/min nominal flow are available with different filtration ratings, for example TF-100x80L-C (80 micron), TF-100x100L-C (100 micron) and TF-100x180L-C (180 micron); the element model follows the filter code (TFX-100x180). Water-glycol compatible versions carry the BH prefix (for example TF-BH-160x80L-C). Confirm the flow, filtration rating and indicator option against the existing unit.
Application Scenarios
- Hydraulic power unit suction lines requiring filtration down to 180 micron
- Machine tool and industrial hydraulic reservoirs where elements must be changed without draining the tank
- Mobile and industrial hydraulic systems where pump cavitation protection is required
- SJFilter TF-100X180L-C Hydraulic Suction Oil Filter
- SJFILTER SGF-H60X40FC Hydraulic Filter Element
Frequently Asked Questions
What is the TF-100X180L-C?
It is a tank mounted self sealing suction oil filter from the TF series, with a nominal flow rate of 100 L/min and 180 micron filtration rating. It is mounted at the pump suction port on the hydraulic reservoir.
How does the self sealing function work?
The filter head contains a manual self sealing valve. When the cover is opened to change or clean the element, the valve closes automatically and isolates the tank, so oil does not run out. The valve can also be pushed open to drain the tank.
What happens if the element becomes clogged?
At 0.018 MPa vacuum the ZS-I type indicator signals that the element should be cleaned or replaced. If it is not changed and vacuum reaches 0.02 MPa, the bypass valve opens automatically to keep the pump from cavitating.
How do I order the TF-100X180L-C and its element?
Contact us with the filter code from the existing unit and the quantity of filters or elements (TFX-100x180) required. Price, stock and lead time are confirmed per order.
