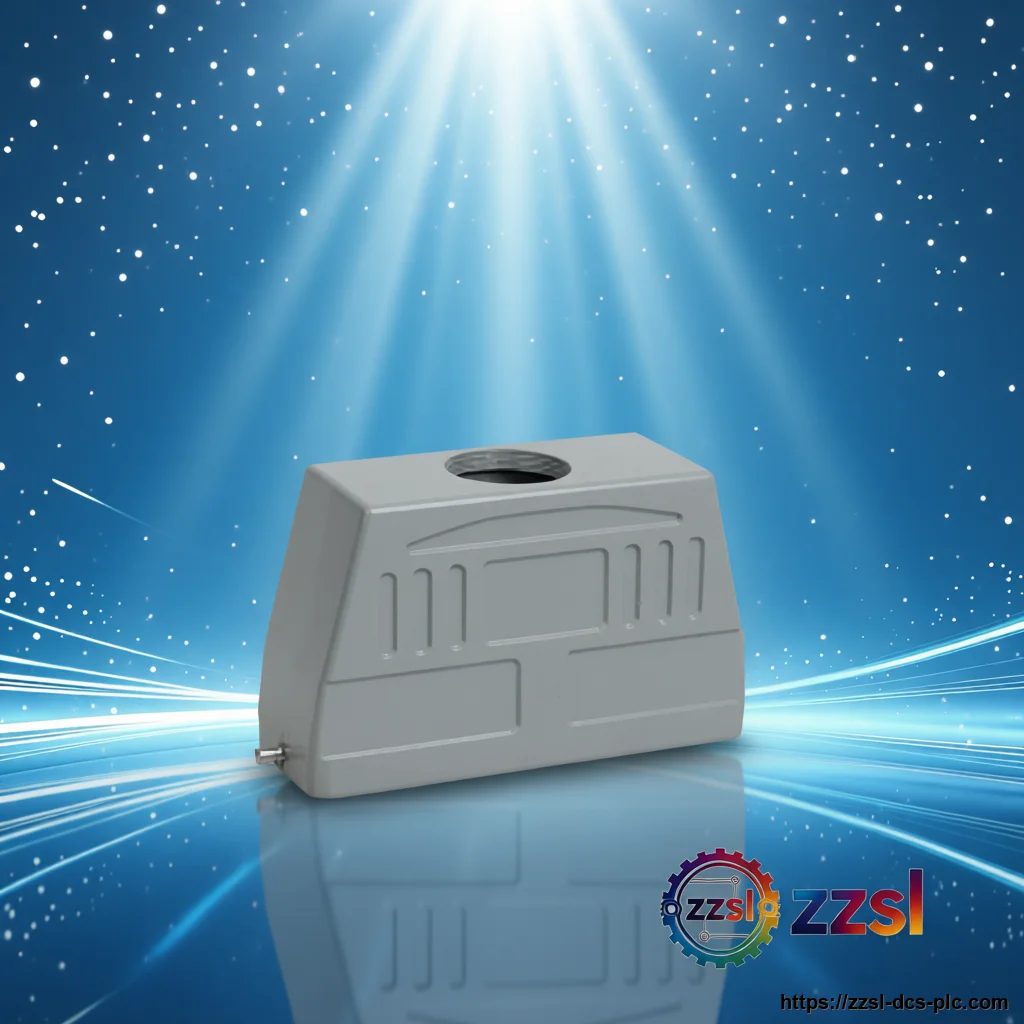

SMICO Heavy Duty Connector Hood SO-H24B-TKH-2B-M32
SO-H24B-TKH-2B-M32
Other Brands
SMICO Heavy Duty Connector Hood SO-H24B-TKH-2B-M32
['Home', 'Spare Parts', 'SMICO', 'SO-H24B-TKH-2B-M32'] Need SMICO SO-H24B-TKH-2B-M32? Heavy Duty Connector Hood for Ind…
Specifications
| Brand | SMICO |
|---|---|
| Model Number | SO-H24B-TKH-2B-M32 |
| Official Product Name | SMICO SO-H24B-TKH-2B-M32 Heavy Duty Connector Hood |
| Applicable System | Industrial heavy duty connector assemblies (HE / HD series inserts) |
| Product Type | Heavy Duty Connector Hood / Housing |
| Equivalent Standard | cross-reference available on request |
| Product Status | Available - stock and lead time confirmed per enquiry |
| Order Number | 19300240447 |
| Housing Size | H24B |
| Type | Hood (top entry) with double lever locking, TKH-2B style |
| Cable Entry | M32 |
| Material | Aluminium die-cast |
| Colour | Grey |
| Locking Element | Lever type metal elastic pressing; stainless steel lever, polyamide lever material |
| Sealing | NBR |
| Limiting Temperature | -40 C to +125 C |
| Flammability | UL 94 V0 |
| Degree of Protection | IP65 (for coupled connector, per EN 60529 / DIN EN 60 529) |
| Compatible Inserts | HE and HD series inserts; also stated compatible with Harting, ILME, Weidmuller and TE inserts |
| Standard / Certification | EN 61984, DIN 5510-2; UL, CUL, CE, RoHS, DMT |
| Cross Reference | H24B-TKH-2B-M32, order number 19300240447 (equivalent designation used by other brands) |
| Weight | available upon request |
| Manufacturer | Zhejiang Smico Electric Power Equipment Co., Ltd. (SMICO), China |
Product Description
It is an aluminium die-cast hood with NBR sealing, rated IP65 when coupled, and is used to protect HE and HD series inserts (and equivalent inserts from other brands) in industrial, machinery, robotics, energy and railway applications. The manufacturer order number is 19300240447, which is also the cross-reference for the equivalent Harting H24B hood. The SMICO SO-H24B-TKH-2B-M32 is a heavy duty connector hood (top entry housing) in the H24B size, with a double lever locking mechanism and an M32 cable entry.
Basic Product Information
- Double lever locking element in stainless steel for reliable mating
- IP65 degree of protection when coupled, with NBR sealing
- Limiting temperature -40 C to +125 C and UL 94 V0 flammability rating
- Compatible with HE and HD series inserts, and with inserts from other major connector brands per the manufacturer
- Certified to UL, CUL, CE, RoHS and DMT; designed to EN 61984
- H24B size die-cast aluminium hood in grey with an M32 cable entry
Technical Specifications
Version & Model Difference
SMICO supplies the H24B hood in single lever and double lever versions, with different cable entries (for example M25, M32) and with bulkhead or surface mounting housings (H24B-AG, H24B-AD style). The TKH-2B designation identifies the double lever hood variant, and the M32 suffix the cable entry thread. Confirm the existing hood marking before ordering a replacement.
Application Scenarios
- Machinery and automation control cabinet interfaces
- Robotics and assembly line power and signal connections
- Energy distribution and renewable energy installations
- Railway and construction machinery wiring harnesses
Frequently Asked Questions
What is the SO-H24B-TKH-2B-M32?
It is an H24B size heavy duty connector hood from SMICO with a double lever locking mechanism and an M32 cable entry, made of die-cast aluminium. It is used with HE or HD series inserts to build a pluggable power or signal connector.
What is the degree of protection of this hood?
IP65 when coupled to a matching H24B housing, tested according to EN 60529 / DIN EN 60 529, with an NBR seal. The limiting temperature is -40 C to +125 C.
Which inserts fit the SO-H24B-TKH-2B-M32 hood?
HE and HD series inserts. The manufacturer also states compatibility with inserts from Harting, ILME, Weidmuller and TE, so mixed brand assemblies are possible.
How do I order this H24B hood?
Contact us with the quantity and confirm the housing size marking on the existing connector (H24B), the cable entry thread (M32) and the locking type. Price, stock and lead time are confirmed per order.
