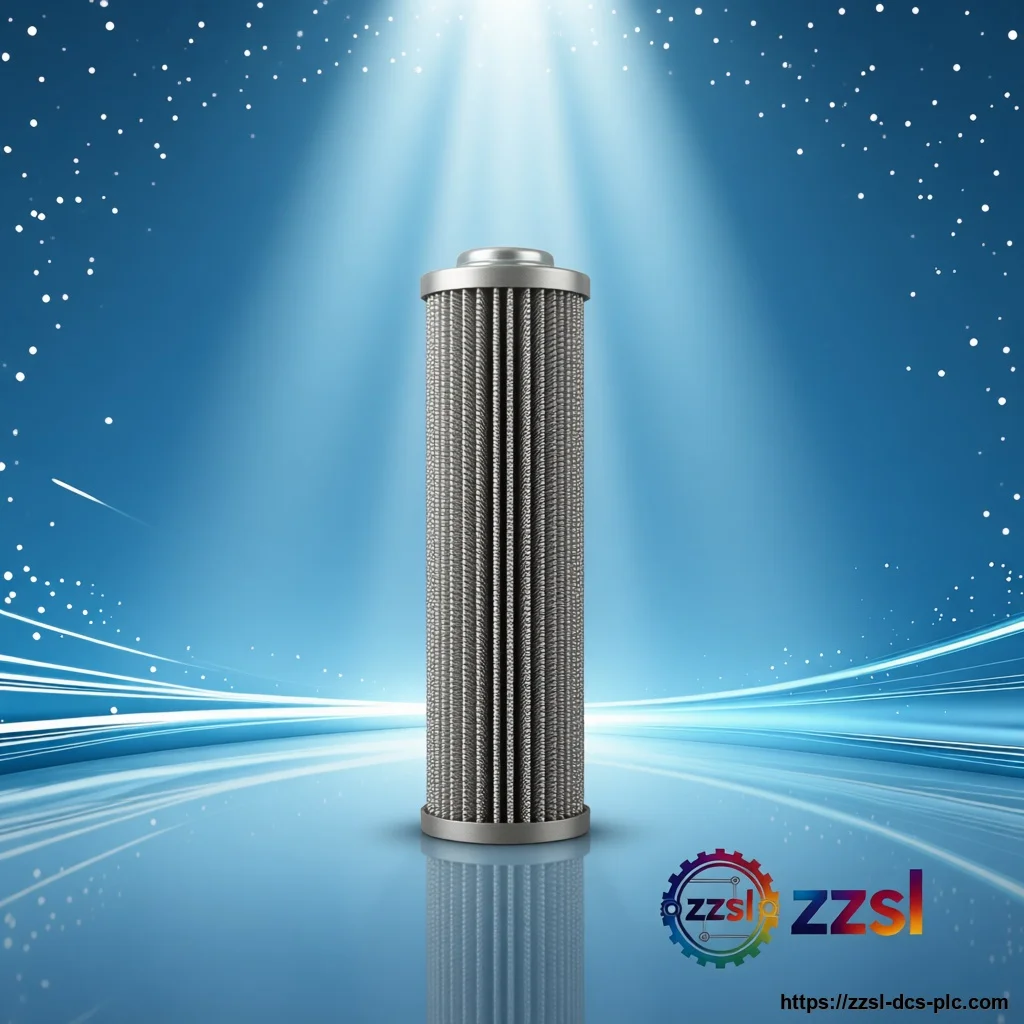

SGF-H60X40FC

Product Description

Home > Products > SJFILTER > Hydraulic Oil Filter Need SJFILTER SGF-H60X40FC? Hydraulic Oil Filter Element for Hydraulic systems, return line filtration. Supplied with full traceability and documentation.... Price & Availability Contact us for pricing / 询价 It features a nominal filtration rating of 60 microns and a flow capacity of 40 L/min, making it suitable for moderate-flow applications requiring reliable contaminant removal. The filter element is constructed with high-quality glass fiber or cellulose media, offering excellent dirt-holding capacity and low pressure drop, ensuring extended service life and optimal system protection. This filter is part of the SGF series, which is known for its robust construction and compatibility with various hydraulic fluids, including mineral oils, synthetic esters, and water-glycol mixtures. The SGF-H60X40FC is designed to be installed in return lines to filter out particles generated during operation, preventing premature wear of pumps, valves, and actuators. Its compact design allows for easy installation in tight spaces, and the filter head is available with optional bypass valve and indicator to monitor element condition. With a maximum operating pressure of 210 bar (21 MPa) and a temperature range of -30°C to +110°C, the SGF-H60X40FC is engineered for demanding industrial environments. It is commonly used in machine tools, construction machinery, injection molding machines, and other hydraulic systems where cleanliness is critical. The filter is manufactured under ISO 9001 quality standards, ensuring consistent performance and reliability. The SJFILTER SGF-H60X40FC is a high-performance hydraulic oil filter designed for return line filtration in industrial hydraulic systems. Basic Product Information Flow rate up to 40 L/min for moderate hydraulic systems Robust construction with glass fiber media for high dirt holding capacity Compatible with mineral oils, synthetic esters, and water-glycol fluids Operating pressure up to 210 bar (21 MPa) Wide temperature range from -30°C to +110°C Optional bypass valve and clogging indicator available ISO 9001 certified manufacturing for consistent quality High filtration efficiency with 60 micron nominal rating Technical Specifications Version & Model Difference The SGF-H60X40FC is part of the SGF series, which includes various filtration ratings (e.g., 10, 20, 40, 60 microns) and flow capacities. The 'H' in the model indicates a high-pressure application, while '60' denotes the micron rating and '40' the flow rate in L/min. The 'FC' suffix may indicate a specific connection type or media variant. Compared to other models in the series, this version is optimized for moderate flow and finer filtration, making it suitable for systems with sensitive components. Application Scenarios What is the maximum flow rate and operating pressure? The maximum flow rate is 40 L/min (10.6 GPM) and the maximum operating pressure is 210 bar (21 MPa), making it suitable for moderate-pressure hydraulic systems. Can this filter element be used with different hydraulic fluids? Yes, it is compatible with mineral oils, synthetic esters, and water-glycol fluids. However, always check seal compatibility; NBR seals are standard, but Viton seals are available for higher temperatures or aggressive fluids. How do I know when to replace the filter element? It is recommended to monitor the pressure drop across the filter. If the filter housing is equipped with a clogging indicator, replace the element when the indicator signals. Alternatively, follow the manufacturer's maintenance schedule based on operating hours and system cleanliness requirements. What is the filtration rating of the SJFILTER SGF-H60X40FC? The SGF-H60X40FC has a nominal filtration rating of 60 microns, suitable for removing larger particles from hydraulic fluid to protect system components. SJFILTER TF-100X180L-C Hydraulic Filter SJFILTER FILTER SGF-H60X40FC SJFILTER TF-100X180L-C Hydraulic Oil Filter (TF-100X180L-C)
