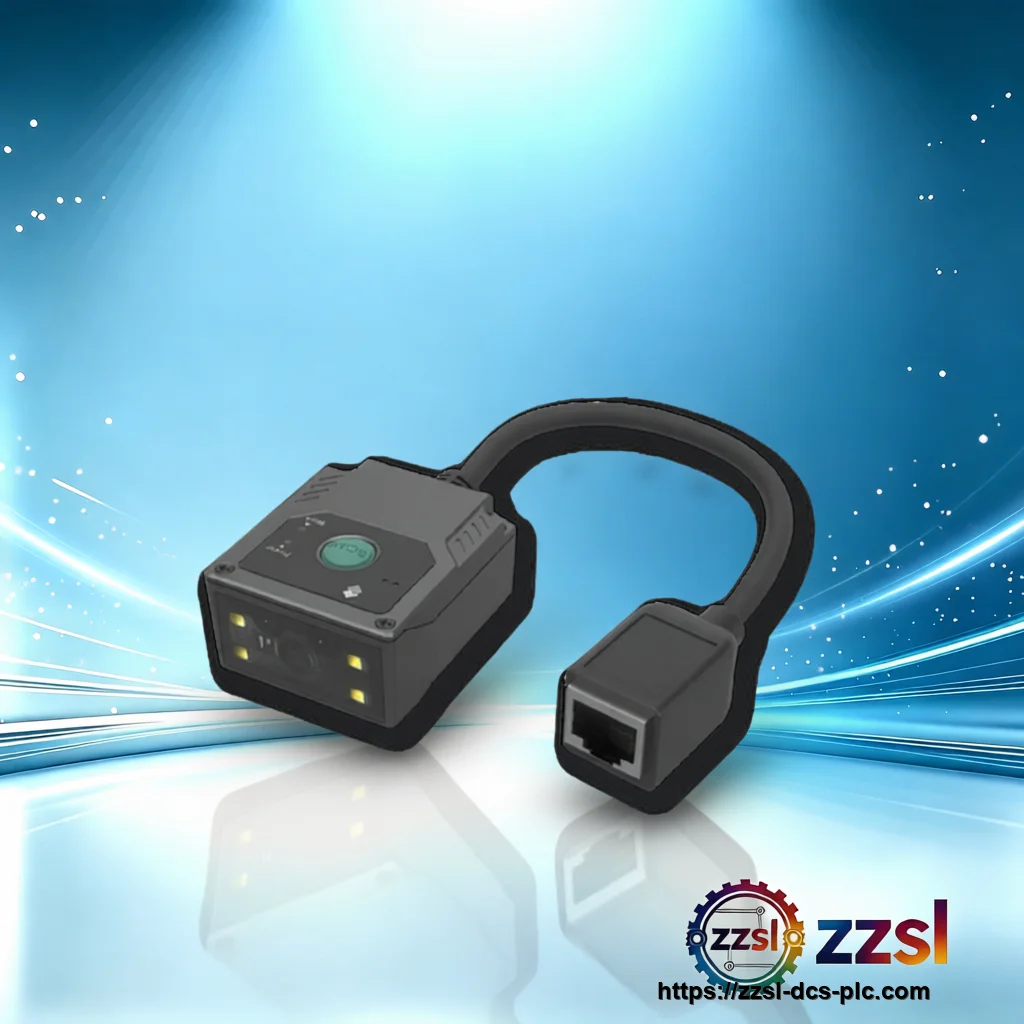

SCANNERMODEL-FM430NEWLAND
Newland Fixed Mount Barcode Scanner FM430
Other Brands
Newland Fixed Mount Barcode Scanner FM430
Home > Products > Newland > Barcode Scanners Need Newland FM430? Fixed Mount Barcode Scanner for Industrial Automation, Logistics, Manufacturing. Supp…
Contact us for current availability and best price of SCANNERMODEL-FM430NEWLAND.
Specifications
| Brand | Newland |
|---|---|
| Model Number | FM430 |
| Official Product Name | FM430 Fixed Industrial Barcode Scanner |
| Applicable System | Industrial Automation, Logistics, Manufacturing |
| Product Type | Fixed Mount Barcode Scanner |
| Equivalent Standard | ISO/IEC 15416 (barcode quality), IP65 (protection) |
| Product Status | In Stock |
| Processor | 1.2 GHz ARM Cortex-A9 |
| Decode Speed | Up to 30 frames per second |
| Reading Range | 50 mm to 500 mm (depending on code density) |
| Field of View | Horizontal: 40°, Vertical: 30° |
| Minimum Resolution | 0.127 mm (5 mil) for 1D, 0.254 mm (10 mil) for 2D |
| Interfaces | RS-232, USB 2.0, Ethernet 10/100M |
| Industrial Protocols | TCP/IP, Modbus TCP, PROFINET, EtherNet/IP |
| I/O Ports | 2 inputs, 2 outputs (optocoupled) |
| Protection Rating | IP65 |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Shock Resistance | 5G (per IEC 60068-2-27) |
| Image Sensor | 1.3 Megapixel Global Shutter CMOS |
Product Description
It features a 1.2 GHz CPU and a 1.3-megapixel global shutter image sensor, enabling rapid decoding of 1D and 2D barcodes, including damaged or low-contrast codes. With a reading range of up to 500 mm and a wide field of view, the FM430 excels in conveyor belt scanning, assembly line tracking, and automated sorting applications. Built to withstand harsh conditions, the FM430 boasts an IP65-rated aluminum housing, operating temperatures from -20°C to 60°C, and 5G shock resistance. It supports multiple interfaces (RS-232, USB, Ethernet) and industrial protocols like TCP/IP, Modbus, and PROFINET, ensuring seamless integration into existing PLC and SCADA systems. The scanner also offers flexible I/O ports for trigger inputs and result outputs, making it a versatile choice for automated workstations. The FM430 is equipped with Newland's advanced decoding algorithm, capable of reading dense or reflective codes at speeds up to 30 frames per second. Its built-in LED illumination and aiming system simplify installation and alignment. With optional liquid lens auto-focus models, the FM430 adapts to varying distances without manual adjustment, reducing downtime and improving throughput. This scanner is a reliable, long-term solution for modern smart factories. The Newland FM430 is a high-performance fixed-mount barcode scanner engineered for industrial automation environments.
Basic Product Information
- 1.3 MP global shutter sensor for blur-free reading of moving codes
- IP65 industrial housing, withstands dust and water jets
- Multiple interfaces: RS-232, USB, Ethernet (TCP/IP, Modbus, PROFINET)
- Wide operating temperature: -20°C to 60°C, 5G shock resistance
- Optional liquid lens auto-focus for dynamic reading distances
- High-speed decoding: 1.2 GHz CPU, 30 fps image capture
Technical Specifications
Version & Model Difference
The FM430 series includes several variants: FM430-10 (standard model with fixed focus), FM430-20 (with liquid lens auto-focus), and FM430-30 (with extended reading range for long-distance applications). The liquid lens version (FM430-20) allows software-controlled focus adjustment, ideal for applications where the distance to the barcode varies. The FM430-30 model uses a different lens assembly to achieve reading distances up to 1 meter. All versions share the same mechanical and electrical design, ensuring easy interchangeability.
Application Scenarios
