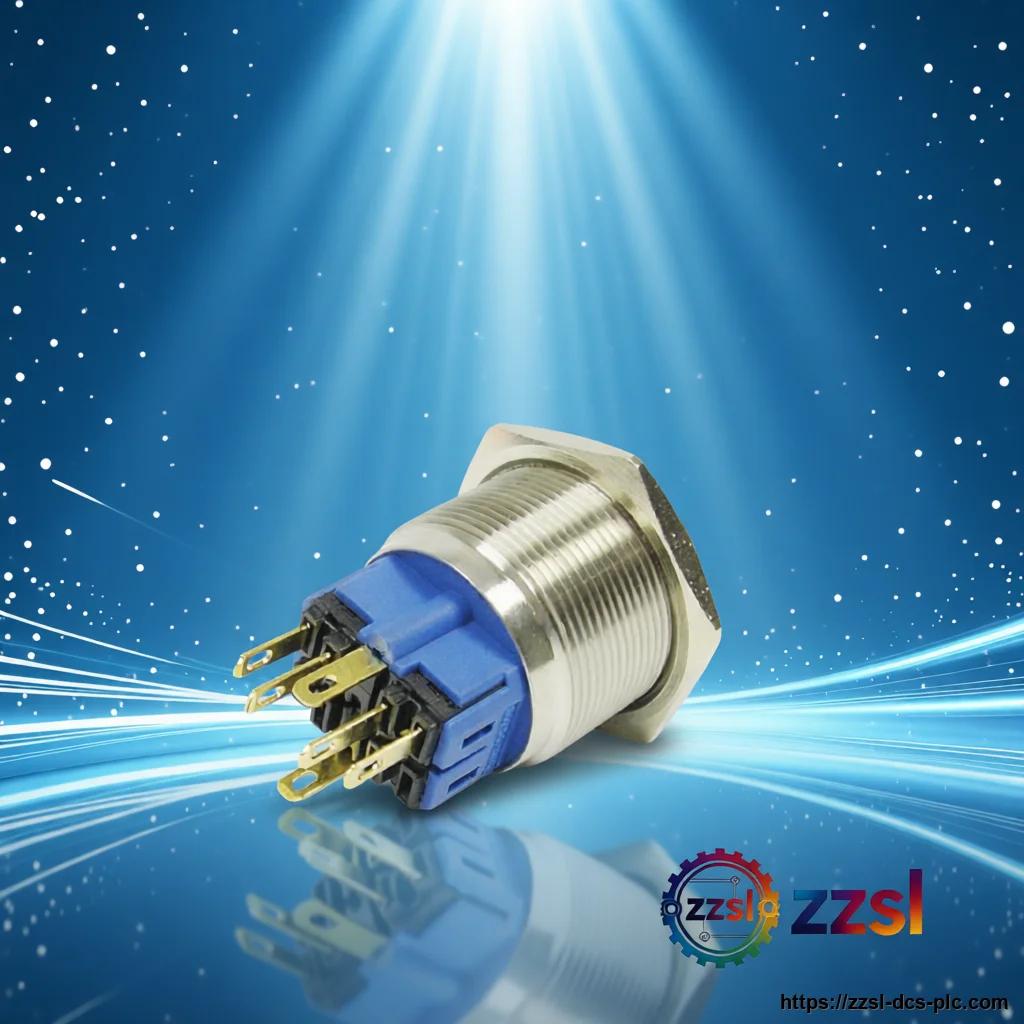

TILLow 22 mm Panel-Mount Push Button Switch SAY7
Other Brands
TILLow 22 mm Panel-Mount Push Button Switch SAY7
Home > TILLow > Push Button Switches > SAY7 Need TILLow SAY7? 22 mm Panel-Mount Push Button Switch for Industrial Control Panels and Automation Equipm…
Contact us for current availability and best price of SAY7-Module.
Specifications
| Brand | TILLow |
|---|---|
| Model Number | SAY7 |
| Official Product Name | TILLow SAY7 Series Push Button Switch |
| Applicable System | Industrial Control Panels and Automation Equipment |
| Product Type | 22 mm Panel-Mount Push Button Switch |
| Equivalent Standard | Contact us for cross-reference and alternative models |
| Product Status | In Stock |
| Contact Configuration | 1NO + 1NC (DPST) |
| Rated Voltage / Current | AC 220 V / 5 A (resistive) |
| Operation Types | Momentary (self-reset) / Latching (self-lock) / Illuminated |
| Mechanical Life | >= 1,000,000 operations (typical for SAY7 series) |
| Protection Rating | IP65 (front side, typical) |
| Indicator Voltage | AC 220 V or DC 24 V (optional) |
| Mounting Hole | 22 mm (Phi22) |
Product Description
Variants include illuminated, self-resetting (momentary) and latching (maintained) actuators, as well as mushroom-head emergency-stop types. The series offers a 1NO+1NC contact configuration and is built for frequent operation in harsh environments. It is a cost-effective option within the common SAY7 / LAY37 push-button family. TILLow SAY7 is a 22 mm panel-mount push button switch series used for start/stop, mode selection and signalling in industrial control panels.
Basic Product Information
- 1NO + 1NC contact block (DPST) configuration
- Illuminated, momentary and latching operation options
- Mushroom-head emergency-stop versions available
- Rated AC 220 V / 5 A with IP65 front protection (typical)
- Standard 22 mm panel cutout for broad interchangeability
Technical Specifications
Version & Model Difference
SAY7 is a family of 22 mm push button switches. Variants differ by actuator style (flat head, mushroom head), illumination, operation mode (momentary vs latching) and contact arrangement. The base model shares dimensions with the LAY37 / LA39 series for cross-replacement. Confirm actuator colour, voltage and latching requirement when ordering.
Application Scenarios
- Start/stop and reset controls on machine tools
- Emergency-stop stations with mushroom-head actuators
- Signal and status indication on automation control cabinets
Frequently Asked Questions
What mounting size does the SAY7 use?
The SAY7 series uses a standard 22 mm (Phi22) panel cutout, making it interchangeable with most 22 mm industrial push-button families.
What contact configuration is standard?
The standard SAY7 contact block is 1NO + 1NC (DPST), suitable for most start/stop and signalling circuits.
Is the SAY7 available as an emergency stop?
Yes, mushroom-head illuminated and latching emergency-stop versions exist within the SAY7 family.
Can I get an illuminated version?
Illuminated SAY7 push buttons are available with AC 220 V or DC 24 V indicator options. Specify voltage and colour when ordering.
