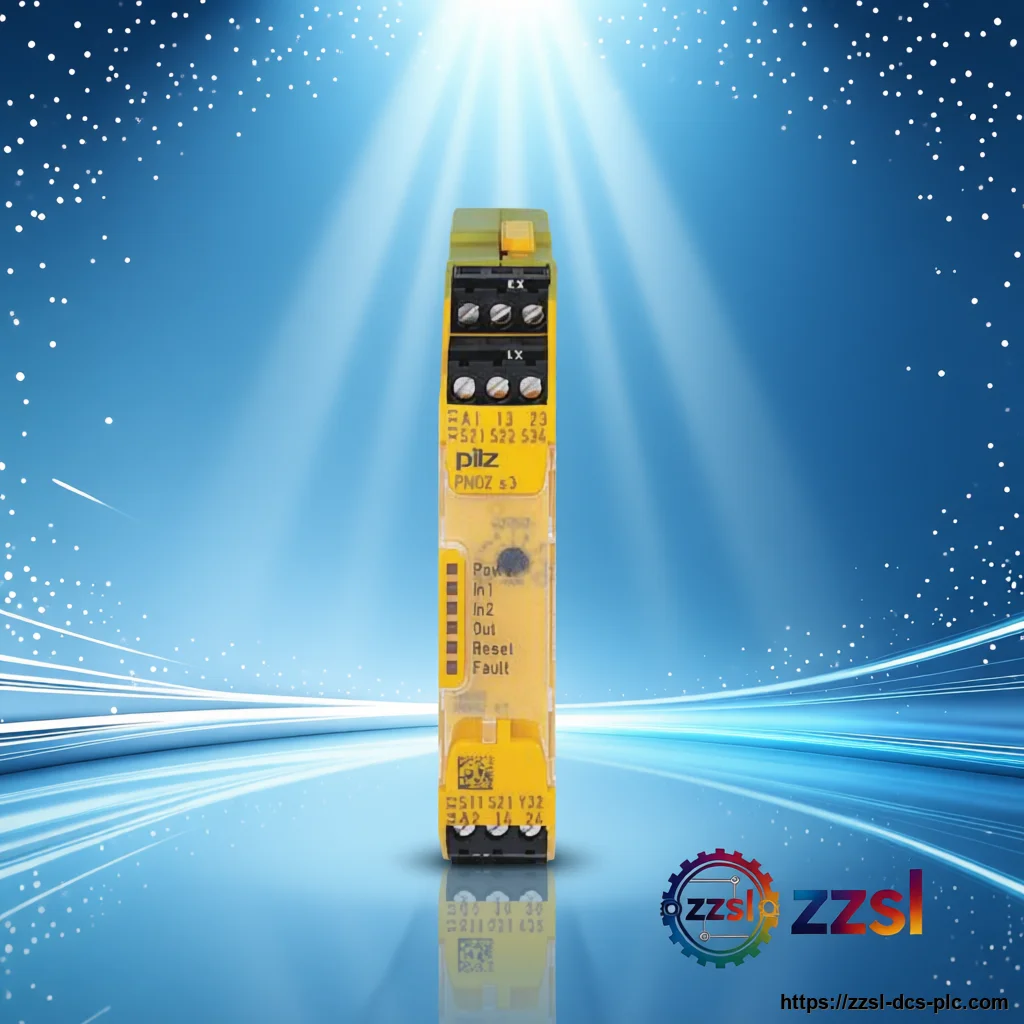

PILZ Safety Relay RELAY,PNOZ S3 750 103,PILZ
RELAYPNOZ-S3-750-103PILZ
Other Brands
PILZ Safety Relay RELAY,PNOZ S3 750 103,PILZ
['Home', 'Safety Relays', 'PNOZsigma', 'Pilz PNOZ s3 750103'] Need PILZ RELAY,PNOZ S3 750 103,PILZ? Safety Relay for Ma…
Specifications
| Brand | Pilz |
|---|---|
| Model Number | 750103 (PNOZ s3) |
| Official Product Name | Pilz PNOZ s3 750103 Safety Relay |
| Applicable System | Machine safety (E-stop, safety gates, light beams) |
| Product Type | Safety Relay (PNOZsigma) |
| Equivalent Standard | EN ISO 13849 Cat 4 / PL e, IEC 62061 SIL 3, EN 60204 |
| Product Status | Active |
| Number of Inputs | 3 (2 channels + start + feedback) |
| Number of Outputs | 3 (2 safety N/O + 1 semiconductor) |
| Safety Contacts | 2 N/O, instantaneous |
| Contact Rating | 6 A at 240VAC / 24VDC |
| Safety Category | Cat 4, PL e, SIL 3 |
| Operating Temperature | -10 to 55 deg C |
| Mounting | DIN rail |
| Dimensions | 98 x 17.5 x 120 mm |
| Protection | IP40 (front), IP20 (terminals) |
| Weight | 151.36 g |
| Approvals | CCC, CE, EAC, KOSHA, TUV, cULus |
| Supply Voltage | 24 VDC |
Product Description
750103) is a compact safety relay from the PNOZsigma family, designed for monitoring emergency stop, safety gates and light beam devices. Powered by 24VDC, it provides two safety N/O instantaneous contacts plus one semiconductor output, achieving Safety Category 4, Performance Level e (PL e) and SIL 3 per EN ISO 13849 and IEC 62061. With a slim 17.5 mm width for DIN rail mounting, it is a cost-effective, certified solution for machine safety circuits. The Pilz PNOZ s3 (order no.
Basic Product Information
- 2 safety N/O instantaneous contacts plus 1 semiconductor output
- Achieves Cat 4, PL e and SIL 3 per EN ISO 13849 / IEC 62061
- Slim 17.5 mm DIN rail housing (98 x 17.5 x 120 mm)
- Certified to CCC, CE, EAC, KOSHA, TUV and cULus
- 24VDC supply with -15% / +10% voltage tolerance
Technical Specifications
Version & Model Difference
Within the PNOZ s3 family, the 750103 is the 24VDC base unit; the 751103 is a closely related 24VDC sister model with slightly different internal configuration per the operating manual. Broader PNOZsigma options (s1, s2, s4, s5, s7, s11) cover different I/O counts and supply voltages.
Application Scenarios
- Emergency stop (E-stop) monitoring circuits
- Safety gate and guard interlock monitoring
- Light beam and safety curtain evaluation
- Machine safety per ISO 13849 and IEC 62061
- Pilz 774314 PNOZ X3 Safety Relay
- PILZ PNOZ S3 750 103 Safety Relay
Frequently Asked Questions
What safety rating does the Pilz PNOZ s3 750103 achieve?
It achieves Safety Category 4, Performance Level e (PL e) and SIL 3 according to EN ISO 13849 and IEC 62061, providing 2 safety N/O contacts plus 1 semiconductor output.
What supply voltage does the PNOZ s3 750103 require?
It operates on 24VDC with a tolerance of -15% to +10% and is designed for DIN rail mounting inside control cabinets.
What applications is the PNOZ s3 safety relay used for?
It is used for emergency stop monitoring, safety gate and interlock supervision, and light beam evaluation in machine safety systems.
Is the Pilz 750103 currently available?
Yes, the PNOZ s3 750103 is an active, commercially available safety relay. Contact us for exact specifications, pricing and lead time.
