PULS 3-phase DIN-rail power supply QT40.361.D1
Other Brands

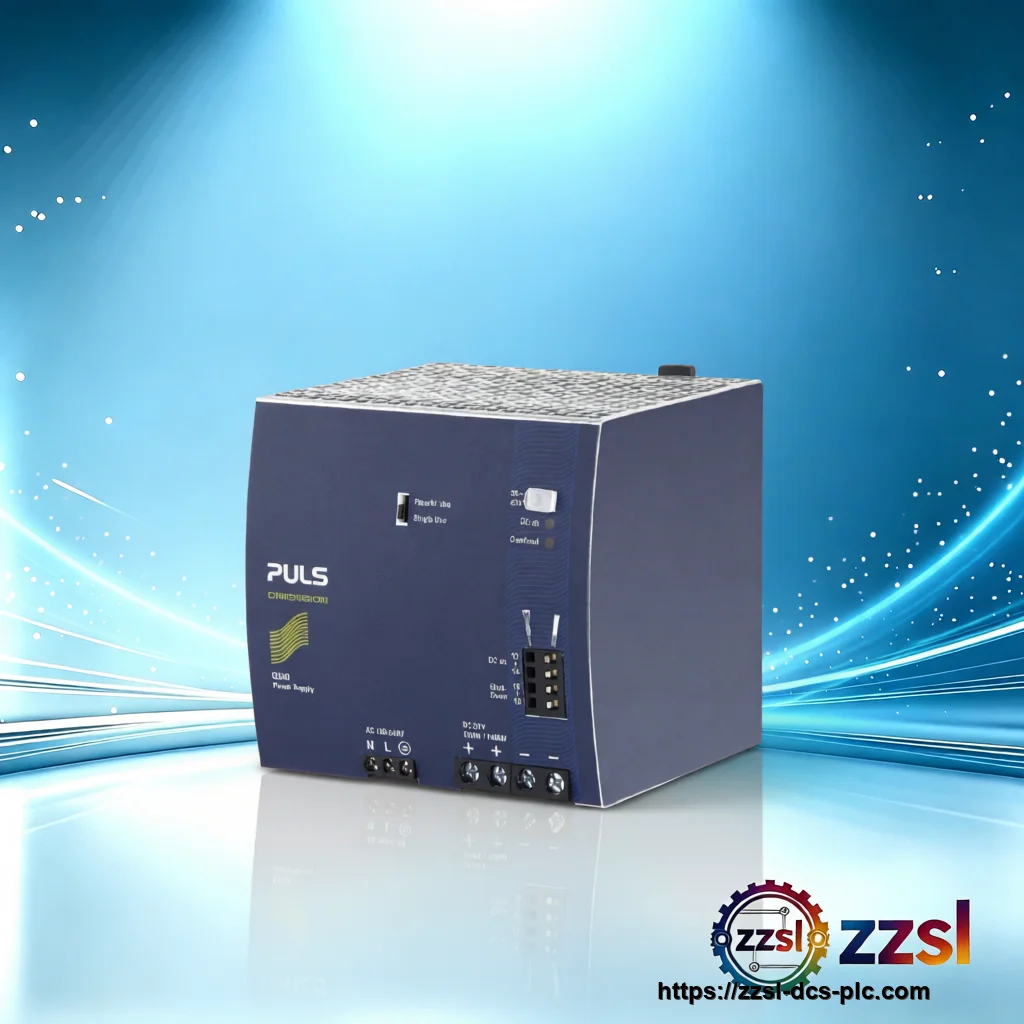

PULS 3-phase DIN-rail power supply QT40.361.D1
Home / Power Supplies / DIN-Rail / PULS QT40.361.D1 Need PULS QT40.361.D1? 3-phase DIN-rail power supply for Industrial control panel power distribution. Suppl…
Specifications
| Brand | PULS |
|---|---|
| Model Number | QT40.361.D1 |
| Official Product Name | QT40.361.D1 3-phase DIN-rail power supply |
| Applicable System | Industrial control panel power distribution |
| Product Type | 3-phase DIN-rail power supply |
| Equivalent Standard | IEC 61010-2-201, UL 61010-2-201, CE |
| Product Status | Active |
| Lifecycle note | Commercialized |
| Input | 3-phase AC 380-480 V (-15%/+20%) |
| Output voltage | 36 V DC (adjustable 36-42 V) |
| Output current | 26.7 A at 36 V / 22.9 A at 42 V |
| Output power | 960 W (1440 W for up to 4 s) |
| Efficiency | 95.3% |
| Dimensions (W x H x D) | 110 mm x 124 mm x 127 mm |
| Weight | 1500 g |
| Operating temperature | -25 to +70 C (derated above +60 C) |
| Standards | IEC 61010-2-201, UL 61010-2-201, CE |
| Series | DIMENSION Q |
Product Description
Basic Product Information
- 36 V DC output at 26.7 A (960 W continuous)
- 95.3% efficiency for low heat and energy use
- Compact 110 mm width DIN-rail mount
- 3-phase wide-range AC input for industrial sites
Technical Specifications
Version & Model Difference
- ['QT40.361.D1 is the 36 V version', 'QT40.241 is the 24 V version; QT40.481 is 48 V', 'DIMENSION Q adds BonusPower and DC-OK relay']
Application Scenarios
- Industrial control panels
- High-power DC drive and motor supply
- Process skid power distribution
