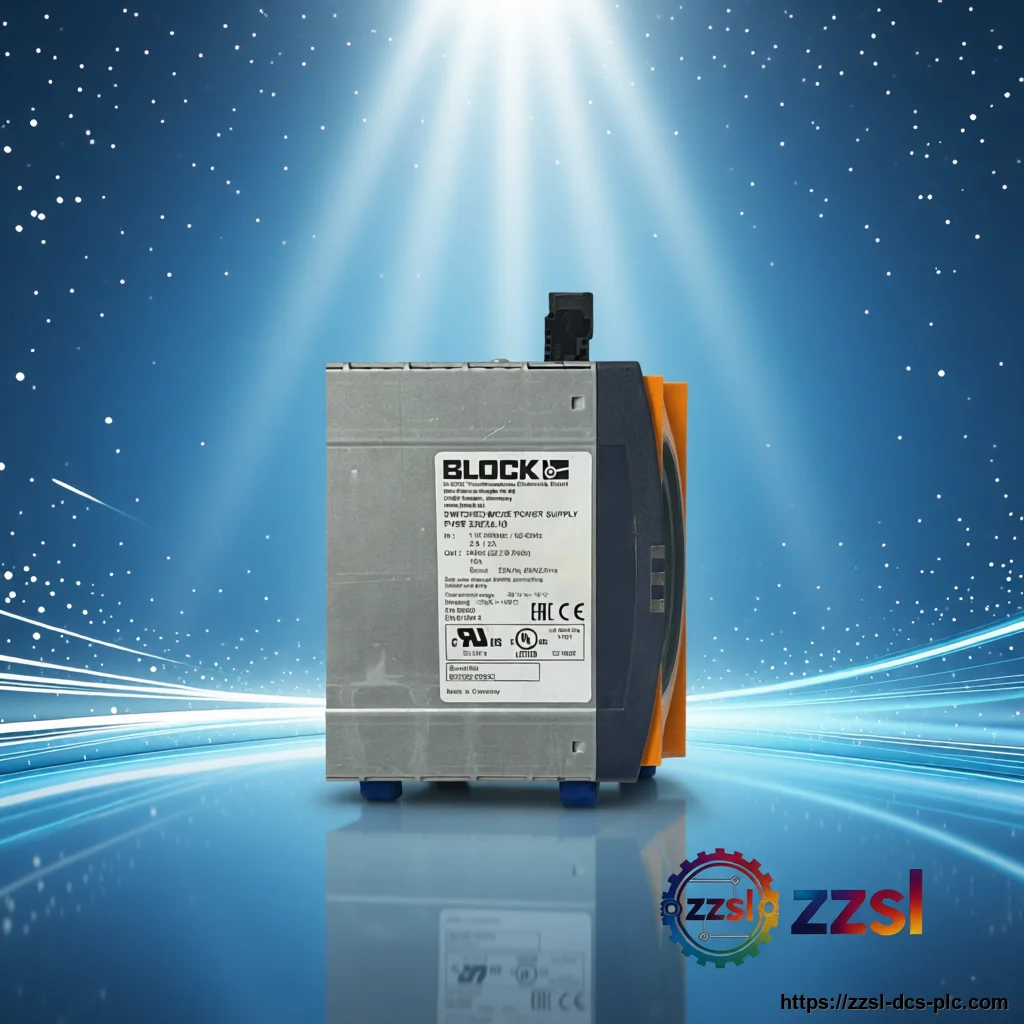

BLOCK Power Supply PVSE 230/24-10
Home > Products > BLOCK > Power Supplies Need BLOCK PVSE 230/24-10? Power Supply for Industrial control systems, automation, process control. Supplied…
Specifications
| Brand | BLOCK |
|---|---|
| Model Number | PVSE 230/24-10 |
| Official Product Name | Primary Switched-Mode Power Supply |
| Applicable System | Industrial control systems, automation, process control |
| Product Type | Power Supply (24V DC) |
| Equivalent Standard | IEC/EN 61204-3, EN 61000-6-2, EN 61000-6-4 |
| Product Status | In Stock |
| Input Frequency | 50-60 Hz |
| Output Voltage | 24 V DC (adjustable ±10%) |
| Output Current | 10 A |
| Output Power | 240 W |
| Efficiency | >90% at nominal load |
| Operating Temperature | -25°C to +70°C (derating above +60°C) |
| Protection Class | IP20 |
| Dimensions (W x H x D) | Approx. 60 x 130 x 125 mm |
| Weight | Approx. 0.8 kg |
| Mounting | DIN rail (35 mm) |
| Connections | Screw terminals |
| Input Voltage | 100-240 V AC (wide range) |
Product Description
It delivers a continuous output current of 10 A, providing 240 W of power, making it suitable for a variety of industrial automation applications. The unit features a compact metal housing with a protective rating of IP20, allowing for installation in control cabinets and electrical enclosures. This power supply is engineered for high efficiency (typically >90%) and low power dissipation, contributing to energy savings and reduced heat generation within the control cabinet. It offers a wide operating temperature range from -25°C to +70°C (with derating above +60°C), ensuring reliable performance in demanding industrial environments. The device includes protection features such as overload, short-circuit, and overvoltage protection, enhancing system safety and longevity. The PVSE 230/24-10 is designed for DIN rail mounting (35 mm) and features screw terminals for secure wiring. It is CE marked and complies with relevant European directives, including low voltage and EMC standards. This power supply is an ideal choice for powering PLCs, sensors, actuators, and other 24 V DC loads in industrial control systems, offering stable and reliable power delivery. The BLOCK PVSE 230/24-10 is a primary switched-mode power supply from the PVSE series, designed to convert a wide-range AC input voltage (100-240 V AC) into a stabilized 24 V DC output.
Basic Product Information
- Stabilized 24 V DC output, 10 A (240 W)
- High efficiency >90%
- Compact metal housing, IP20
- DIN rail mounting (35 mm)
- Overload, short-circuit, and overvoltage protection
- Operating temperature -25°C to +70°C
- CE marked, complies with EMC and low voltage directives
- Wide-range input 100-240 V AC
Technical Specifications
Version & Model Difference
The PVSE series includes various models with different output voltages and currents. The PVSE 230/24-10 is a 24V/10A version. Other versions include PVSE 230/24-5 (5A), PVSE 230/24-20 (20A), and PVSE 230/12-10 (12V/10A). The main differences are output power and current ratings, which affect physical size and mounting options. The PVSE series is known for its compact design and high efficiency across all models.
Application Scenarios
- BLOCK PVRE 24/24-20 DC-UPS Module
